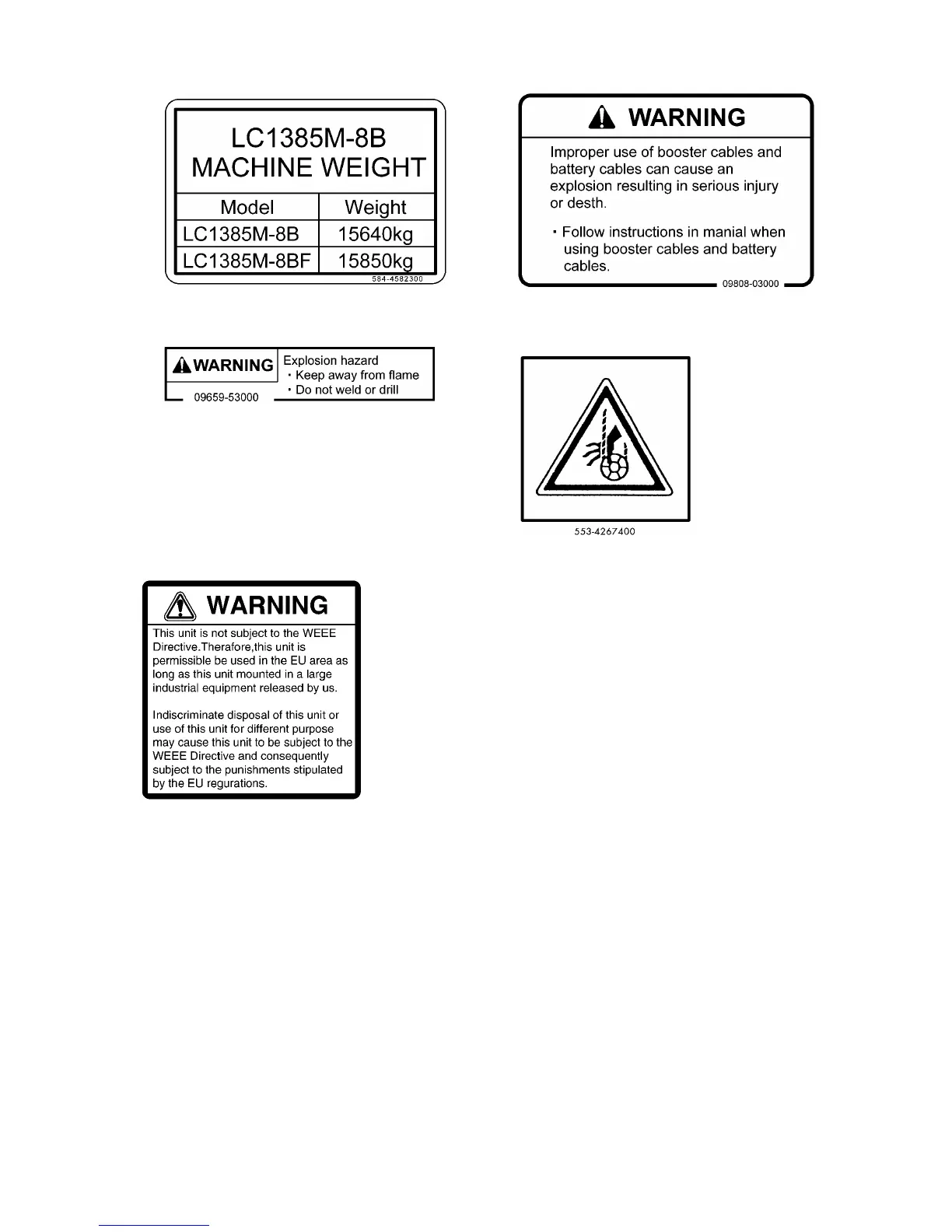

(36) Machine Weight (584-4582300) (37) Warning for battery cable (098808-03000)
(38) Warning for Accumulator (09659-53000) (39) Warning for Hook Block (553-4267400)
(40) WEEE DERECTIVE LABEL (104-4549500) (14 places)
[LOCATIONS OF WEEE DIRECTIVE LABELS]
(A) Top of relay box
(B) Side of the moment limiter converter
(C) Back side of the monitor display
(D) Side of the moment limiter display
(E) Top of the air conditioner controller
(F) Top of the pump controller
(G) Top of monitor camera
(H) Top of the working status lamp
(J) Top of the battery (2 places)
(K) Top of the inclination sensor
(L) Top of the boom length detector
(M) Top of the boom angle detector
(N) Top of the engine controller
