NOTES
The colours lighting up the monitors related to the emergency stop items, caution items, and basic
check items are as follows.
Type of monitor
Color when lit up
When normal
When abnormal
At low
temperature
(1)
Engine coolant temperature monitor
Blue
Red
White
(2)
Hydraulic oil temperature monitor
Blue
Red
White
(3)
Fuel level monitor
Blue
Red
--
(4)
Charge level monitor
OFF
Red
--
(5)
Engine oil pressure monitor
OFF
Red
--
(6)
Engine oil level monitor
OFF
Red
--
(7)
Maintenance interval monitor
OFF
Red
--

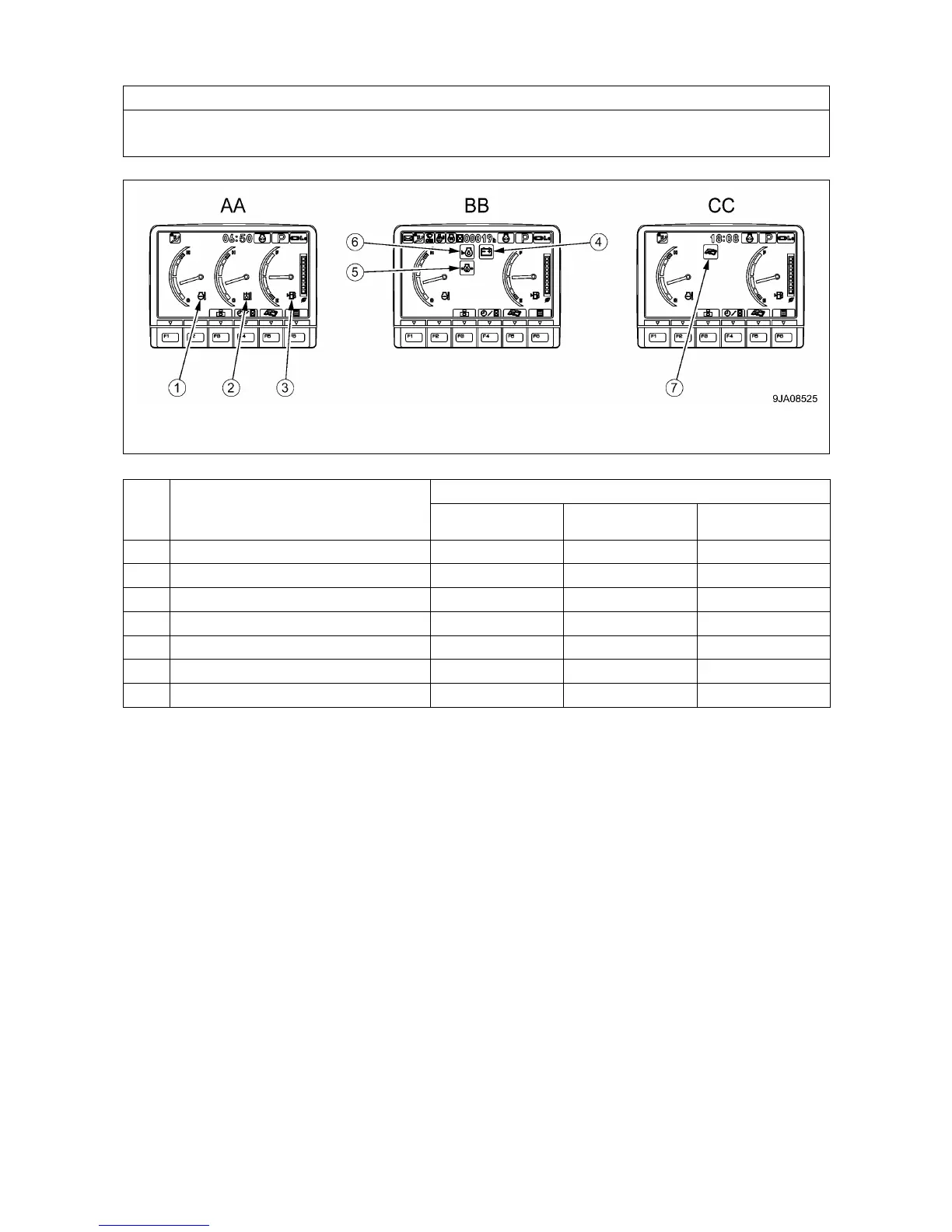

AA: Standard screen BB: All lamps lit up screen CC: Maintenance interval warning screen
