Dwell Function
The Dwell Function is used to temporarily hold the output frequency at a set reference for a set time.
This function can be used when driving a motor with a heavy starting load. This pause in
acceleration reduces traditionally high starting current. Enable by setting H1-01 ~ 06 to 65.
NOTE: This function should not be used for hoists.

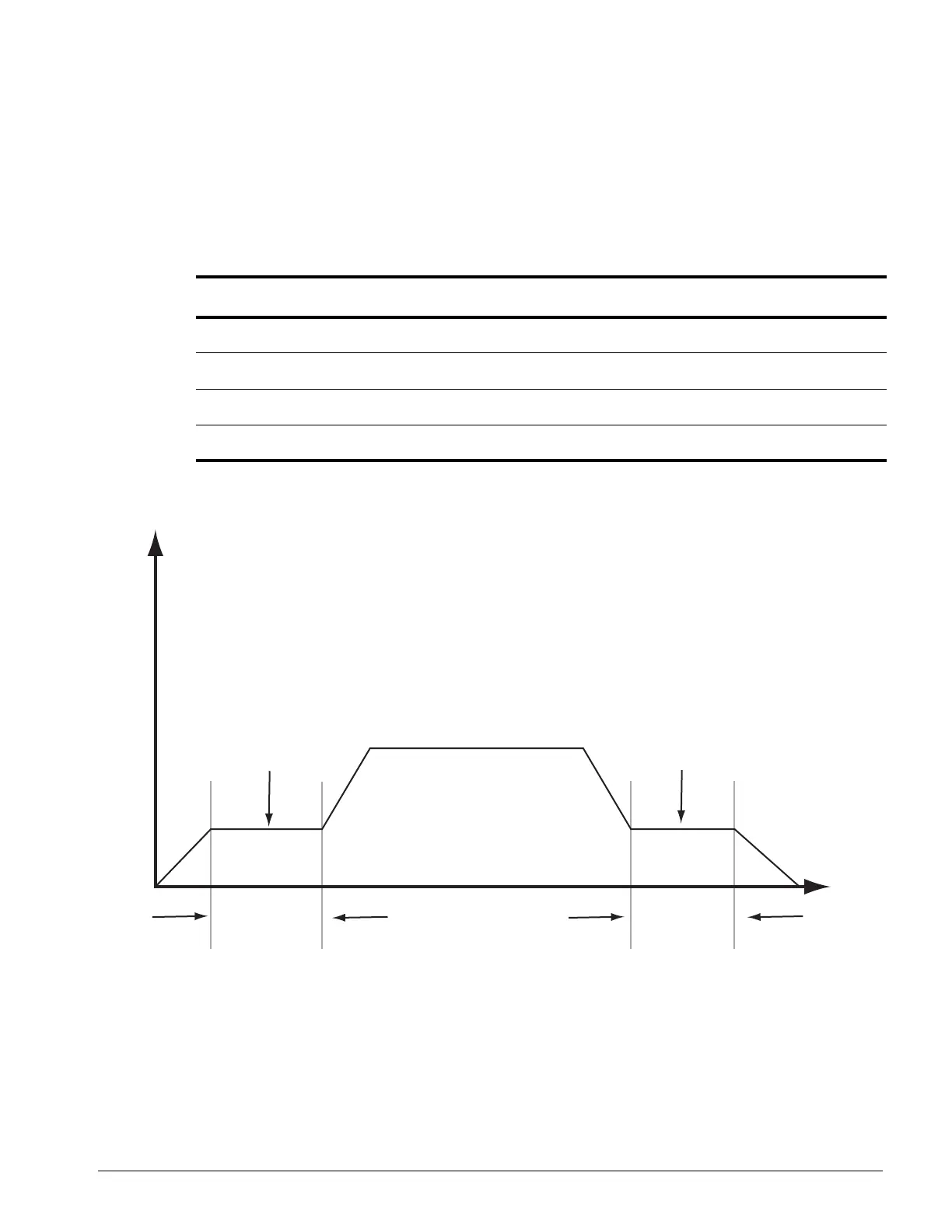

Figure 5-29: Dwell Function
Parameter
Code Display Function Range Initial Value
Access
Level
D8-01 Dwell Ref @ Start Sets Dwell frequency
reference at start.
0.0–150.0 Hz 0.0 Adv
D8-02 Dwell Time @ Start Sets the time duration for the
Dwell function at start.
0.0–10.0 sec 0.0 Adv
D8-03 Dwell Ref @ Stop Sets dwell frequency
Reference at stop.
0.0–150.0 Hz 0.0 Adv
D8-04 Dwell Time @ Stop Sets the time duration for the
Dwell function at stop.
0.0–10.0 sec 0.0 Adv
Hz
D9-02
D9-04
D9-01
D9-03
Dwell Function
Tim
e
Speed
D8-01
D8-04
D8-03
D8-02
