IMPULSE•VG+ Series 3 Instruction Manual – 07/25/05
5-18
The Reverse Plug Simulation provides an automatic alternate deceleration time/acceleration time at
a change direction command. The deceleration time and the acceleration time are set independently
of the normal acceleration and deceleration times.

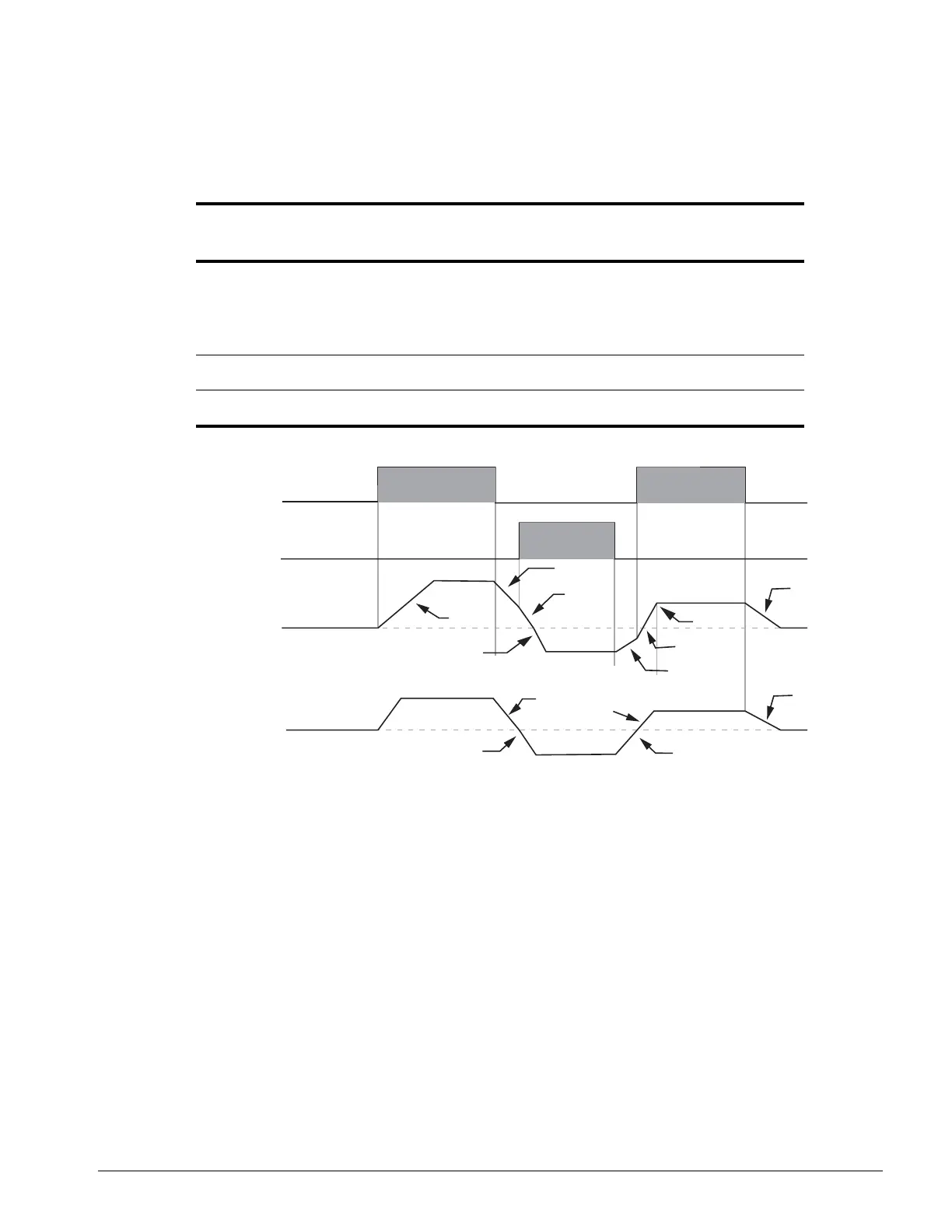

Figure 5-10: Reverse Plug Simulation
Parame
ter
Code Display Function Range Initial Value
Access
Level
C1-03 Reverse Plug 0/1 Determines whether
Reverse Plug Simulation is
enabled.
0Adv
0 Disabled
1 Enabled
C1-04 Rev-Plg Dec Time Deceleration time during
Reverse Plug Simulation.
0.0–25.5 sec 2.0 Adv
C1-05 Rev-Plg Acc Time Acceleration time during
Reverse Plug Simulation
0.0–25.5 sec 2.0 Adv
F
requency
O
utput
(
Reverse Plug)
F
requency
O
utput
(
Normal)
R
un (FWD)
C
ommand
R
un (REV)
C
ommand
B5-01
B5-02
C1-04
C1-05
C1-05
C1-04
B5-02
B5-02
B5-01
B5-01 B5-02
B5-0
2
B5-0
2
