Using the Keypad

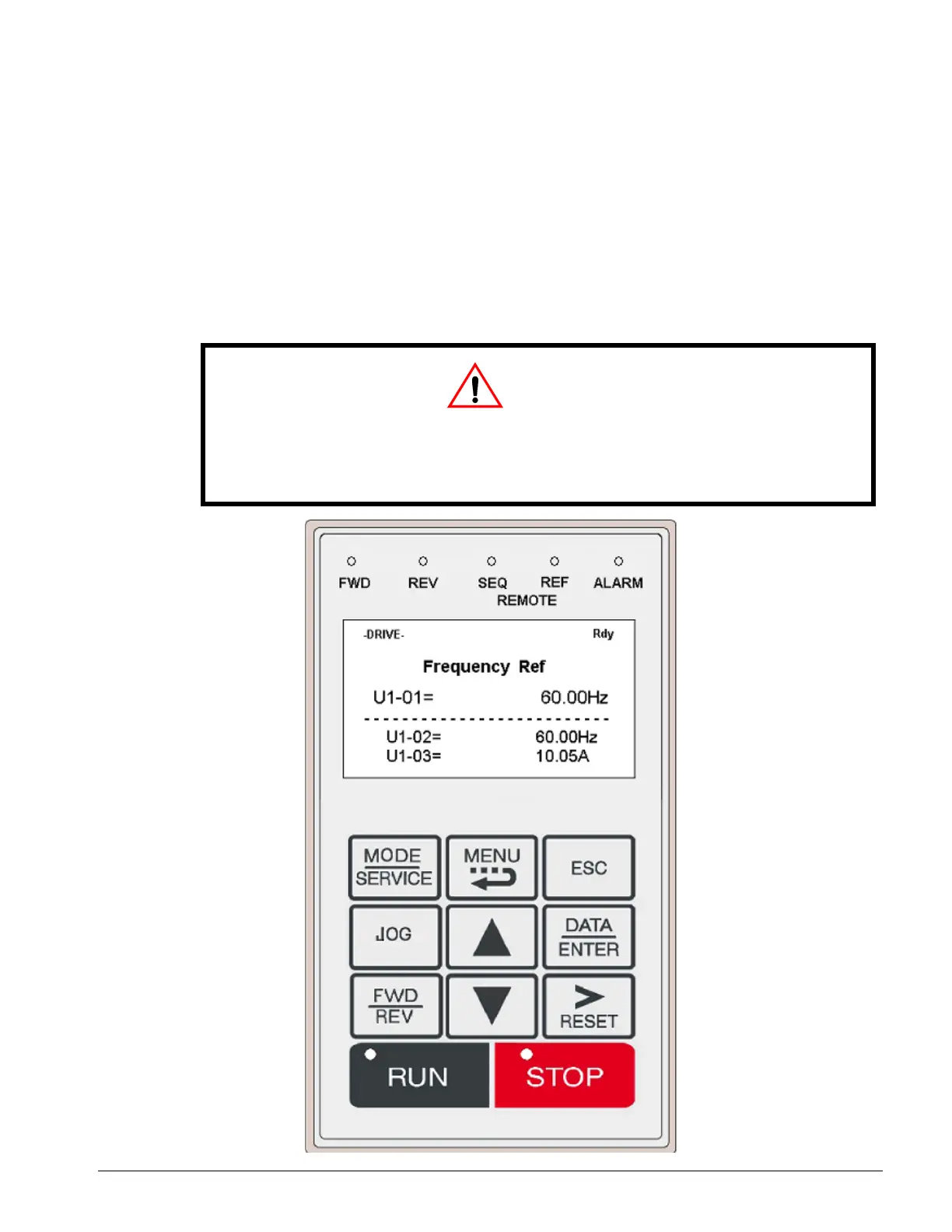

With five 16-character lines available, the keypad display makes it possible to view fault codes and
change parameter settings. Parameter settings, with their parameter codes, are displayed in most
cases. In addition, the parameter description is included on the top line of the display. The keypad
enables you to:
• Program the various drive parameters.
• Monitor the functions of the drive.
• Read alpha-numeric fault-diagnostic indications.
• Operate the drive using the keypad (local operation).
WARNING
Because of the additional potential hazards that are introduced when any drive is operated
locally, we advise you to avoid operating it this way. If you do operate the drive locally, be
aware that the crane or hoist will move when you press the RUN button. If you have questions,
contact Magnetek.
Frequency Ref
U1-01 = 6.00 HZ
U1-02 = 60.00 HZ
U1-03 = 10.6 HZ
RDY
DRIVE
