IMPULSE•VG+ Series 3 Instruction Manual – 07/25/05
5-8
Coast to Stop (B3-03=1)
Upon removal of the FWD or REV run command, the motor starts to coast and the electric brake
sets.

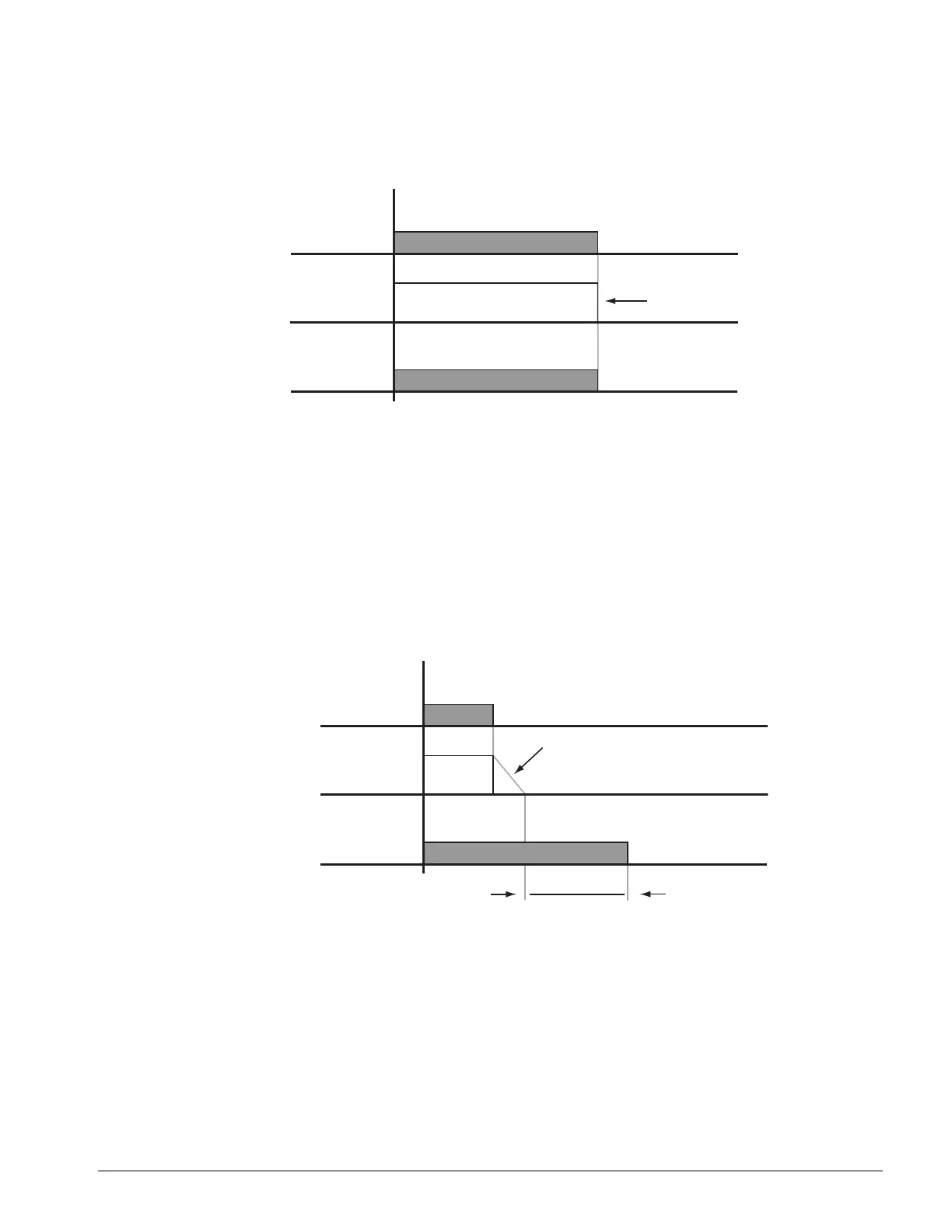

Figure 5-3: Coast to Stop
Decel w/Timer (B3-03=4)
(This option is only available in traverse motion). Upon run command removal, the motor
decelerates to stop. The brake delays for a time interval (C12-02) before it is set. This option reduces
brake wear for applications that involve frequent stopping and starting.
Figure 5-4: Decel w/Timer
Run
Command
Frequency
Output
Brake
Output
Base Block
Brake Set
Delay Time
(C12-02)
Decel Time
B5-02
R
un
C
ommand
F
requency
O
utput
B
rake
O
utput
