Acceleration/Deceleration
Acceleration time sets the time necessary for the output frequency to accelerate from 0Hz to
maximum output frequency (E1-04). Deceleration time sets the time necessary for the output
frequency to decelerate from the maximum output frequency (E1-04) to 0Hz.
NOTE: Assume the constant B3-03 is set to “0” (Decel to Stop).

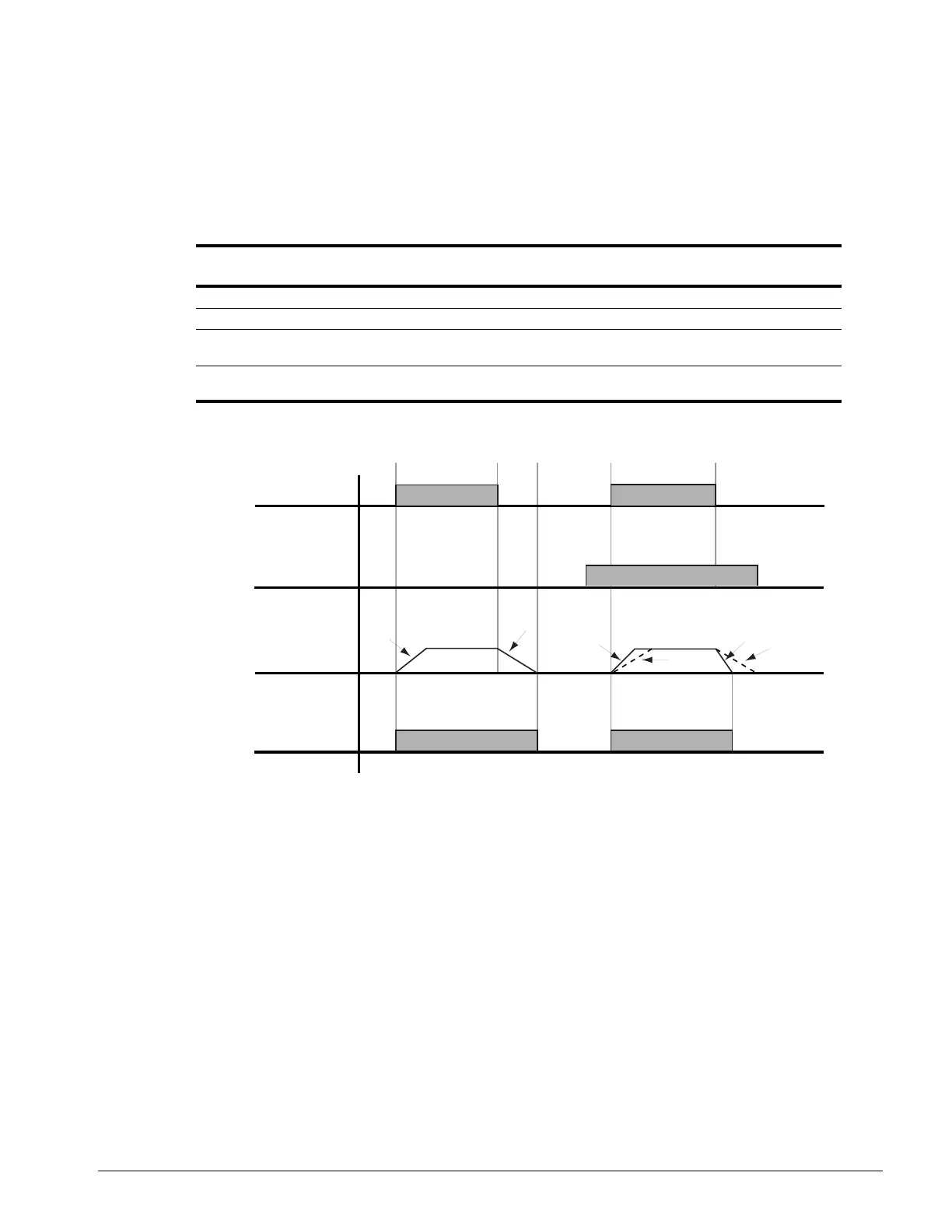

Figure 5-5: Normal Accel/Decel Time and Multiple Accel/Decel Changeover
Parameter
Code Display Function Range Initial Value
Access
Level
B5-01* Accel Time 1 Sets acceleration time. 0.0–25.5 sec 5.0 Adv
B5-02* Decel Time 1 Sets deceleration time. 0.0–25.5 sec 3.0 Adv
B5-03 Accel Time 2 Sets alternate accel. time.
Enabled by multifunction input=1A.
0.0–6000.0 sec 2.0 Adv
B5-04 Decel Time 2 Sets alternate decel. time.
Enabled by multi-function input=1A.
0.0–6000.0 sec 2.0 Adv
* Initial value is determined by X-Press Programming (Table 4.1 to 4.12).
B5-01
B5-03
B5-04
B5-02
B5-02
B5-01
B
rake Output
F
requency Output
A
ccel/Decel
C
hangeover
M
FI=IB (Multi
R
un Command
