IMPULSE•VG+ Series 3 Dimensions/Heat Loss—Open Chassis

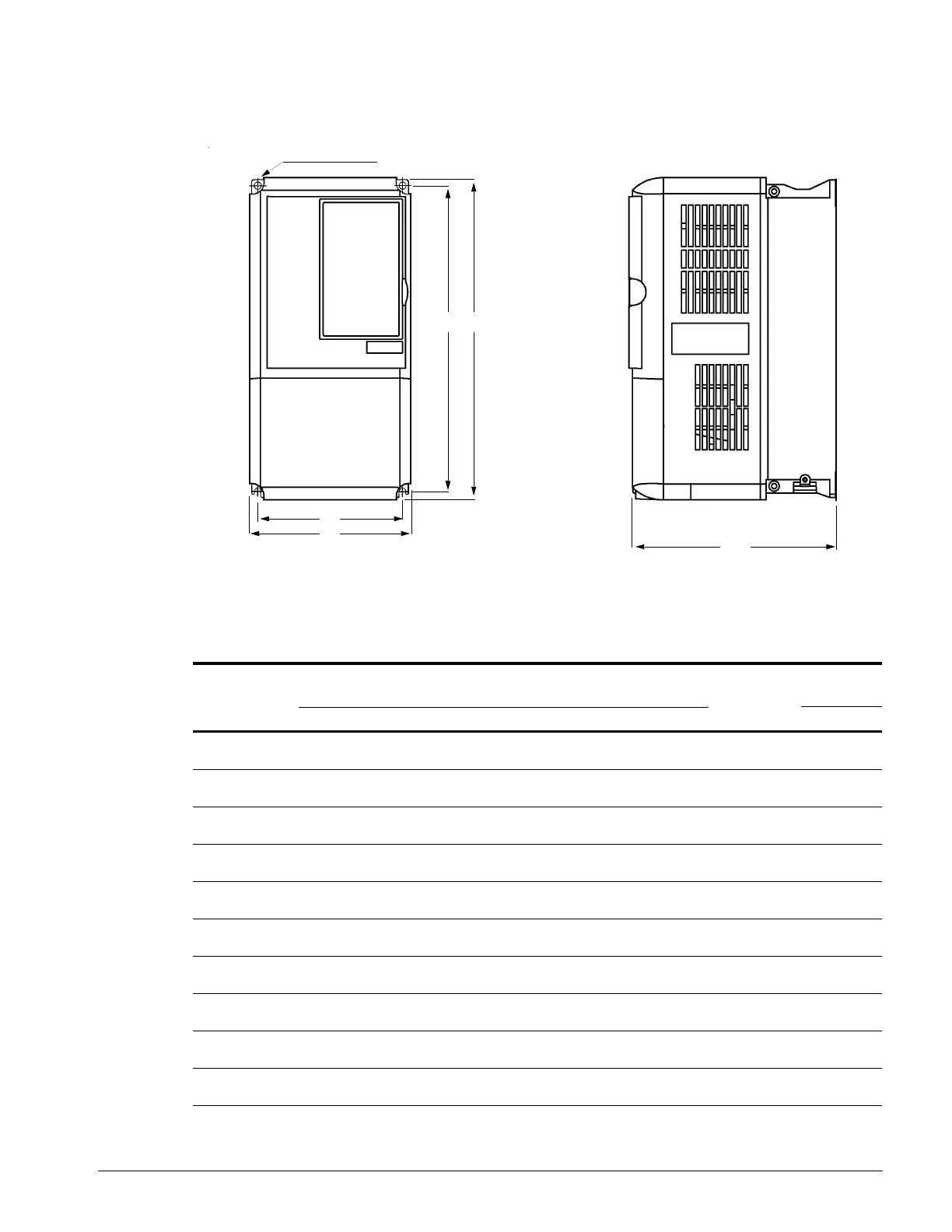

Figure 2-6: Open Chassis
NOTE: Some models are shipped with metal enclosures that can be removed and discarded.
230V Class
Overall Dimensions
in inches and (mm)
Mounting Dimensions
in inches and (mm)
Wt Lbs
Heat Loss
(W)
Model W H D W1 H1 H2 Total
2007-FVG+S3 5.51
(140)
11.02
(280)
6.30
(160)
4.95
(126)
10.47
(266)
0.28
(7)
6.6 98
2009-FVG+S3 5.51
(140)
11.02
(280)
6.30
(160)
4.95
(126)
10.47
(266)
0.28
(7)
6.6 127
2015-FVG+S3 5.51
(140)
11.02
(280)
7.09
(180)
4.95
(126)
10.47
(266)
0.28
(7)
8.8 134
2023-FVG+S3 5.51
(140)
11.02
(280)
7.09
(180)
4.95
(126)
10.47
(266)
0.28
(7)
8.8 184
2031-FVG+S3 7.87
(200)
11.81
(300)
7.87
(200)
7.32
(186)
11.22
(285)
0..28
(7)
13.2 332
2045-FVG+S3 7.87
(200)
12.20
(310)
7.87
(200)
7.32
(186)
11.22
(285)
0.28
(7)
15.4 525
2058-FVG+S3 9.45
(240)
13.78
(350)
8.27
(210)
8.50
(216)
13.19
(335)
0.30
(7.62)
24.2 598
2071-FVG+S3 9.45
(240)
14.96
(380)
8.27
(210)
8.50
(216)
13.19
(335)
0.30
(7.62)
24.2 680
2085-FVG+S3 10.0
(254)
21.06
(535)
10.24
(260)
7.68
(195)
15.16
(385)
0.30
(7.62)
53 835
2145-FVG+S3 14.76
(375)
23.62
(600)
11.81
(300)
9.84
(250)
22.64
(575)
0.49
(12.5)
125 1431
2215-FVG+S3 17.72
(450)
28.54
(725)
13.78
(350)
12.80
(325)
27.56
(700)
0.49
(12.5)
189 2207
Mounting Holes H2
H
H1
W
W1
D
