Delay Timers
This function is used in trolley or bridge applications. It can reduce the mechanical brake wear when the operator
tries to position a load. This function is available only in traverse mode and the constant B3-03 must be set to 4
(Ramp With Timer).

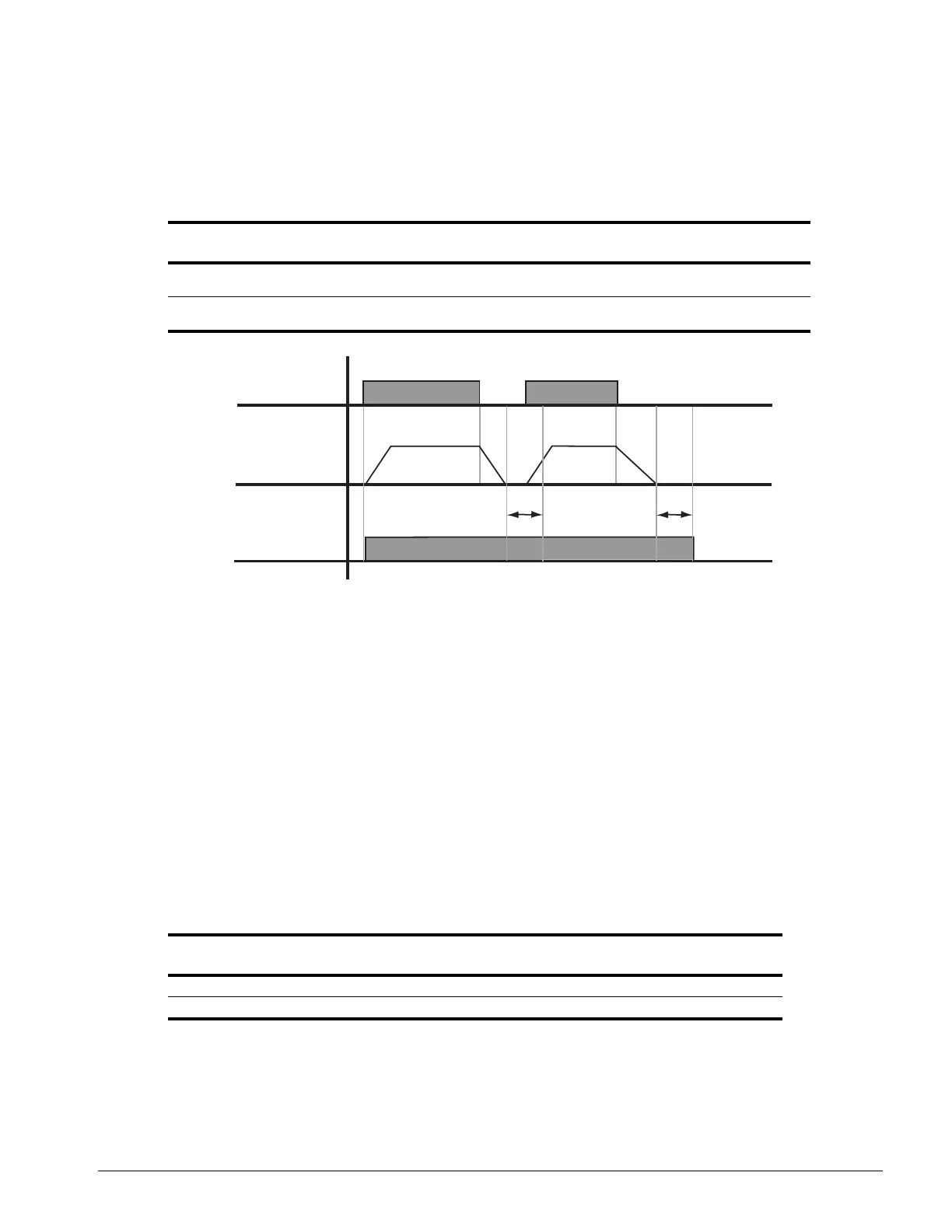

Figure 5-22: Brake Delay Timers
NOTE: The Jog control input is a multi-function input. It is enabled by programming data 15 or 16 in H1-
01~06.
Timer Function
• The timer function is enabled when the timer function input (setting: 43) and the timer function output
(setting: 12) are set for the multi-function input and multi-function output respectively.
• These inputs and output serve as general purpose I/O. Chattering of sensors, switches, contactors, etc., can
be prevented by setting a delay time.
• When the timer function input ON time is longer than the value set for C12-03 (Timer function ON-Delay
Time), the timer function output turns ON.
• When the timer function input OFF time is longer than the value set for C12-04 (Timer function OFF-Delay
Time), the timer function output turns OFF.
Parameter
Code Display Function Range Initial Value
Access
Level
C12-01
Brake Jog Delay Brake set delay time at Jog
Control input.
0.0–100.0 sec 0.0 sec Adv
C12-02
Brake Run Delay Brake set delay time at RUN
input.
0.0–100.0 sec 0.0 sec Adv
F
requency
O
utput
B
rake
C
ommand
Jog
Command
C12-01
C12-01
Parameter
Code Display Setting Range
Factory Default
Setting Access Level
C12-03
Delay-on timer 0.0~3000.0 0.0 Adv.
C12-04
Delay-off timer 0.0~3000.0 0.0 Adv.
