IMPULSE•VG+ Series 3 Instruction
Manual - 07/25/05
3-15
Encoder W
iring Diagrams and Information

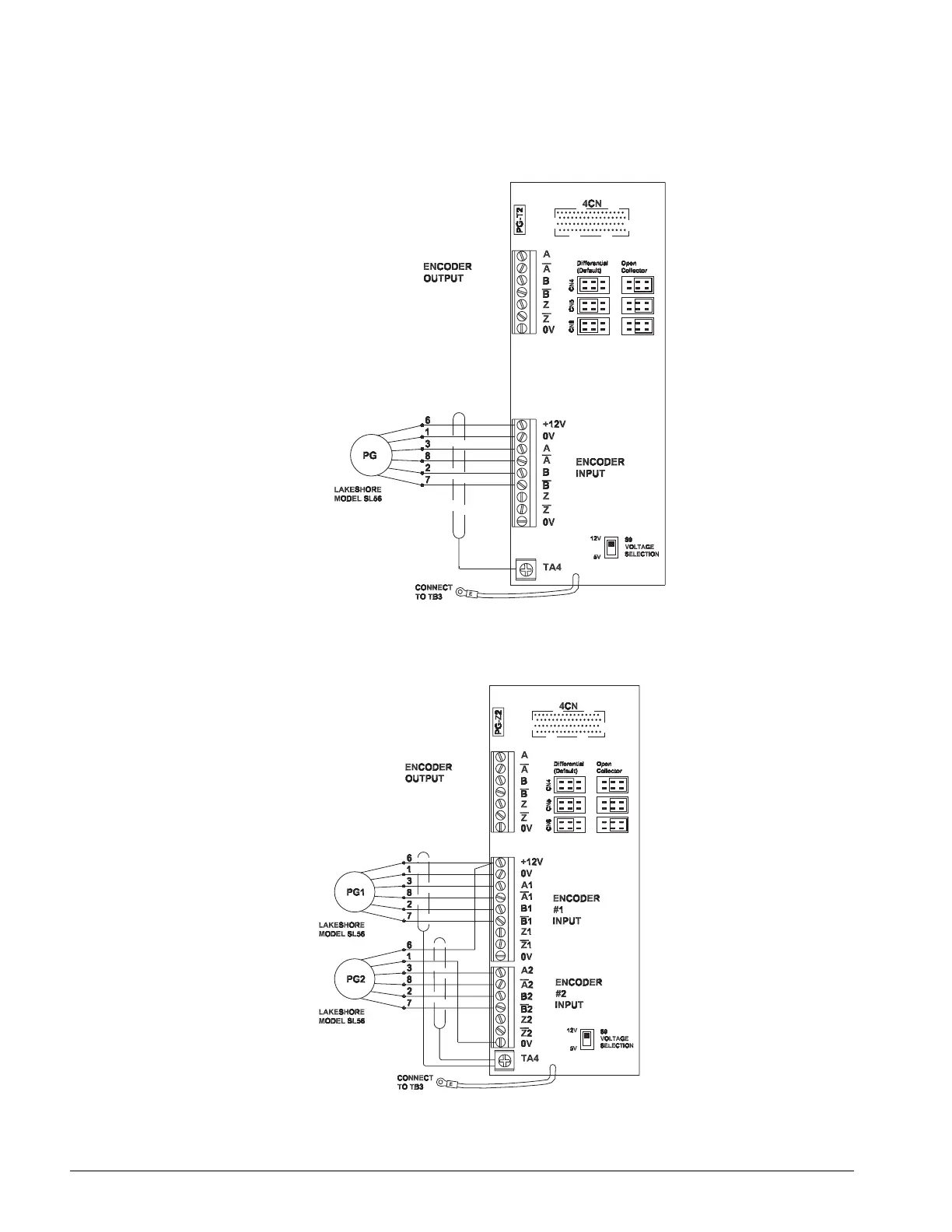

Figure 3-9: PG-T2 Encoder Card W
iring
Figure 3-10: PG-Z2 Encoder Card Wiring
