Quick Stop™/Reverse Plug Simulation™
The Quick Stop Function provides an automatic Alternate Deceleration at Stop Command.
NOTE: The Quick Stop Deceleration time differs from the normal deceleration time and is applied
only when the RUN command is removed.

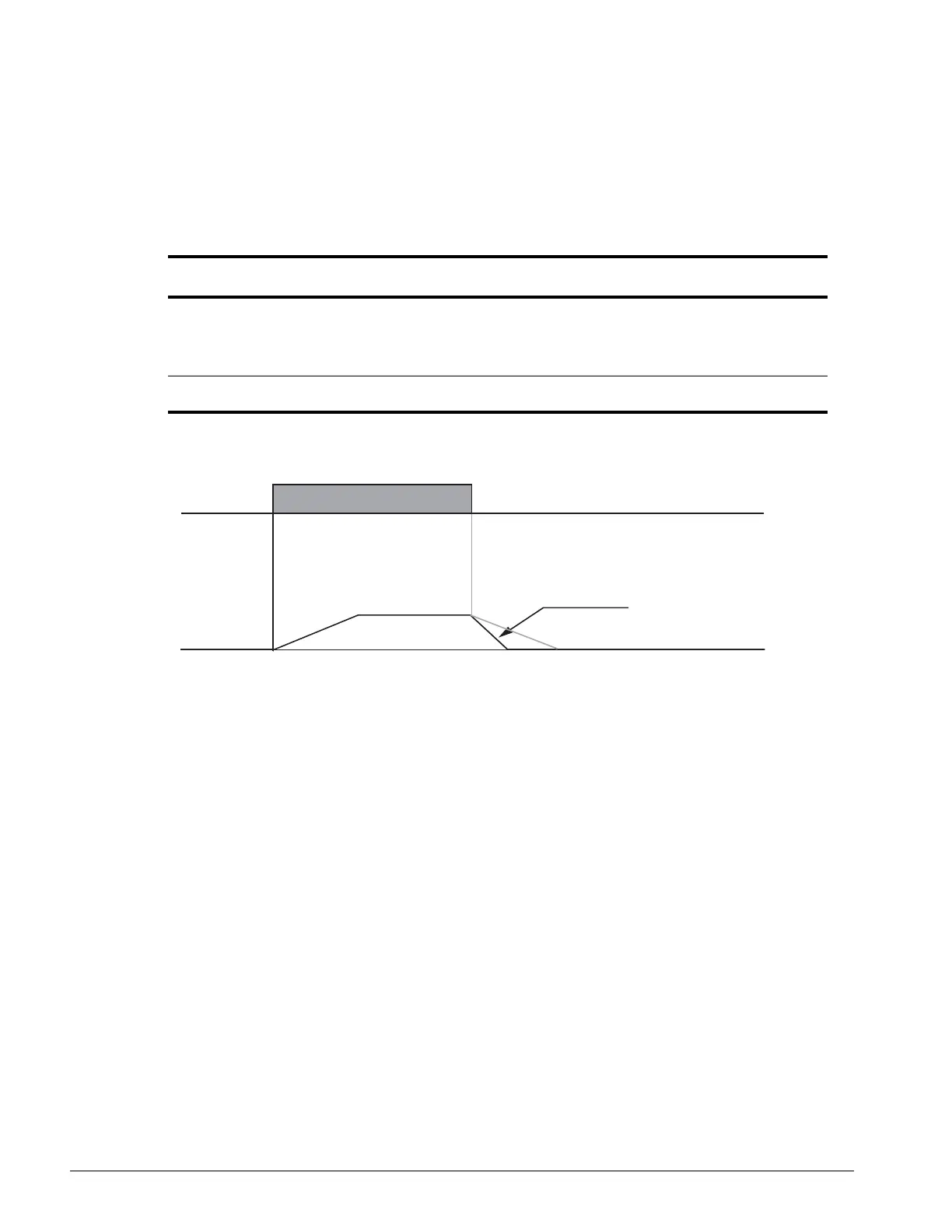

Figure 5-9: Quick Stop
Parameter
Code Display Function Range Initial Value
Access
Level
C1-01* Quick Stop 0/1 Determines whether Quick
Stop is enabled
0Adv
0 Disabled
1 Enabled
C1-02 Quick Stop Time Deceleration time during
Quick Stop function.
0.0–25.5 sec 1.0 Adv
* Initial value is determined by X-Press Programming (Table 4.1 to 4.2).
Frequency
Output
Run
Command
C1-02
