Parameter is a system control value, which is displayed by the system or input by the user.
Examples are suction pressure and high suction pressure alarm setpoint.
Screen is a method of displaying information to the user. The system contains eight types of
possible screens: menu screens, data entry screens, status screens, confirmation screens,
momentary screens, information screens, access screens, and log screens
Small Character Screens utilize the entire LCD display and use small characters to show
system information. These screens do not display the system hot keys.
Toggle is the process of moving from one selectable choice to the next by using the ENTER
key.
User is an individual or group of individuals who will use the system. A user is identified by a
user number ranging from 1 to 10. The user may also be referred to as the operator in this
document.
Keypad Functions
The following is a brief summary of the CCS keypad along with a description of its individual
keys. Below is a drawing of the CCS keypad layout.

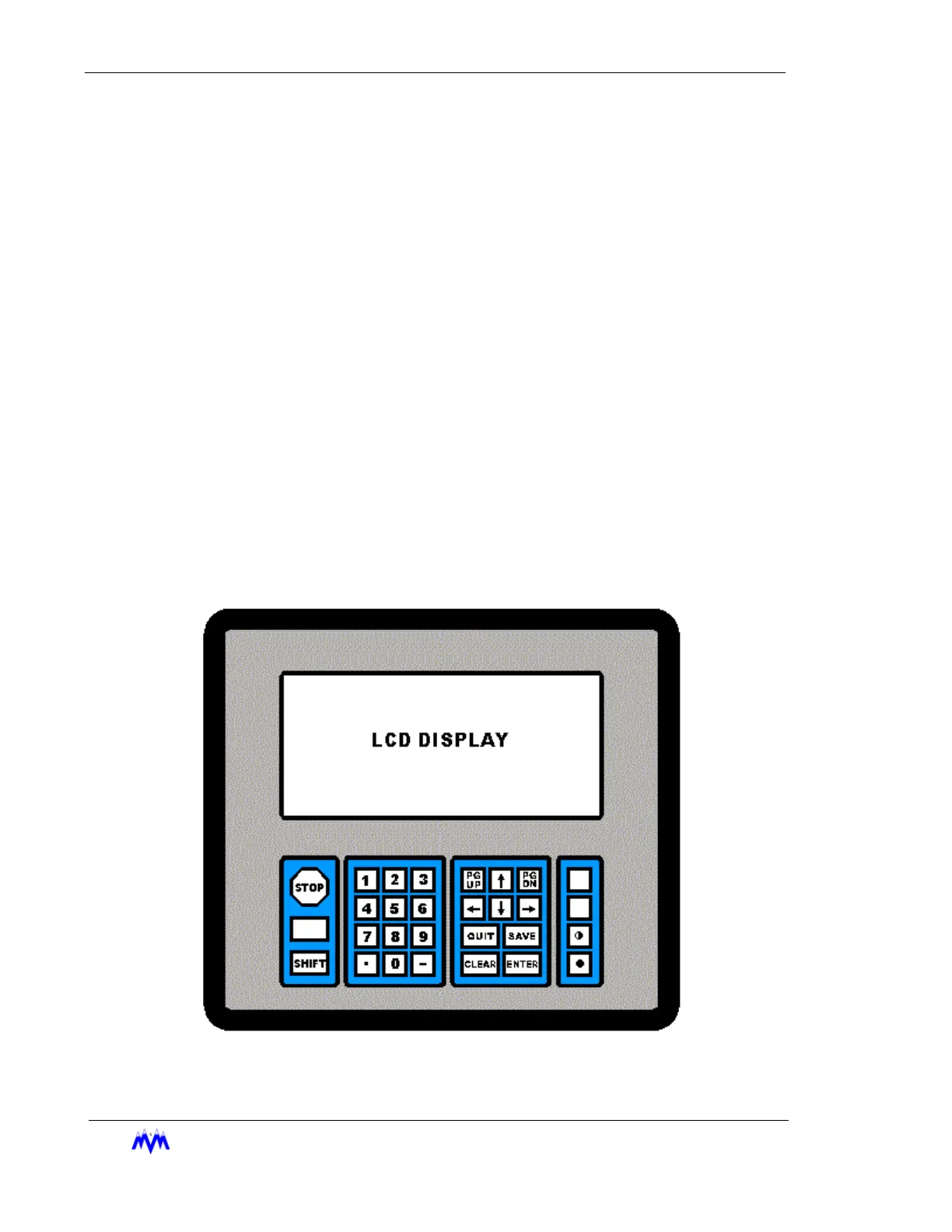

Keypad Diagram
