HYDRAULIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
2-14
Published 05-03-17, Control # 228-03

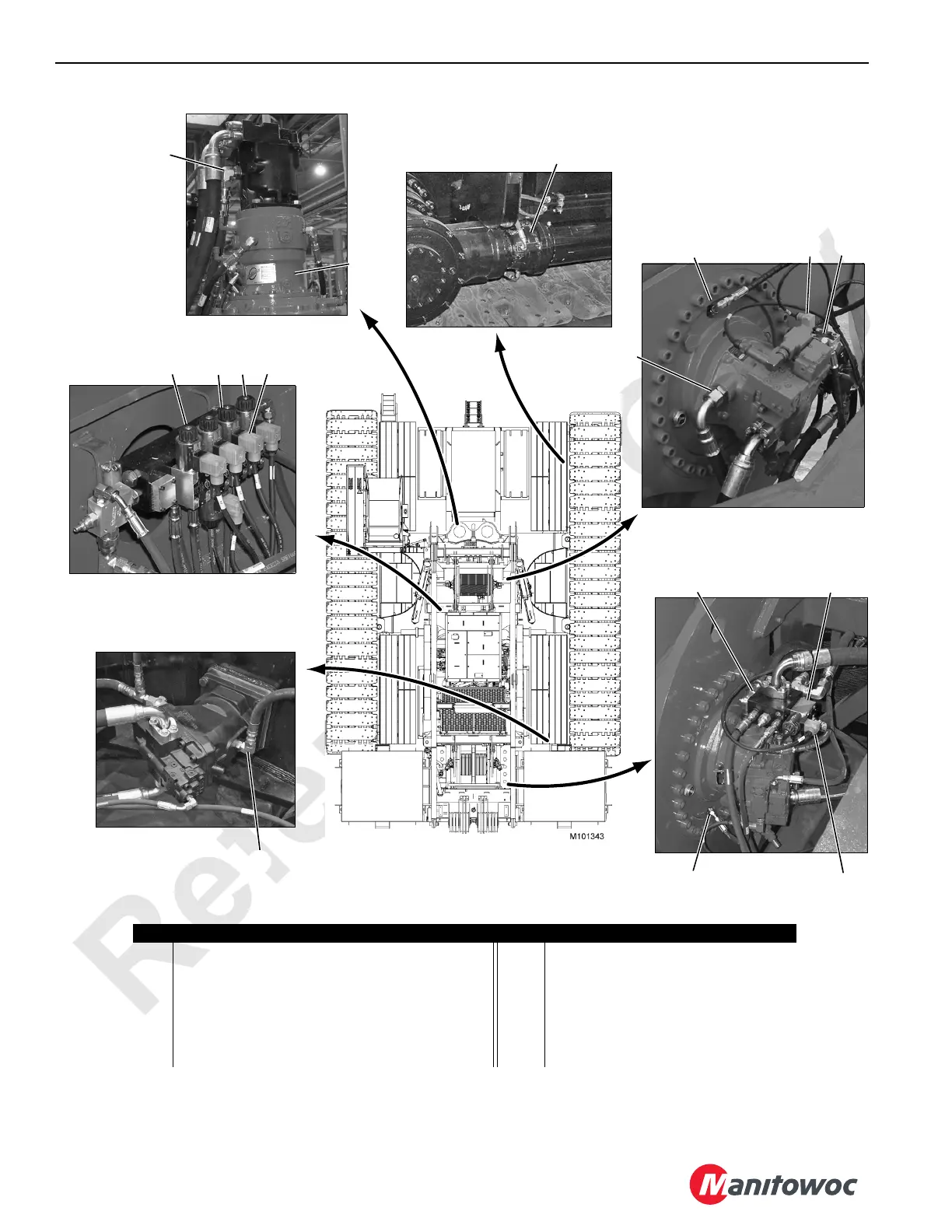

FIGURE 2-12
1
2
4
3
5
5 8
12
11
576
13
14
9
P2299
P2270a
P2297
P2298
P2252
P2300
10
Item Description Item Description
1 Swing Motor Drain Case Port 8 Load Drum Brake Solenoid (typical
2 Load Drum Motor Case Drain (1 or 2 places per drum) 9 Boom Hoist Brake Solenoid
3 Boom Hoist Motor Case Drain 10 Travel Speed Solenoid
4 Travel Motor Case Drain 11 Swing Brake
5 Electric Connector (typical) 12 Travel Brake
6 Swing Brake Solenoid 13 Load Drum Brake
7 Travel Brake Solenoid 14 Boom Hoist Brake (2, inside gear boxes)
