Manitowoc Published 05-03-17, Control # 228-03 3-33
16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
Blank Display
If a display goes blank, try the following procedure to restore
the display. Do not return a display to Manitowoc Crane Care
before attempting this procedure:
1. Press the desired Display button (4a or 4b) and the
Confirm button (7) at the same time.
2. Release the Confirm button (7) first, and then the
Display button (4a or 4b).
3. Press the Select buttons (5a and 5b) at the same time to
return to the factory default display settings.
4. Press the Confirm button (7).
Main Display
The basic components for the Main display are the
Information screen, Diagnostic screens, Function screens,
CAN Bus screen, Camera screens, Pressure Test, and
Calibration screens.
The appearance and function of each screen depends on the
screen level. Some screen levels show icons and/or data
boxes that can be selected to change parameters and/or to
enter different screen levels.
“Manitowoc” Screen

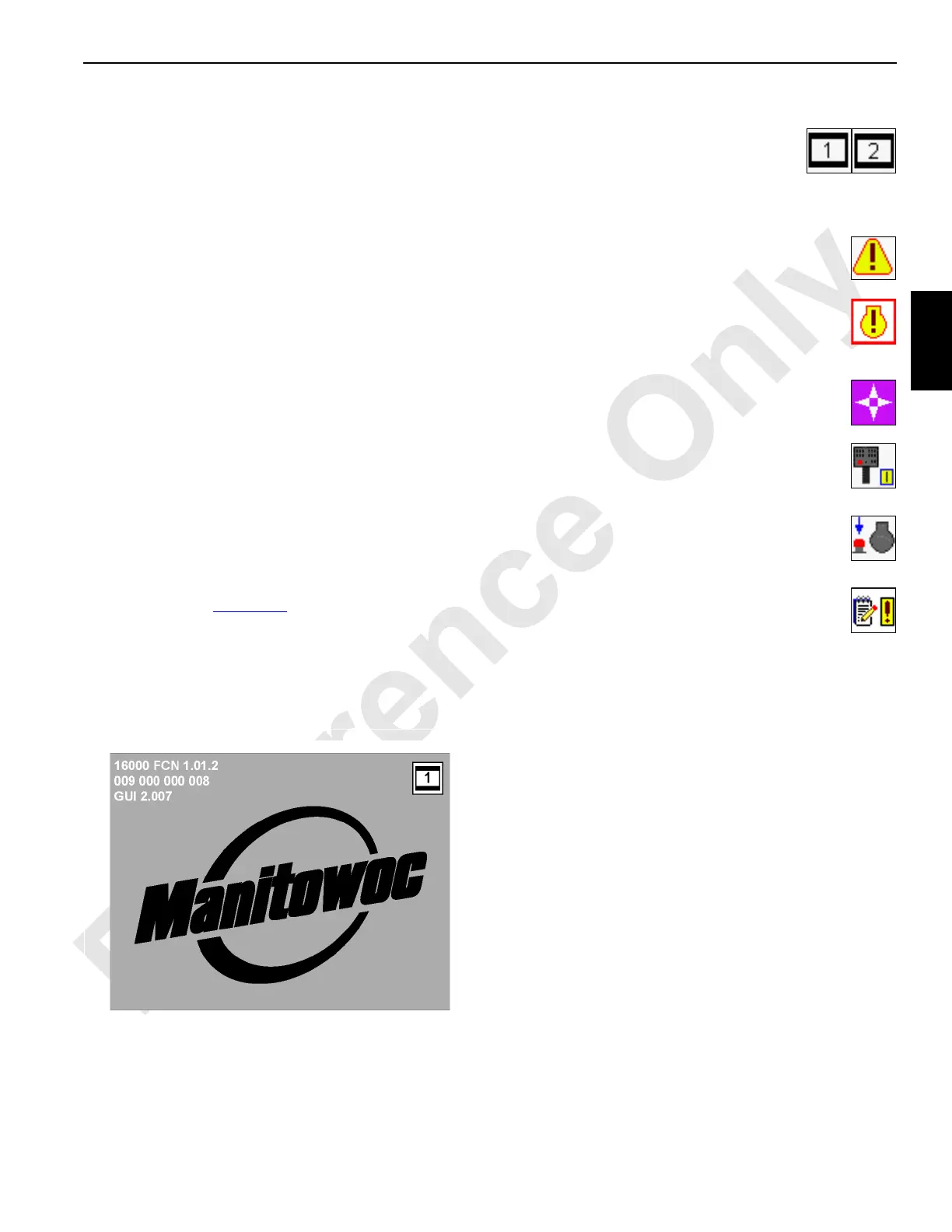

The initial view displayed at crane startup is the “Manitowoc”
screen, shown in Figure 3-6
. This screen displays the
following:
• Model/ Program Number (16000 FCN 1.01.2 shown)
• Con Number (009 000 000 008 shown)
• Screen Program Number (GUI 2.007 shown)
Screen Prompts
To select the RCL Display, press and hold the
Confirm key, and then press key 1. Then
release the Confirm key.
To select the Main Display, press and hold the Confirm key,
and then press key 2. Then, release the Confirm key.
The yellow alert symbol is displayed if a system fault
occurs. For more information, see Section 3 of the
16000 Operator Manual.
The engine alert symbol is displayed when the
engine needs to be serviced at the first available
opportunity. For more information, see Section 3 of
the 16000 Operator Manual.
The purple confirm prompt appears when the
operator shall start certain test routines from the
screen and to confirm data when required.
The wireless remote symbol is displayed when the
hand-held wireless remote is enabled.
The engine stopped symbol is displayed when
engine is stopped.
The data logger icon is displayed for 60 seconds at
startup if there is a problem with the data logger
(most likely caused by the real time clock).
FIGURE 3-6
D16-02
