Manitowoc Published 05-03-17, Control # 228-03 7-9
16000 SERVICE/MAINTENANCE MANUAL POWER TRAIN
7

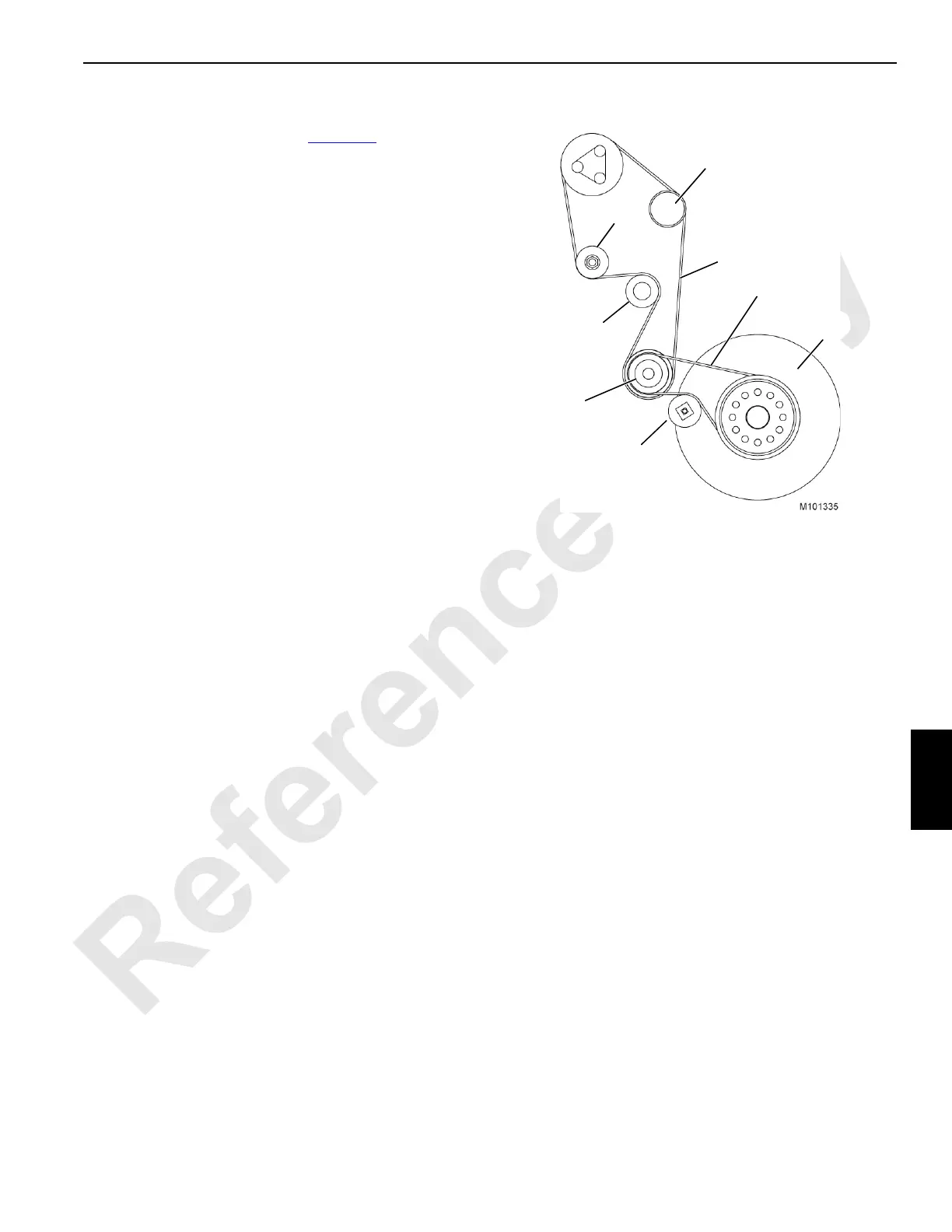

ENGINE BELT ROUTING
Service personnel may reference Figure 7-6 for engine belt
routing when installing a drive belt on a QSX15 Tier 4F
Cummins engine.
Looking at Engine
from Fan End
Belt #1
Belt #2
Water Pump
Alternator
Crankshaft
Fly Wheel
Tensioner
Tensioner
Tensioner
FIGURE 7-6
