BOOM 16000 SERVICE/MAINTENANCE MANUAL
4-4
Published 05-03-17, Control # 228-03
Adjustment
To adjust the boom limit, use the following procedure:
1. Park the crane on a firm level surface or level the crane
by placing blocking under the crawlers.
2. Make sure the proper adjusting rod is installed (see
Table 4-2
).
3. Raise the boom to specified angle A (Figure 4-1
) while
monitoring the angle on the mechanical indicator or on
the operating conditions screen of the front-console
display.
4. Verify that the boom is at proper angle A:

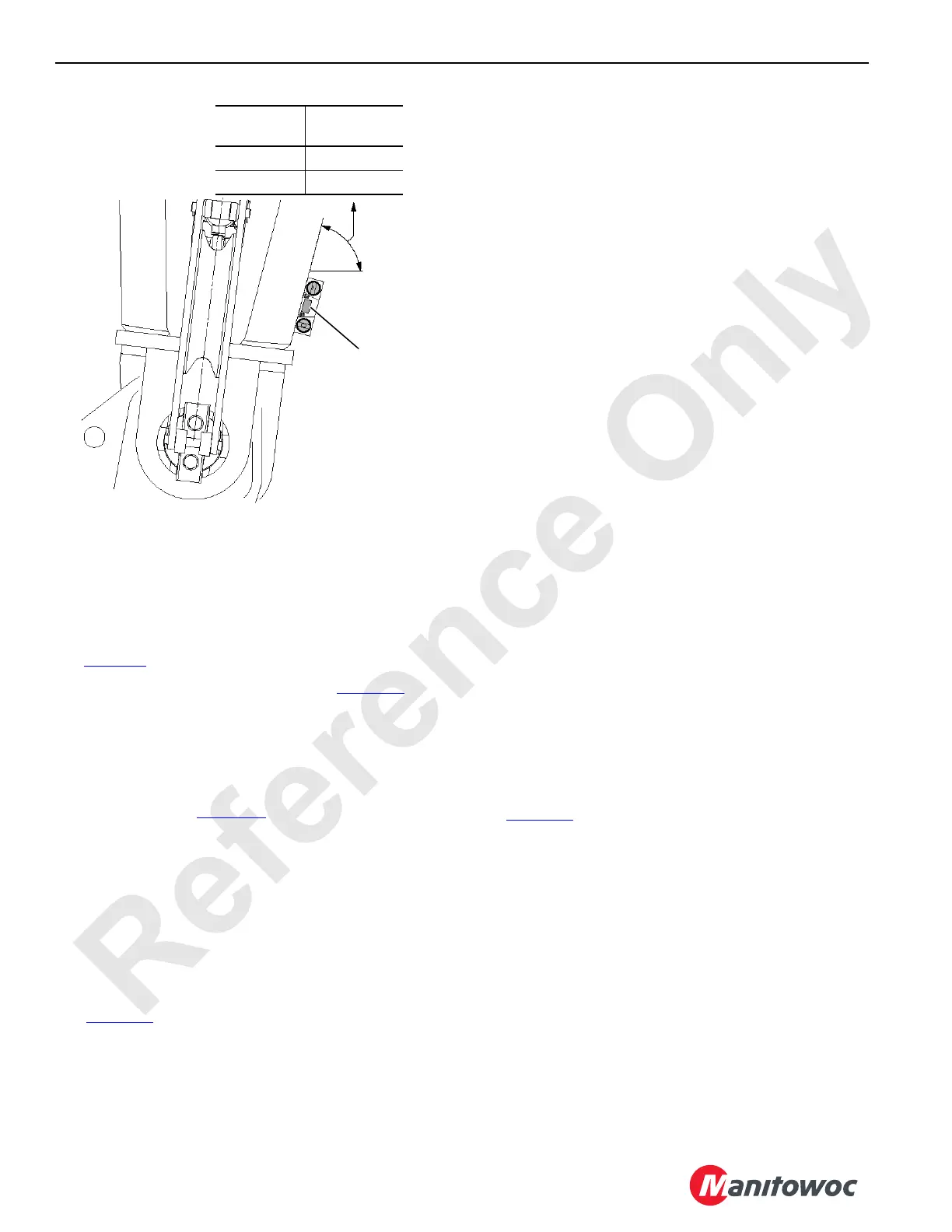

a. Place an accurate digital level (12) on the boom butt
as shown in Figure 4-3
. The corresponding Digital
Level Angle should appear on the digital level.
b. Raise or lower the boom as necessary.
5. If the boom stops at the specified angle, further
adjustment is not needed.
a. If the boom stops before reaching the specified
angle, go to step 6.
b. If the boom stops after reaching the specified angle,
go to step 7.
See Figure 4-2
for the remaining steps.
6. If the boom stops before reaching the specified angle,
use the following procedure:
a. Loosen the jam nut (3, View B).
b. Turn the adjusting rod (2a or 2b) all the way into the
coupling (4).
c. Boom up slowly until the boom reaches the
specified angle.
d. Turn the adjusting rod (2a or 2b) out against the
boom butt (1) until the limit switch (5) clicks in the
open position (View A).
e. Tighten the jam nut (3).
7. If the boom stops after reaching the specified angle, use
the following procedure:
a. Loosen the jam nut (3, View B).
b. Turn the adjusting rod (2a or 2b) out against the
boom butt (1) until the limit switch (5) clicks in the
open position (View A).
c. Tighten the jam nut (3).
8. Make sure the actuator rod (11) over-travels the limit
switch as shown in View A.
9. To test the adjustment, using the following procedure:
a. Lower the boom several degrees below specified
angle A.
b. Slowly raise the boom.
c. The boom must stop at specified angle A. If the
boom does not stop at the specified angle, use the
following procedure:
- Stop raising the boom (move the control handle
to OFF).
- Lower the boom several degrees below the
specified angle.
d. Repeat adjustment steps 2 through 9.
ACTUATOR ROD REPLACEMENT
See Figure 4-2, View B for the following procedure:
1. Remove the damaged actuator rod (11).
2. Slide the spring washers (7 and 9) and spring (8) over
the new actuator rod (11) then slide the actuator rod into
the bracket assembly.
3. Position the actuator rod (11) so the tapered end just
touches the roller on the limit switch (5, View B). The
actuator rod must not depress the limit switch roller.
4. Drill a 6 mm (1/4 in) hole through the spring washer (9)
and actuator rod (11).
5. Install a dowel pin (10).
6. Install the proper adjusting rod (2a or 2b).
7. Adjust the boom stop.
12
Against Bottom Chord
of Boom Butt on Right
Side of Crane
Angle A
Digital Level
Angle
84° 76.3°
88° 80.3°
FIGURE 4-3
A10415
