HYDRAULIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL

2-20

Published 05-03-17, Control # 228-03

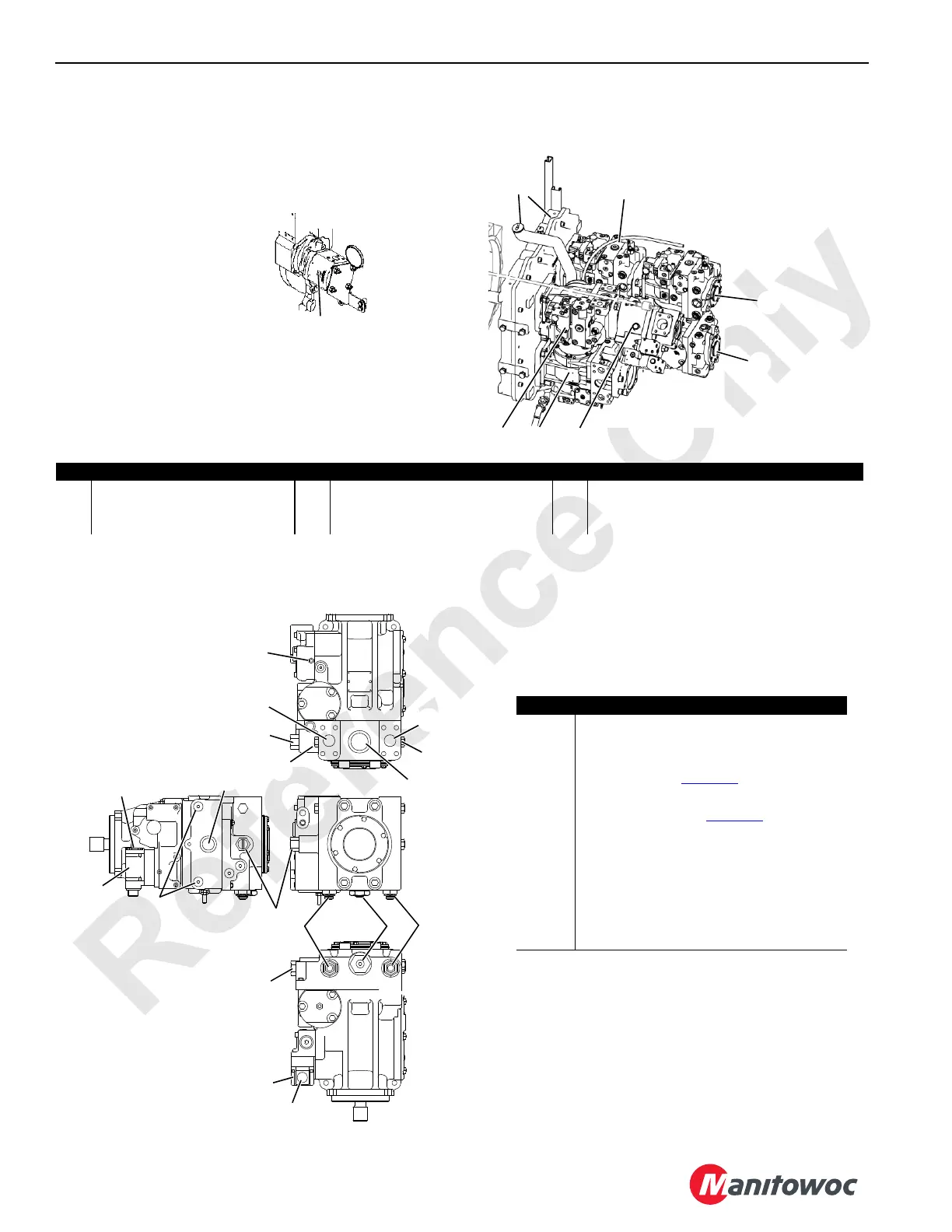

PUMP IDENTIFICATION

PUMP COMPONENTS

Item Description Item Description Item Description

1 Right Travel or Boom Drum 4 Drum 1 or Drum 2 7 Accessory System

2 Left Travel or Luff Drum 5 Swing 8 Gear Pump for Fan (Front of Engine)

3 Boom or Mast Boom Drum 6 Drum 2 or Drum 1 9 Pump Drive and Pump Drive Oil Fill

A10584-2

A13469

81013192

1 – Top

2 – Bottom

FIGURE 2-16

FIGURE 2-17

Item Description

1 EDC (Electronic Displacement Control)

2 Manual Override Control

3Servo Ports

Case Drain Port (

NOTE 1:)

5 Charge Pressure Relief Valve

Multi-Function Valve (

NOTE 2:)

7 Charge Pressure Gauge Port

8 Charge Pump Inlet Port

9Pump Port B

10 Pump Port B Gauge Port

11 Pump Port A

12 Pump Port A Gauge Port

13 Neutral Adjusting Screw

NOTE 1: Both sides of pump

NOTE 2: Valve is directly opposite port it protects
