ELECTRIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
3-2
Published 05-03-17, Control # 228-03
CIRCUIT BREAKER AND FUSE ID
Fuses are mounted in the fuse junction box located in the
operator cab, under the right-hand console (Figure 3-1
) or
the Cranestar TCU Harness connection at the batteries.
Circuit breakers CB-1 to CB-8 are mounted in the engine
node-0 controller box in the left side enclosure. There are no
in-line fuses used on this crane model.
Circuit breakers A8CB1 to A8CB4 and fuses F1, F2, and F3
are mounted in the load center under the operator seat.
A10871

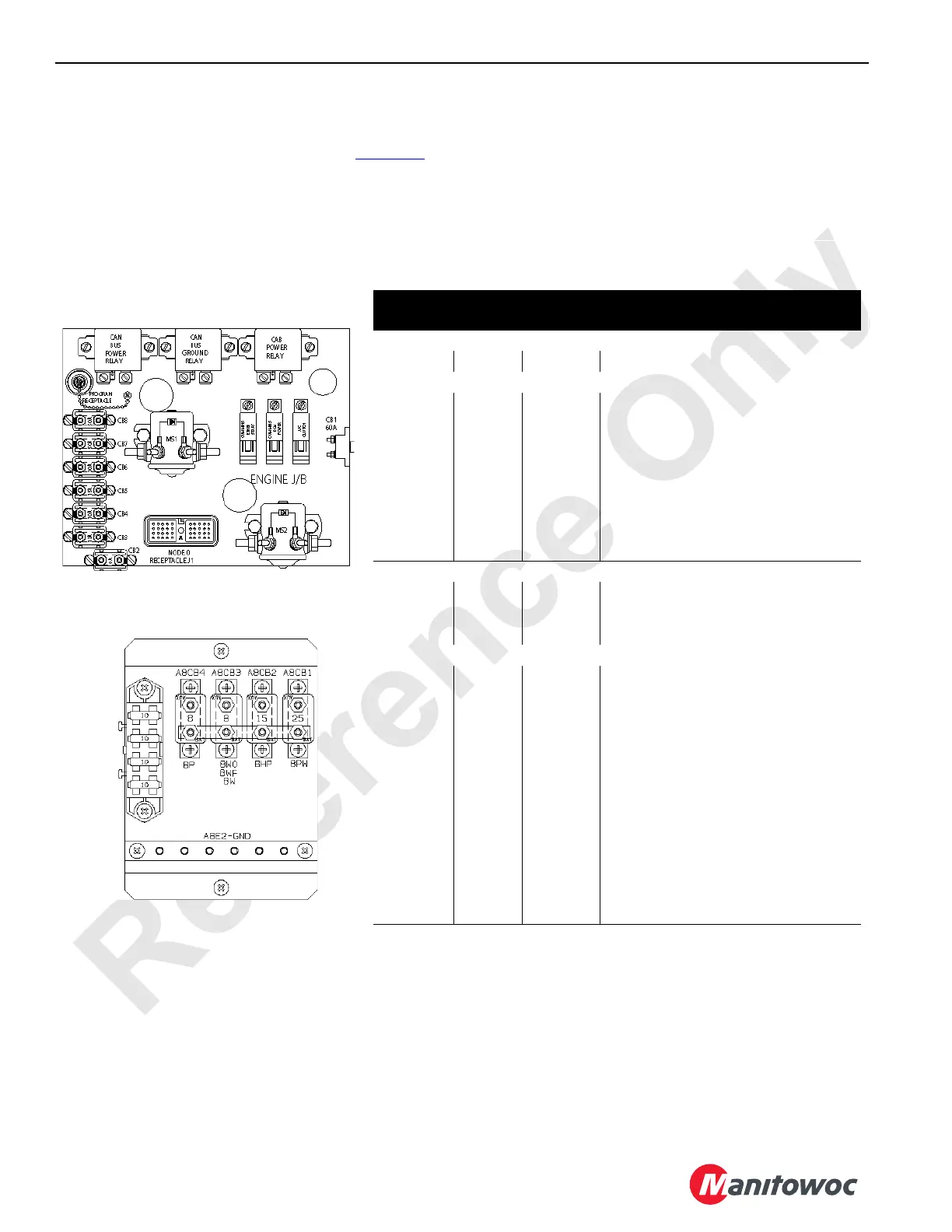

FIGURE 3-1
Circuit
Breaker
Amps Wire No. Items Protected
Located on right side of battery assembly
CB-0 150 6-3 Alternator Circuit
Located in node 0
CB-1 120 6 Main System 24 Volt Power
CB-2 8 6C2 Electronic Control Module (Cummins)
CB-3 30 6C6 Electronic Control Module (Cummins)
CB-4 10 6C8 Engine Stop, Engine Stop-Run-Start
CB-5 15 6C11 Ether Start, Air Conditioner Clutch
CB-6 30 6C12 Starter Solenoids
CB-7 50 6C13 CAN Bus Power
CB-8 50 6C14 Cab Bus Power
Located in aftertreatment junction box
CB10 15 6-8 DEF Supply Module Heater
CB11 10 6-7 DEF System Switch
CB12 15 6-6 DEF Hose Heaters
Located under operator seat
A8CB1 8 8PW 24/12 Volt DC Converter
A8CB2 15 8HP Air Conditioning/Heater Power
A8CB3 15 8W Front and Overhead Wiper
A8CB4 25 8P Radio and Panel Lights
F1 10 12VF1 Right Side Power Point
F2 10 12VF2 Left Side Power Point
F3 10 12VF3 Radio
A12665
F1
F2
F3
