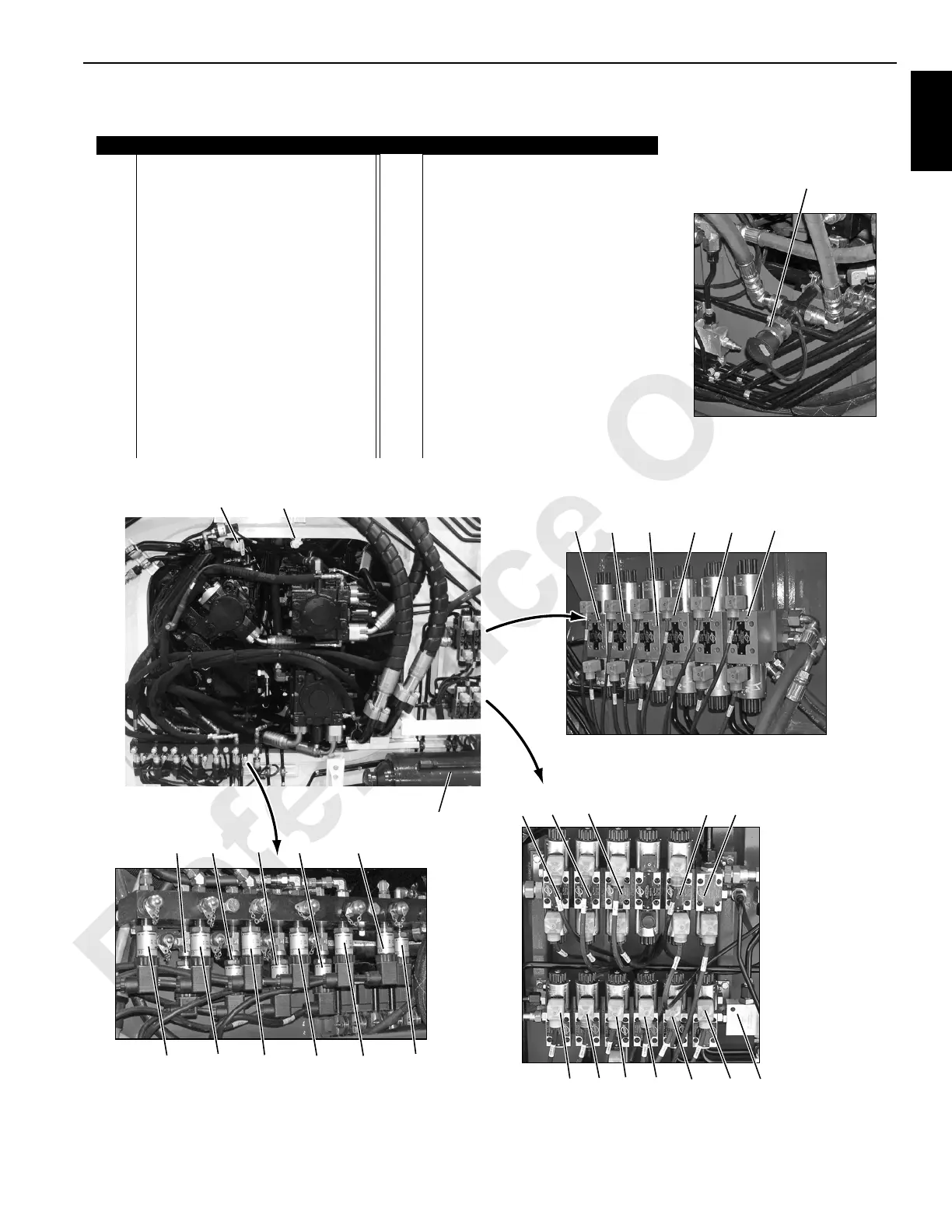

Left Side
Item Description Item Description
1 Left Front Jacking Solenoid 18 Drum 4 Pawl Solenoid
2 Right Front Jacking Solenoid 19 R Travel to Drum 4 Diverting Solenoid
3 Mast Raising Cylinders Solenoid 20 L Travel to Drum 3 Diverting Solenoid
4 Rigging Winch Solenoid 21 Drum 4 to Drum 5 Diverting Solenoid
5 Right Rear Jacking Solenoid 22 Pressure Reducing Valve
6 Left Rear Jacking Solenoid 23 Drum 1 Pressure Sender
7 Pump Drive Dipstick 24 Boom/Mast A Pressure Sender
8 Engine Oil Dipstick 25 Boom/Mast B Pressure Sender
9 Left Rear Jack 26 Right Travel A Pressure Sender
10 Hydraulic Fill Port 27 Right Travel B Pressure Sender
11 Rear Rotating Bed Pin Solenoid 28 Left Travel A Pressure Sender
12 Boom Hinge Pin Solenoid 29 Left Travel B Pressure Sender
13 Cab Tilt Cylinder Solenoid 30 Swing Right Pressure Sender
14 Front Rotating Bed Pin Solenoid 31 Swing Left Pressure Sender
15 Counterweight Pin Solenoid 32 Drum 2 Pressure Sender
16 Drum 1 to Drum 2 Diverting Solenoid 33 Accessory Pressure Sender
17 Drum 2 to Drum 1 Diverting Solenoid
FIGURE 1-5
P2301
P2296
2
4
6
3
1
5
P2251
M101290
P2308
10
7
18
17
20
19
21
2216
14
15
13
11
12
23
25
24
26
27
33
32
28
30
29
31
8
See Section 2 for Pump Identification
9
To Next Page
