Manitowoc Published 05-03-17, Control # 228-03 3-43
16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3
Swing Functions
Highlight and select the swing functions as shown here.
Travel Functions
Highlight and select the travel functions as shown here.
Crane Setup Remote Functions
Highlight and select the crane setup remote functions as
shown here.
MAX-ER Functions
Select the MAX-ER functions from the MAX-ER attachment
screen. See the MAX-ER Operator Manual for complete
MAX-ER attachment information.
Drum, Swing, or Track Speed Limits
See Figure 3-24 for the following procedure.
The drum, swing, and crawler speeds can be selected and
adjusted. On level 3, use the select buttons to highlight the
value in a data box and limit the function speed between
25% and 100% of maximum capability.
Swing Pressure Limit
See Figure 3-25 for the following procedure.
On level 3, use the select buttons to highlight the value
shown in this data box and limit the swing pressure between
25% and 100% of maximum capability.
Rigging Winch Mode
See Figure 3-26 for the following procedure.
On level 3, use the select buttons to enable or disable the
rigging winch for the selected drum function. The rigging
winch mode data box, shown disabled, will not appear in the
function mode screen unless this feature is available.
When the rigging winch is enabled, the computer selects the
control handle. (The selected handle display light is 0 in the
figure.) If the rigging winch is enabled for drum 4, the
computer selects a load drum handle to control the winch.

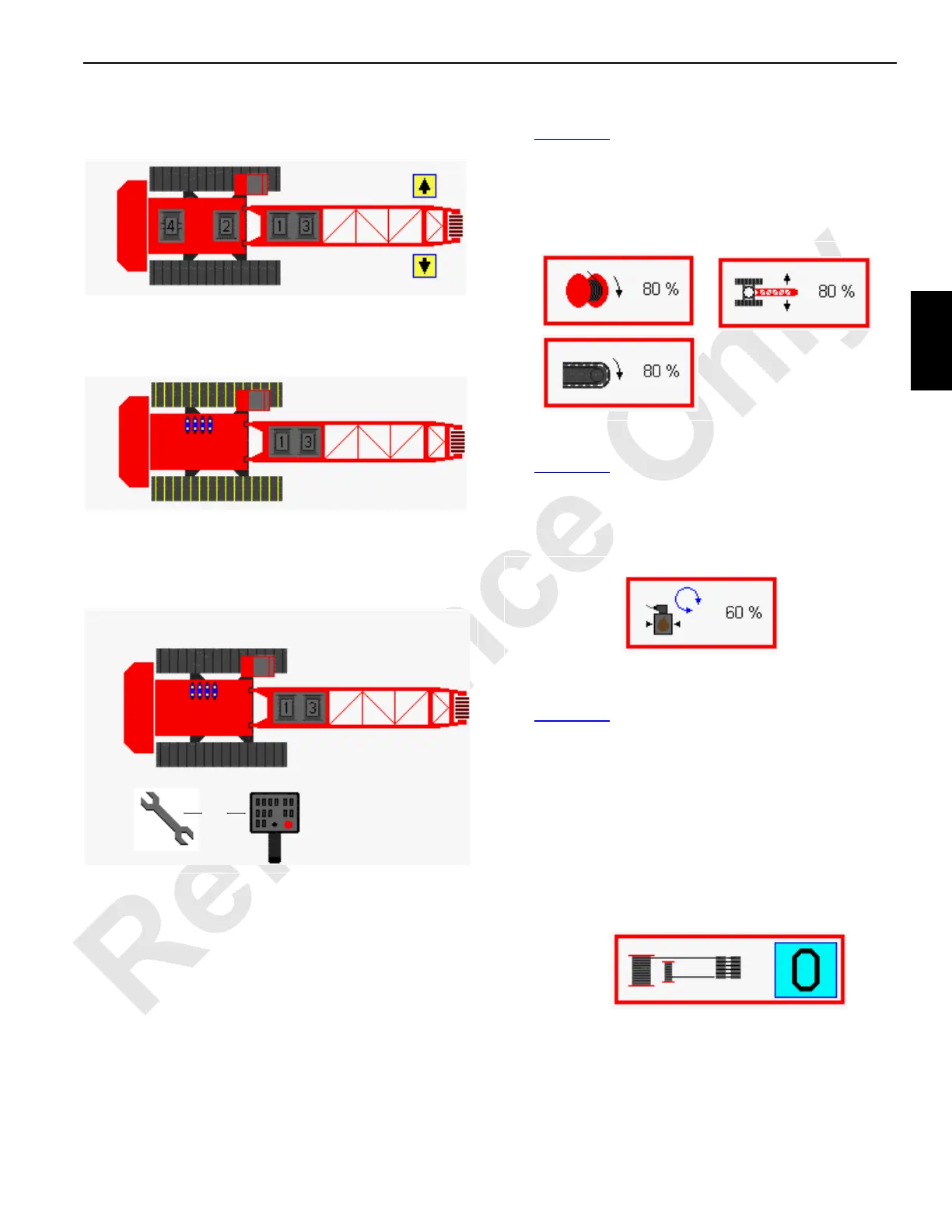

FIGURE 3-21
D16-18A
Swing
FIGURE 3-22
D16-18B
Travel
Diagnostic Screen
Accessory Items Selected
D16-18C
FIGURE 3-23
OR
FIGURE 3-24
Speed Limits
D16-19
FIGURE 3-25
Swing
Pressure
D16-20
FIGURE 3-26
Rigging
Winch
Mode
D16-21
