Manitowoc Published 05-03-17, Control # 228-03 3-35
16000 SERVICE/MAINTENANCE MANUAL ELECTRIC SYSTEM
3

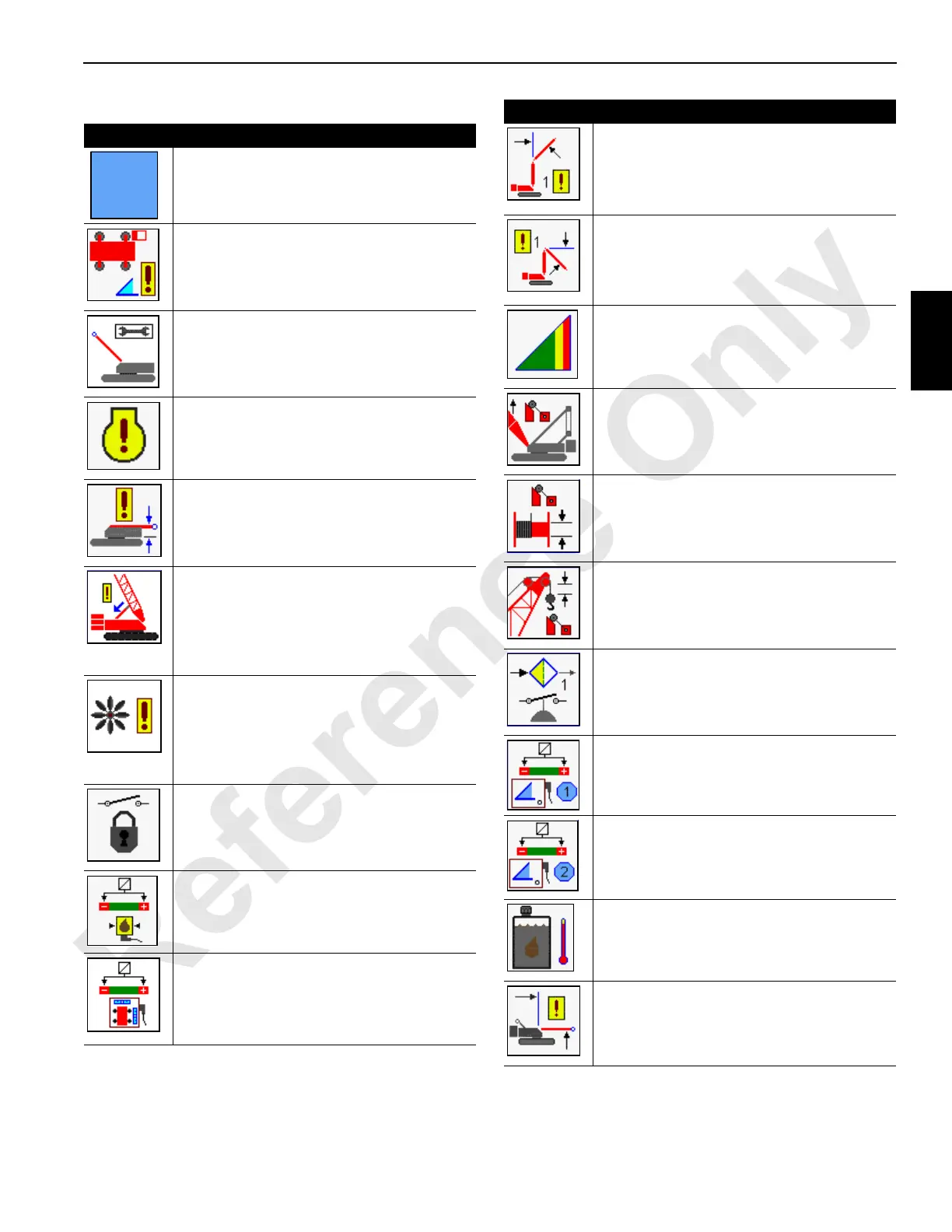

Table 3-8. Faults
Item Description
0-No Fault.
4-Out of Level—Crane is approximately 3° to 4-
1/2° out of level while jacking upperworks with
the setup remote control.
6-Setup Mode—Setup mode is on (Liftcrane
Mast Capacities Chart selected in the
configuration screen of RCL or luffing jib setup
mode, if applicable, is on).
10-Engine Fault*—See the engine data box on
the Information screen. See the engine Owners
Manual for diagnostics fault codes.
13-Mast 2 Degree Fault*—Stops down
movement of the live mast when lowering to
transport position. Complete the mast lowering
manually with the hand-held wireless remote.
27-Mast Stop Retracted*—MAX-ER lift and
boom hoist up will be disabled. This fault cannot
be bypassed.
This fault will also activate if Node-6 electric
cables are not connected properly. See the
MAX-ER Operator Manual.
30-Hydraulic Fan—A short in the fan circuit or
the pressure senders (transducers) are out of
range.
Fault 41 (Transducer Voltage) or Fault 84 (Digital
Output Disable) should light at the same time,
indicating the problem.
34-Function Parked*—Function inoperable
because it is parked. Turn the indicated park
switch off or sit down the in operator seat.
41-Transducer Out of Range- One or more
hydraulic pressure sensors is out of range.
43-Out of Level Sensor—Crane is approximately
4-1/2° out of level while jacking upperworks with
ALL switch on the setup remote control.
Relevel the crane with the individual jacking
switches on the remote control.
49-Jib Maximum Up 1*—Program limit stops the
luffing jib when the jib is raised to the maximum
working angle. Lower the luffing jib.
Can bypass this limit to raise the jib to Maximum
Up 2 limit.
50-Jib Maximum Down 1*—Program limit
activates fault alarm. Operation does not stop.
You can lower the luffing jib an additional 3° to
the luffing jib maximum down 2 limit (67).
54-Rated Capacity Indicator/Limiter*—Stops all
drums. Land the load or raise the boom/jib.
55-Boom Up*—Limit switch stops the boom in
the up direction. Moves the boom in lowering
direction.
57-Minimum Bail*—Limit switch stops the drum
from lowering or down direction. Move the drum
in hoisting or up direction.
60-Block Up Limit*—Limit switch stops the load
drum and boom. Lower the load or raise the
boom.
62-Filter—Replace elements.
63-Boom Angle Sensor—Boom angle sensor is
out of the normal range (0.15 to 4.85 Volts).
64-Jib Angle Sensor—Luffing jib angle sensor is
out of the normal range (0.15 to 4.85 Volts).
65-Hydraulic Fluid Temperature—Fluid
temperature in the hydraulic tank is below 18°C
(65°F) or above 82°C (180°F).
66-Mast Too Far Forward*—Live mast is below
156°. Raise the live mast. Further lowering is not
intended or the mast will fall.
Item Description
