ELECTRIC SYSTEM 16000 SERVICE/MAINTENANCE MANUAL
3-36
Published 05-03-17, Control # 228-03

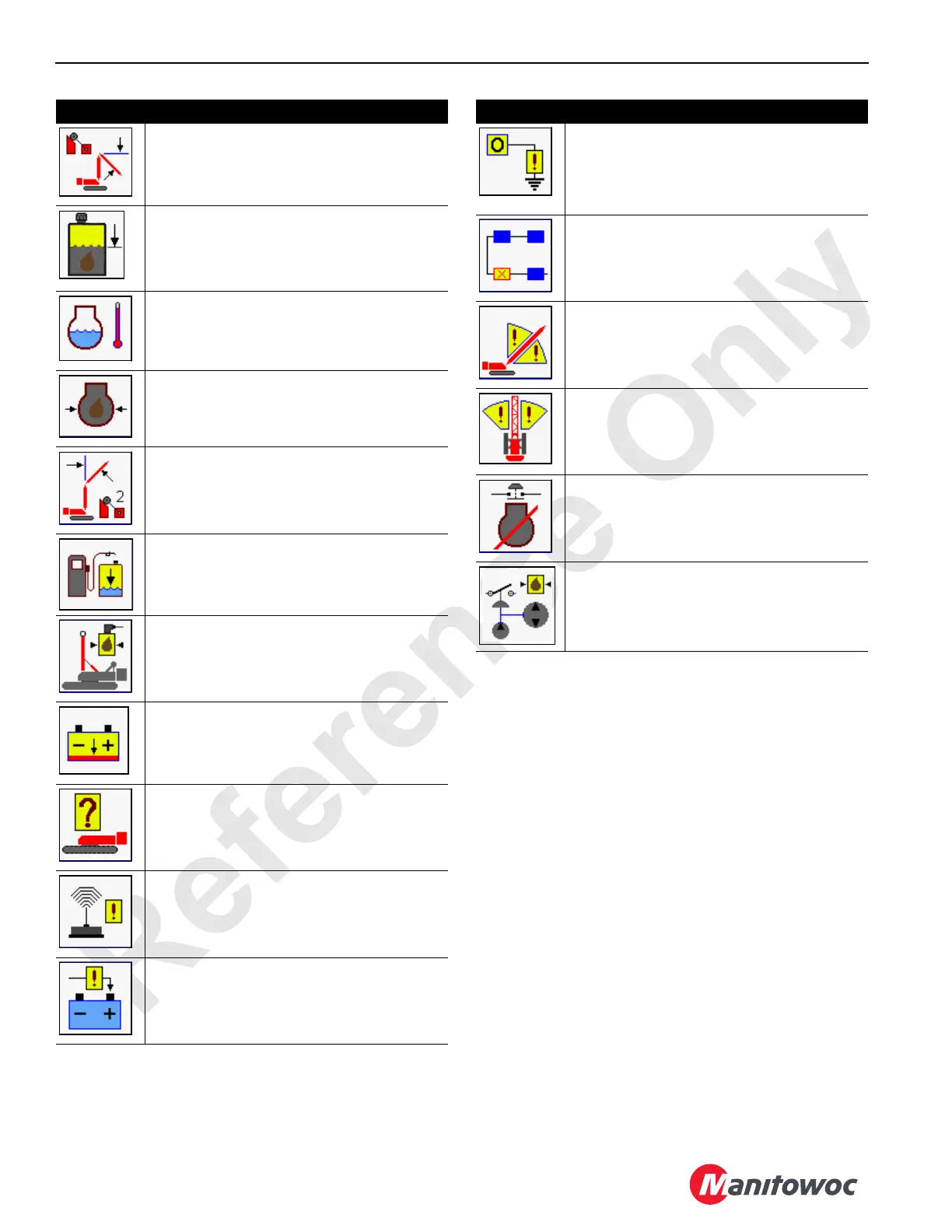

67-Jib Maximum Down 2*—Limit switch stops
the luffing jib when the jib is lowered to the
minimum angle. Raise the luffing jib.
69-Hydraulic Reservoir Level—Hydraulic oil at
caution low level indicated on the tank gauge.
Fill the tank.
70-Engine Coolant Temperature—Engine
coolant temperature is above 96°C (205°F).
71-Engine Oil Pressure—Oil pressure is below
0.5 bar (7.25 psi).
73-Jib Maximum Up 2*—Limit switch stops the
luffing jib when the jib is raised to the maximum
angle. Lower the luffing jib. Cannot bypass this
limit.
75-Low Fuel Level—Five percent fuel remaining
in tank. Fill the tank as soon as possible to
prevent engine stoppage.
77-Mast System—Boom/mast hoist inoperable
in both directions. Determine the cause of the
fault and correct.
78-Battery Low—Battery voltage below 18 volts.
Determine the cause of the fault and correct.
80-Invalid Configuration*—Make sure the
selected RCL configuration for the load drums is
correct.
81-Wireless System—Wireless load link sensing
fault. See wireless link information in the
separate Rated Capacity Indicator/Limiter
manual.
83-Alternator—Engine alternator is not
generating a charge to the battery.
Item Description
84-Digital Output Disabled—Digital output signal
has a short circuit between the computer node
and output device.
See CAN Bus screen or Diagnostic screen
information to identify the problem component.
85-CAN Communication—One or more
computer nodes are not communicating
correctly.
See CAN Bus screen to identify the node(s).
86-Boom Range Limiter*—Up or down range
limiter is tripped. Move the boom in a direction
away from the limit.
87-Swing Range Limiter*—Right or left range
limiter is tripped. Swing the rotating bed in a
direction away from the limit.
88-Engine Shutdown*—Remote emergency
stop shut down switch is pushed. Pull the switch
up to reset and allow the engine to start.
89-Super Charge Pressure—Pressure switch
that monitors hydraulic fluid to the main pumps is
open.
