Manitowoc Grove TMS9000-2 Series User Manual

4-59
TMS9000-2 OPERATOR MANUAL OPERATING PROCEDURES
4
Published 02-21-2019, Control # 611-05
GROVE

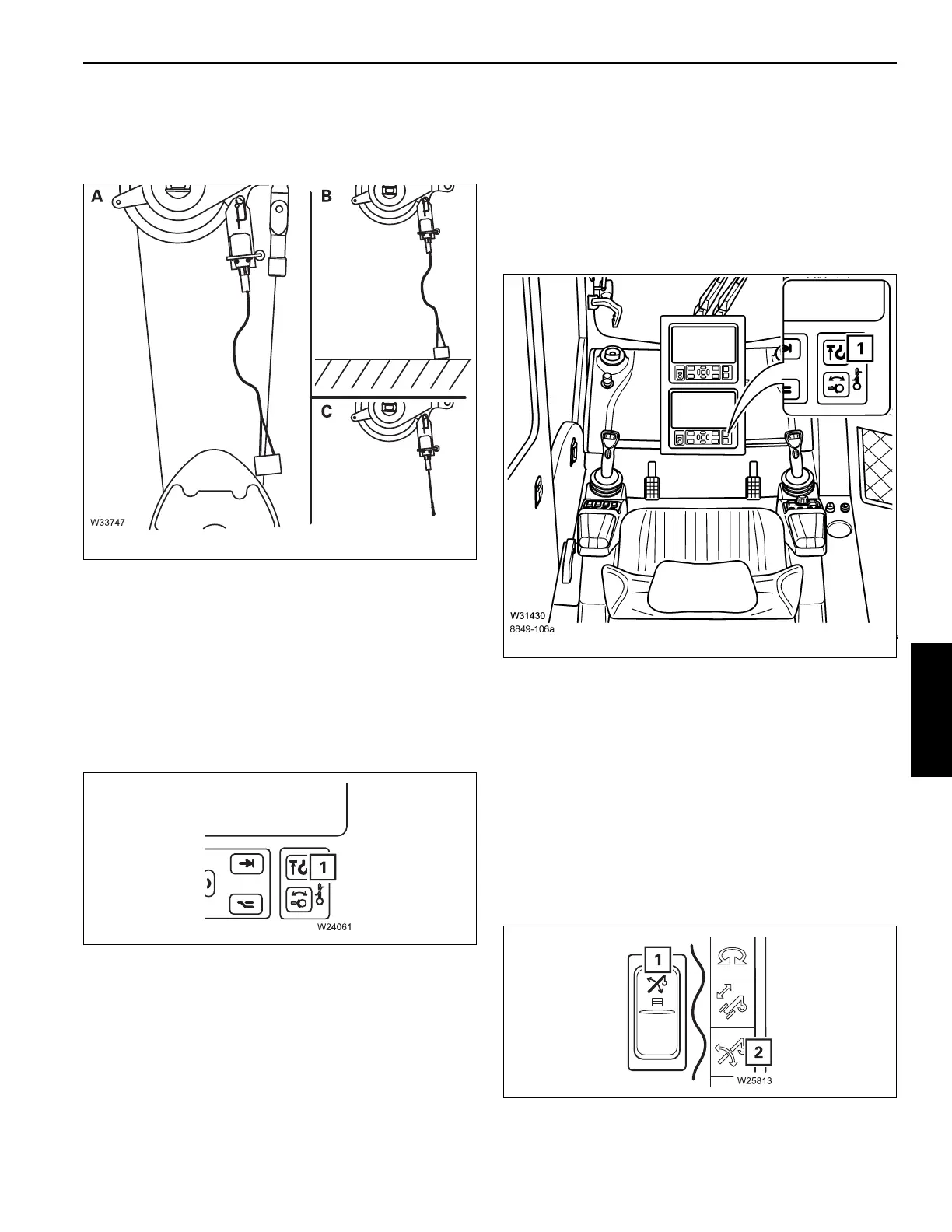

(B) – the anti-two block switch weight touches the ground
upon lowering or
(C) – the anti-two block switch weight is not attached.
The lamp (1, Figure 4-103) will light up if the anti-two block
switch has been triggered.
At the same time, all movements which would bring the load
closer to the nose will be switched off – Lifting, Boom
Lowering, Extending and Lowering the lattice extension if
necessary.
To cancel the shutdown, leave the shutdown range by
performing a different crane movement or by setting down
the load.
Anti-two block switch override
When overriding, the system continues to monitor the crane
and provides information on the displays. Only the lockout is
disabled when the crane is bypassed.
Press the button located on the overhead control panel (2,
Figure 4-98) and keep it depressed – the anti-two block
switch is overridden.
If the anti-two block switch is triggered now, the crane
movement is stopped once and the lamp (1, Figure 4-104)
flashes.
´The lamp (1) goes out, when you release the button
(override removed)
or
if you leave the shutdown range.
Switching on the lifting/lowering mechanism
After the ignition is switched on, all of the power units will be
switched off and the lamps in the corresponding buttons will
light up only dimly.
• Press the button on the right hand armrest (1,
Figure 4-105) once.
- Symbol (2) will be green if the lifting/lowering
mechanism is switched on.
If the control lever is assigned more than one function, all
other power units which are assigned the same control lever
operation are switched off.
8849-104
FIGURE 4-102
8849-105
FIGURE 4-103
8849-106a
FIGURE 4-104
8849-108
FIGURE 4-105
