Manitowoc Grove TMS9000-2 Series User Manual

4-67
TMS9000-2 OPERATOR MANUAL OPERATING PROCEDURES
4
Published 02-21-2019, Control # 611-05
GROVE

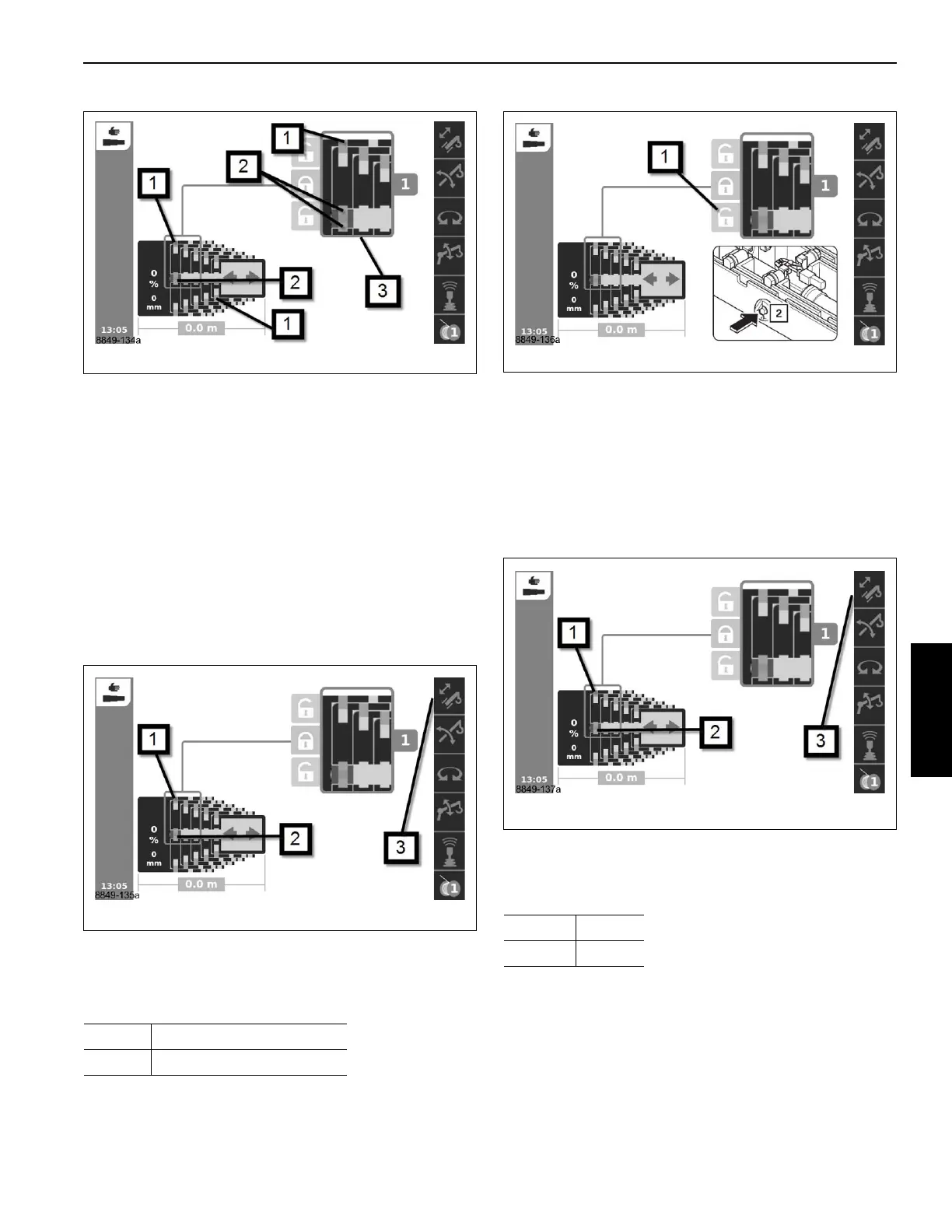

Unlocking the telescoping cylinder
Unlocking the telescoping cylinder is required for the
telescoping cylinder to be moved separately (without
telescopic section).
The telescoping cylinder and the telescopic section cannot
be unlocked simultaneously.
Prerequisites
Telescoping mechanism on – symbol (3, Figure 4-125) green
Telescoping cylinder locked – symbol (2) green
Telescopic section locked – symbol (1) green
Unlock
Select the symbol (1, Figure 4-126).
Confirm the selection – the locking pins (2) will retract.
Extending/retracting the telescoping cylinder
Prerequisites
- Telescoping mechanism on – symbol (3,
Figure 4-127) green
- Telescopic section locked – symbol (1) green
- Telescoping cylinder unlocked – symbol (2) red
Extending/retracting
• Move the control lever in the corresponding telescoping
direction:
The telescoping cylinder (2) extends/retracts.
The display (1) shows the currently extended length, e.g.
80%.
Near a locking point, the symbols (3) show:
Yellow: Intermediate position
Red: Unlocked
8849-134a
FIGURE 4-124
8849-135a
FIGURE 4-125
Extend: Extend
Retract: Retract
8849-136a
FIGURE 4-126
8849-137a
FIGURE 4-127
