7. Using the impact driver, turn the jack screw (1,
Figure 6-174) counterclockwise to disconnect the top
pins (2) between the heavy duty boom extension and the
lattice base extension.
8. See the remote controller “Remote Control Operation”
on page 3-107 for operation and also reference (1,
Figure 6-181) to fully retract the luffing cylinder.
9. Swing the heavy duty boom extension so the attachment
fittings (2, Figure 6-175) align with the main boom
anchor fittings (1).
10. Use the impact driver to turn the jack screw (3)
counterclockwise to insert the pins (4) into the fittings.
11. Using the remote controller, retract pin #2 (1,
Figure 6-176).
12. Move the handle (2) (Figure 6-176) down to release the
pin (handle shown in the up position).
13. Swing the heavy duty extension around the boom nose
and align the extension attachment fittings (1,
Figure 6-177) with the main boom anchor fittings (2).
14. Use the impact driver (3) to turn the jack screw (4)
counterclockwise to insert the pins (5) into the fittings.
9139

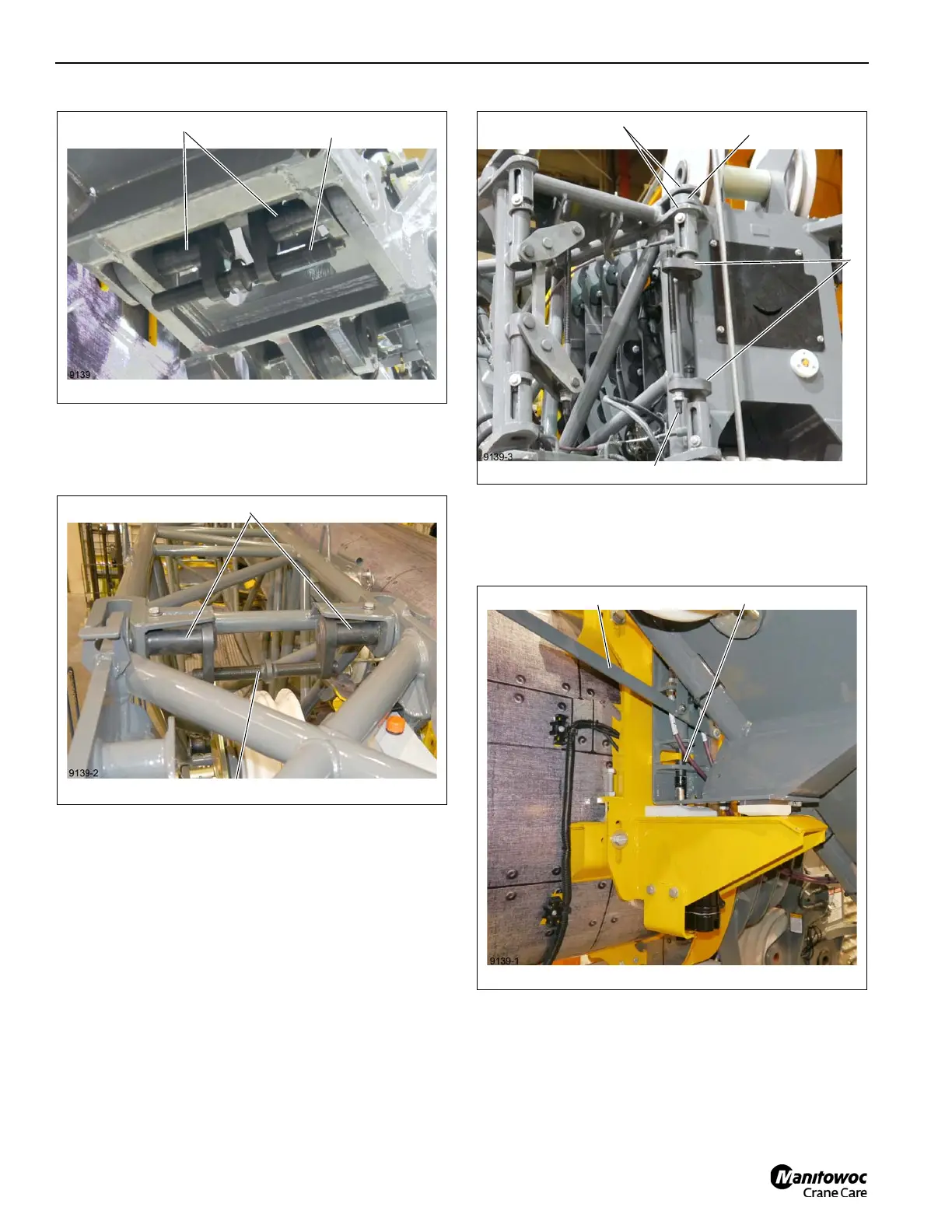

FIGURE 6-173
2 1
9139-2
FIGURE 6-174
2
1
9139-3
FIGURE 6-175
2
1
4
3
9139-1
FIGURE 6-176
1
2
