ON-BOARD DIAGNOSTIC SYSTEM

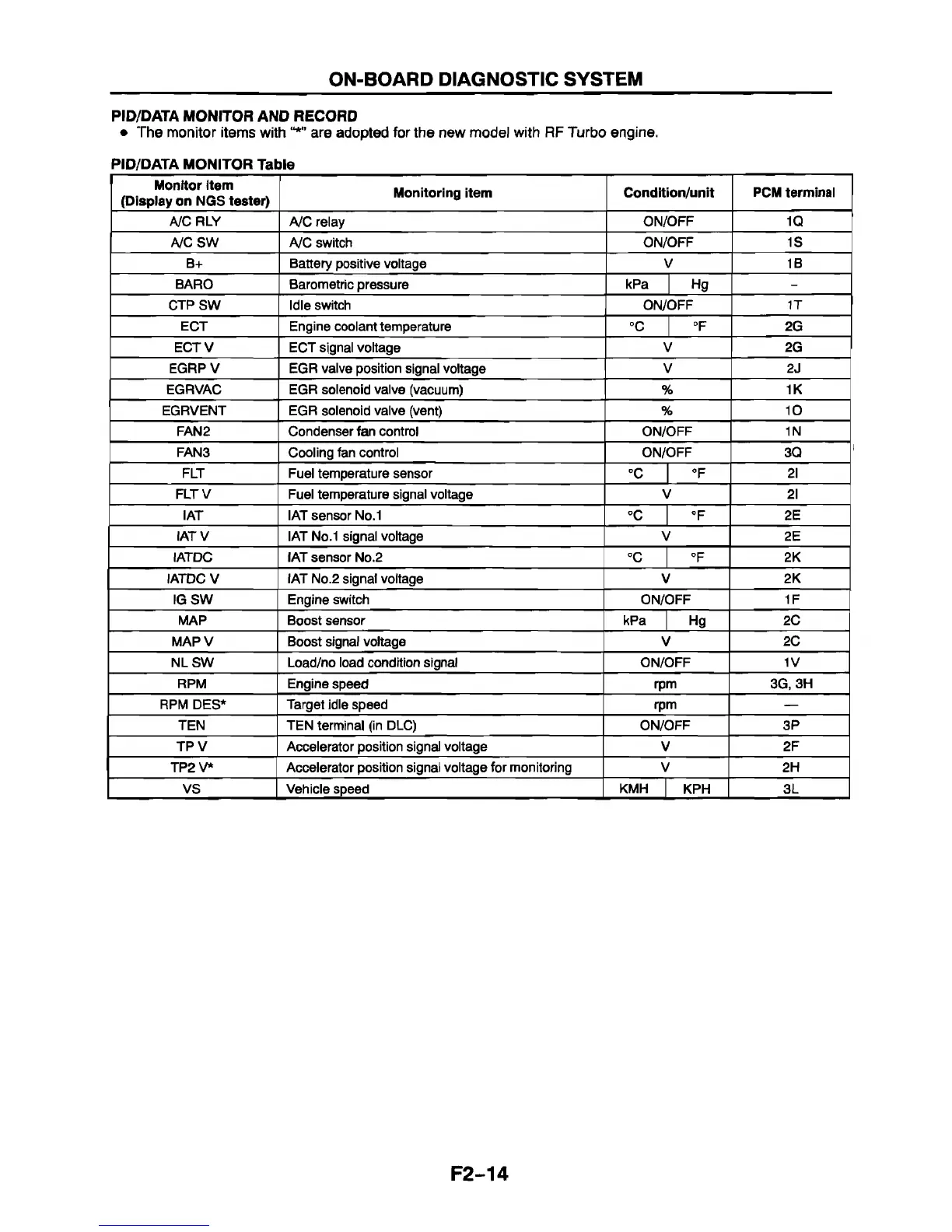

PID/DATA MONITOR AND RECORD
• The monitor items with are adopted for the new model with RF Turbo engine.
PID/DATA MONITOR Table
Monitor Item
(Display on NGS tester)
Monitoring item
Condition/unit
PCM terminal
A/C RLY
A/C relay
ON/OFF
1Q
A/C SW
A/C switch
ON/OFF
1S
B+
Battery positive voltage
V
1B
BARO
Barometric pressure
kPa
Hg
-
CTPSW Idle switch
ON/OFF
1T
ECT
Engine coolant temperature “C
°F
2G
ECT V
ECT signal voltage
V
2G
EGRP V EGR valve position signal voltage
V 2J
EGRVAC EGR solenoid valve (vacuum) %
1K
EGRVENT
EGR solenoid valve (vent)
%
10
FAN2 Condenser fan control
ON/OFF 1N
FAN3 Cooling fan control
ON/OFF
3Q
FLT
Fuel temperature sensor
°C
°F
2I
FLTV
Fuel temperature signal voltage
V
2I
IAT IAT sensor No.1
°C
°F
2E
IAT V IAT No.1 signal voltage
V 2E
IATDC
IAT sensor No.2
°C
°F
2K
IATDC V IAT No.2 signal voltage
V
2K
IG SW Engine switch
ON/OFF
1F
MAP Boost sensor kPa
Hg
2C
MAP V Boost signal voltage
V 2C
NL SW
Load/no load condition signal
ON/OFF
1V
RPM
Engine speed rpm 3G, 3H
RPM DES*
Target idle speed rpm
—
TEN TEN terminal (in DLC)
ON/OFF
3P
TP V Accelerator position signal voltage V
2F
TP2 V*
Accelerator position signal voltage for monitoring
V 2H
VS Vehicle speed
KMH
KPH 3L
F2-14
