THEFT-DETERRENT SYSTEM

IMMOBILIZER SYSTEM

OUTLINE

• The construction and operation is the same as that of the current DEMIO, 121 DEMIO (DW) model.

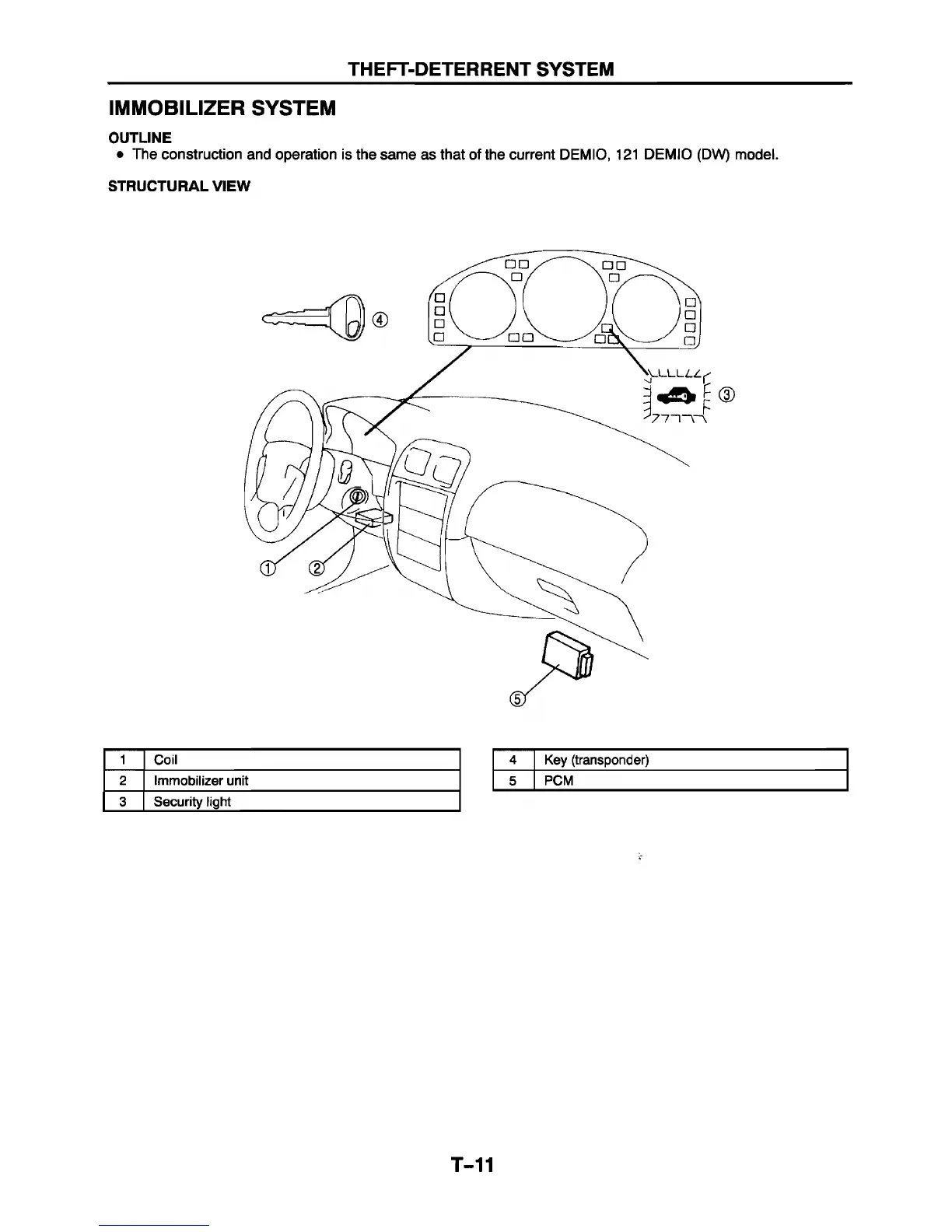

STRUCTURAL VIEW

Key (transponder)

5 PCM

Coil

2 Immobilizer unit

3 Security light

T-11
