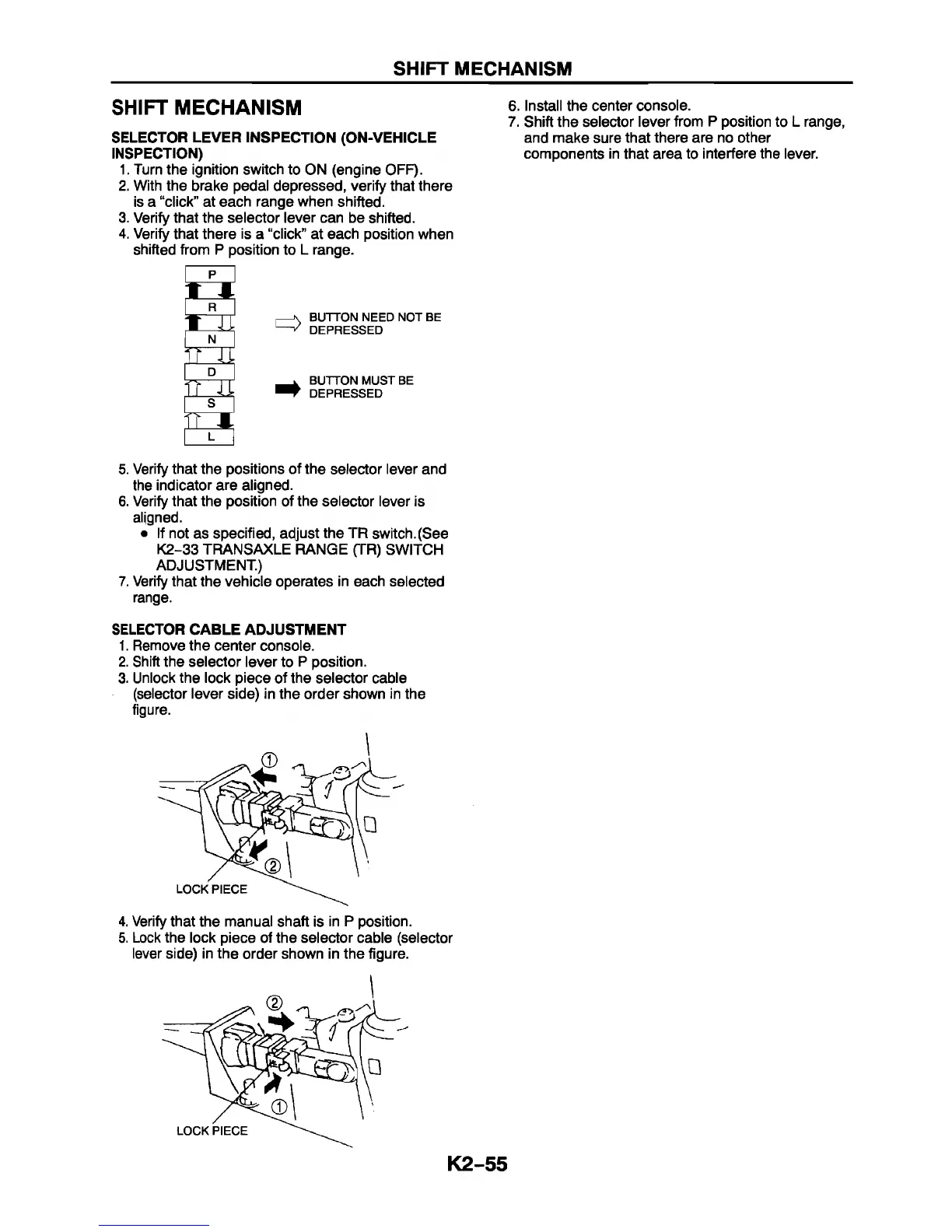

SHIFT MECHANISM
SHIFT MECHANISM
SELECTOR LEVER INSPECTION (ON-VEHICLE
INSPECTION)
1. Turn the ignition switch to ON (engine OFF).
2. With the brake pedal depressed, verify that there
is a “click” at each range when shifted.
3. Verify that the selector lever can be shifted.
4. Verify that there is a “click” at each position when
shifted from P position to L range.
6. Install the center console.
7. Shift the selector lever from P position to L range,
and make sure that there are no other
components in that area to interfere the lever.
p
n
Ft
N
D
I S I
— K BUTTON NEED NOT BE
— r DEPRESSED
BUTTON MUST BE
DEPRESSED
5. Verify that the positions of the selector lever and
the indicator are aligned.
6. Verify that the position of the selector lever is
aligned.
• If not as specified, adjust the TR switch.(See
K2-33 TRANSAXLE RANGE (TR) SWITCH
ADJUSTMENT.)
7. Verify that the vehicle operates in each selected
range.
SELECTOR CABLE ADJUSTMENT
1. Remove the center console.
2. Shift the selector lever to P position.
3. Unlock the lock piece of the selector cable
(selector lever side) in the order shown in the
figure.
4, Verify that the manual shaft is in P position.
5. Lock the lock piece of the selector cable (selector
lever side) in the order shown in the figure.
K2-55
