AUTOMATIC TRANSAXLE
Note
• If all the previous sealant cannot be removed
from a bolt, replace the bolts.
• Do not apply sealant if a new bolts is used.
2. Install the drive plate.
3. Install the adapter.
4. Apply sealant to the drive plate mounting bolts and
install them.
5. Set the SST or equivalent against the drive plate.
Caution
• When installing sealant covered bolts,
tighten them immediately. Leaving these
bolts in a half installed condition could
cause them to be stuck that way, due to the
natural hardening or the sealant.

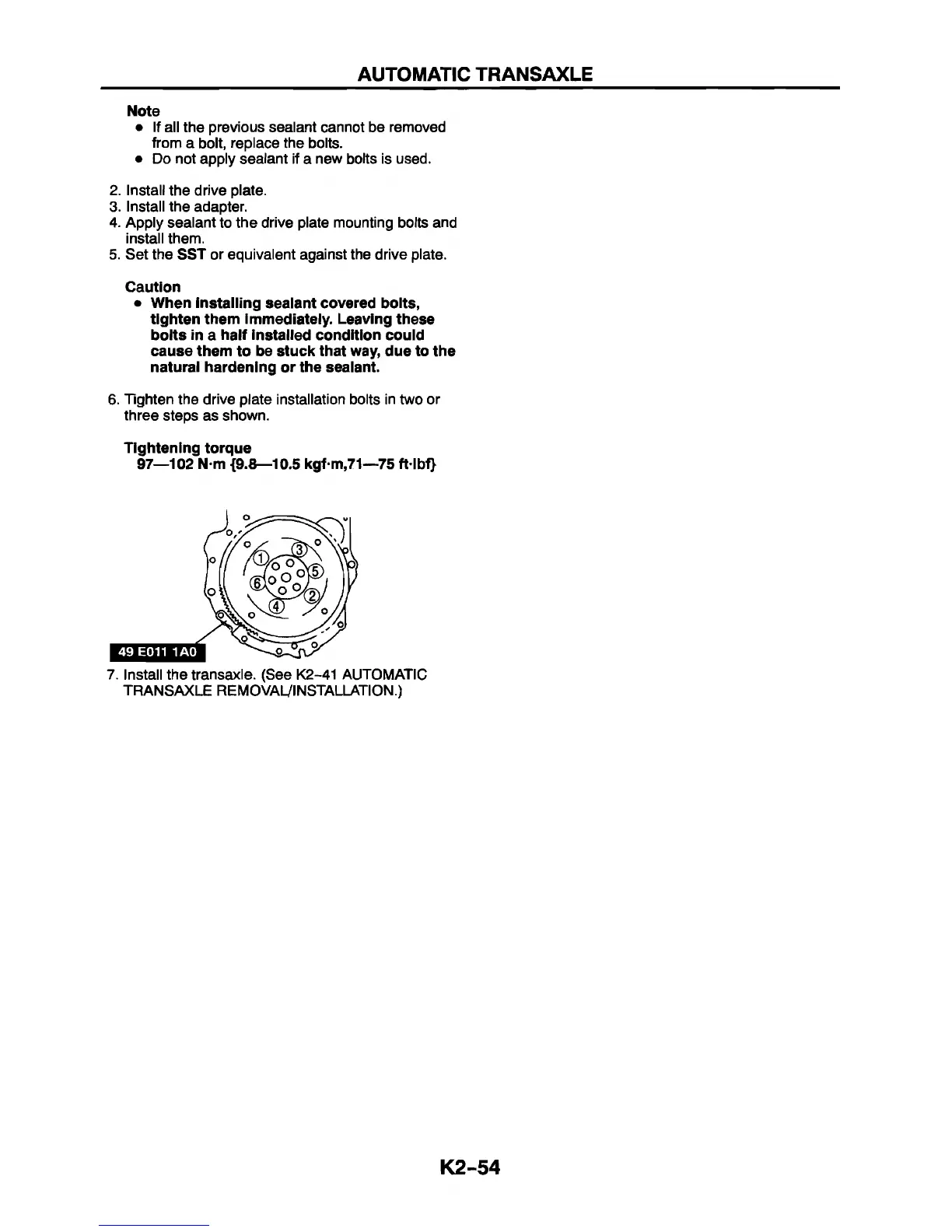

6. Tighten the drive plate installation bolts in two or
three steps as shown.
Tightening torque
97— 102 N m {9.8— 10.5 kgf m,71— 75 ft lbf}
7. Install the transaxle. (See K2-41 AUTOMATIC
TRANSAXLE REMOVAL/INSTALLATION.)
K2-54
