CONTROL SYSTEM
CONTROL SYSTEM

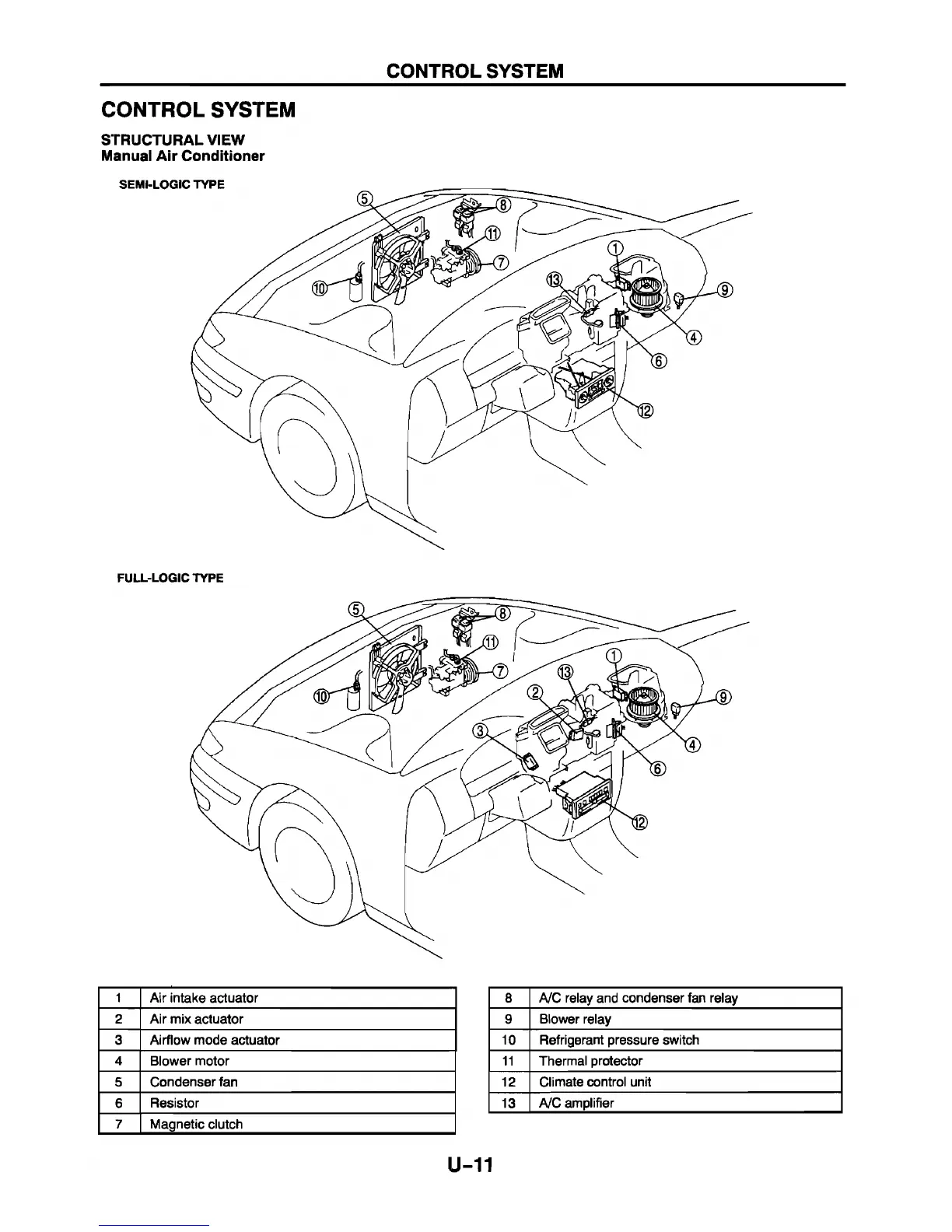

S T R U C T U R A L V IE W
M an u al A ir C o n d itio n e r
FULL-LOGIC TYPE
8 A/C relay and condenser fan relay
9 Blower relay
10
Refrigerant pressure switch
11
Thermal protector
12 Climate control unit
13
A/C amplifier
1
Air intake actuator
2 Air mix actuator
3 Airflow mode actuator
4 Blower motor
5
Condenser fan
6
Resistor
7
Magnetic clutch
U-11
