Mazda 626 - Front Door Disassembly;Assembly

SUPPLEMENTAL SERVICE INFORMATION, DOOR
SUPPLEMENTAL SERVICE
INFORMATION
The following changes and/or additions have been
made since publication of the Mazda 626 Workshop
Manual (1577-10-97D), Mazda 626 Station Wagon
Workshop Manual Supplement (1603-10-97J).
Front door
• Disassembly/Assembly procedure has been
modified
Front power window regulator
• Disassembly/Assembly procedure has been
added
Power window motor
• Inspection procedure has been added
• Resetting procedure has been added (driver-side)
• Automatic window return function procedure has
been added
Power window main switch
• Inspection procedure has been modified
Trunk lid lock-link switch
• Inspection procedure has been added
Liftgate lock-link switch
• Inspection procedure has been added
Door lock timer unit
• Inspection procedure has been modified
Keyless unit
• Removal/Installation procedure has been modified
• Inspection procedure has been modified
Transmitter battery
• Replacement procedure has been modified
• Inspection procedure has been modified
Trunk lid
• Removal/Installation procedure has been modified
• Adjustment procedure has been modified
liftgate
• Removal/Installation procedure has been modified
• Adjustment procedure has been modified
Bumper
• Removal/Installation procedure has been modified
Radiator grille
• Removal/Installation procedure has been modified
Console
• Removal/Installation procedure has been added
• Disassembly/Assembly procedure has been
modified
• Adjustment procedure has been added
Front seat
• Disassembly/Assembly procedure has been
modified
Troubleshooting
• Power window system has been added

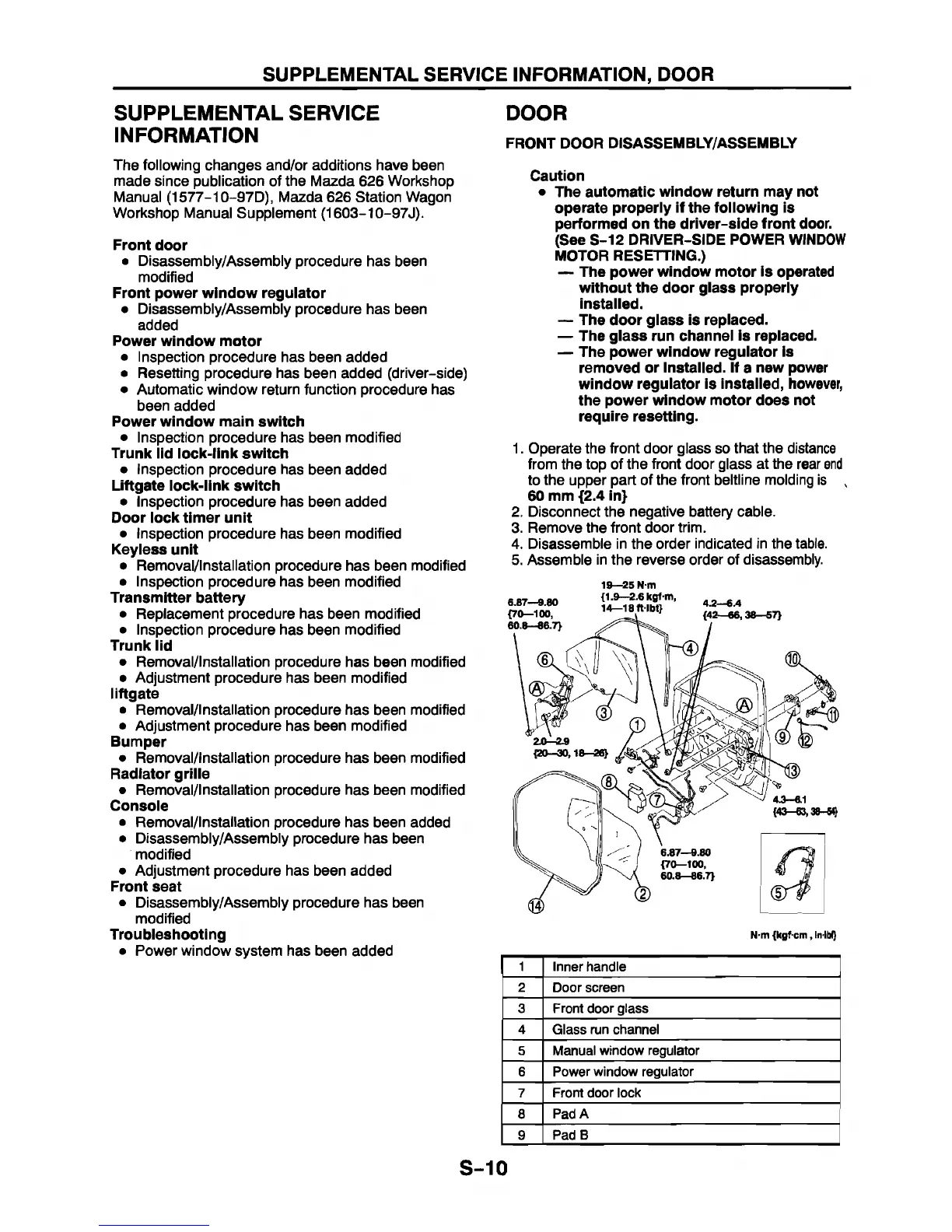

DOOR
FRONT DOOR DISASSEMBLY/ASSEMBLY
Caution
• The automatic window return may not
operate properly if the following is
performed on the driver-side front door.
(See S-12 DRIVER-SIDE POWER WINDOW
MOTOR RESETTING.)
— The power window motor is operated
without the door glass properly
installed.
— The door glass is replaced.
— The glass run channel is replaced.
— The power window regulator is
removed or Installed. If a new power
window regulator is installed, however,
the power window motor does not
require resetting.
1. Operate the front door glass so that the distance
from the top of the front door glass at the rear end
to the upper part of the front beltline molding is v
60 mm {2.4 in}
2. Disconnect the negative battery cable.
3. Remove the front door trim.
4. Disassemble in the order indicated in the table.
5. Assemble in the reverse order of disassembly.
19—25 Nm
1
Inner handle
2 Door screen
3 Front door glass
4
Glass run channel
5
Manual window regulator
6
Power window regulator
7
Front door lock
8
Pad A
9 Pad B
