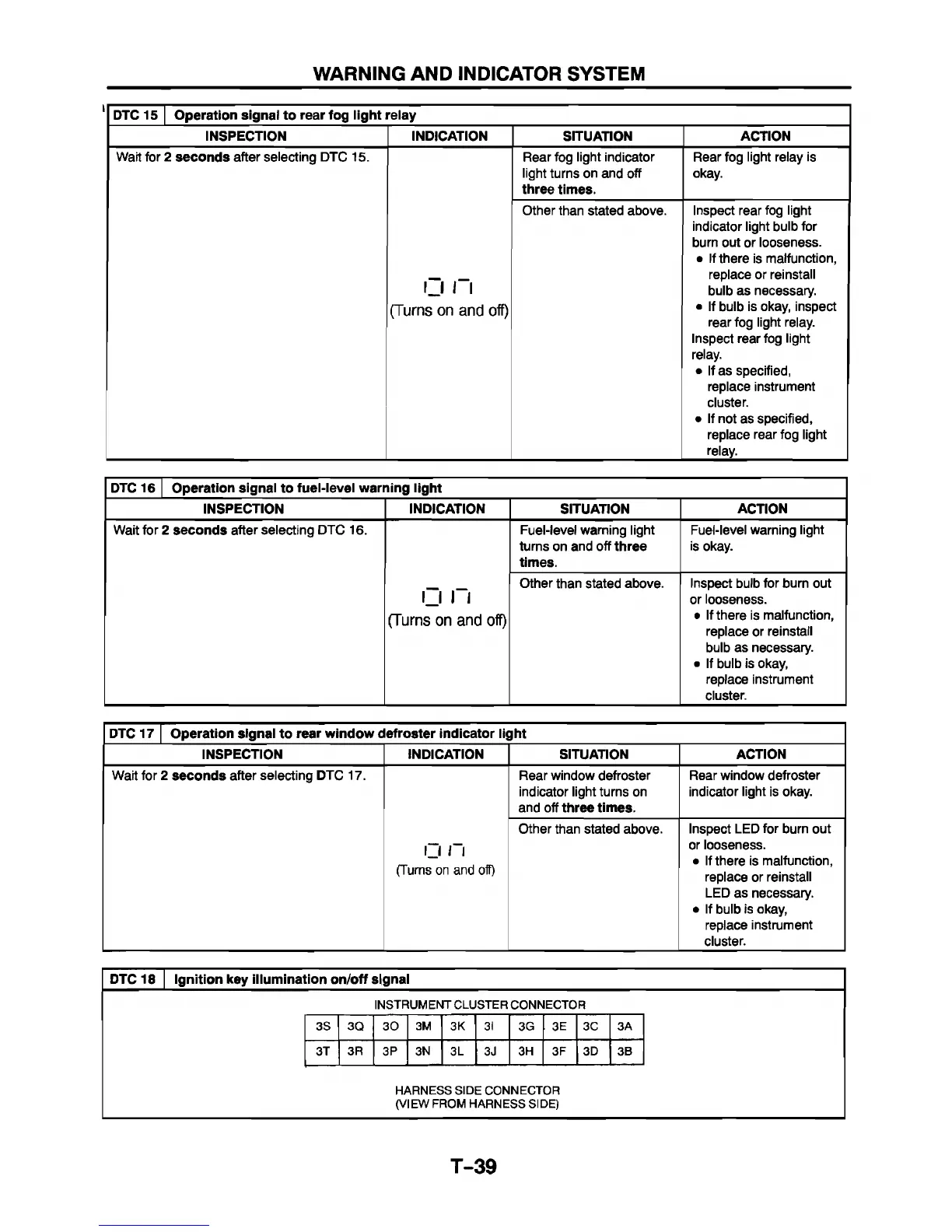

WARNING AND INDICATOR SYSTEM
I
DTC 15 Operation signal to rear fog light relay
INSPECTION INDICATION SITUATION ACTION
Wait for 2 seconds after selecting DTC 15.
I J n
(Turns on and off)
Rear fog light indicator
light turns on and off
three times.
Rear fog light relay is
okay.
Other than stated above.
Inspect rear fog light
indicator light bulb for
burn out or looseness.
• If there is malfunction,
replace or reinstall
bulb as necessary.
• If bulb is okay, inspect
rear fog light relay.
Inspect rear fog light
relay.
• If as specified,
replace instrument
cluster.
• If not as specified,
replace rear fog light
relay.
DTC 16 Operation signal to fuel-level warning light
INSPECTION INDICATION SITUATION
ACTION
Wait for 2 seconds after selecting DTC 16.
G n
(Turns on and off)
Fuel-level warning light
turns on and off three
times.
Fuel-level warning light
is okay.
Other than stated above. Inspect bulb for bum out
or looseness.
• If there is malfunction,
replace or reinstall
bulb as necessary.
• If bulb is okay,
replace instrument
cluster.
DTC 17 Operation signal to rear window defroster indicator light
INSPECTION INDICATION SITUATION ACTION
Wait for 2 seconds after selecting DTC 17.
O n
(Turns on and of)
Rear window defroster
indicator light turns on
and off three times.
Rear window defroster
indicator light is okay.
Other than stated above.
Inspect LED for burn out
or looseness.
• If there is malfunction,
replace or reinstall
LED as necessary.
• If bulb is okay,
replace instrument
cluster.
DTC 18 Ignition key illumination on/off signal
INSTRUMENT CLUSTER CONNECTOR
3S
3Q
30
3M 3K
3I 3G
3E
3C
3A
3T 3R
3P
3N 3L
3J
3H 3F 3D 3B
HARNESS SIDE CONNECTOR
(VIEW FROM HARN ESS SIDE)
T-39
