AUTOMATIC TRANSAXLE

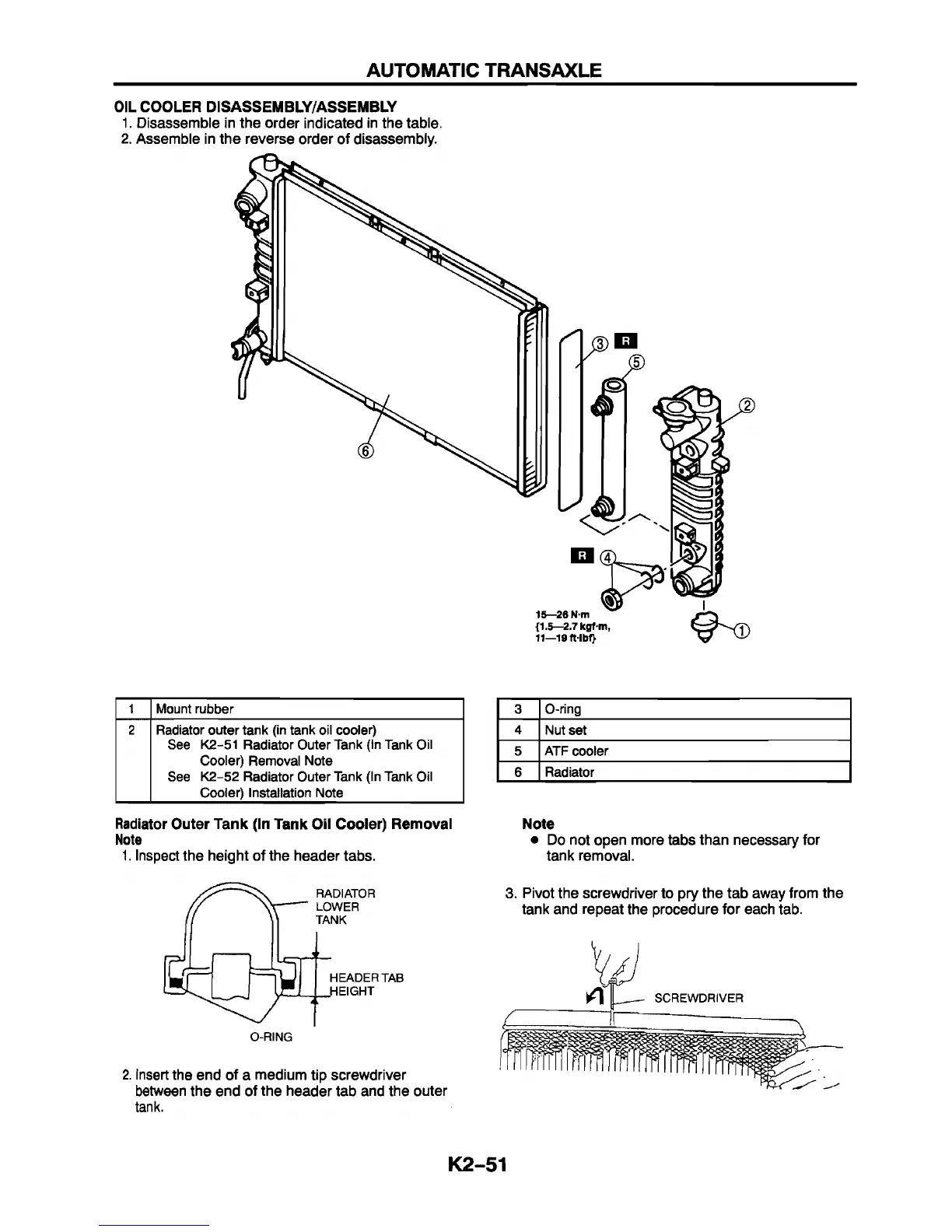

OIL COOLER DISASSEMBLY/ASSEMBLY
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
15—26 N-m
{1.5—2.7 kgf-m,
11—19 ftlbf}
1 Mount rubber
2 Radiator outer tank (in tank oil cooler)
See K2-51 Radiator Outer Tank (In Tank Oil
Cooler) Removal Note
See K2-52 Radiator Outer Tank (In Tank Oil
Cooler) Installation Note
3
O-ring
4
Nut set
5 ATF cooler
6 Radiator
Radiator Outer Tank (In Tank Oil Cooler) Removal
Note
1. Inspect the height of the header tabs.
Note
Do not open more tabs than necessary for
tank removal.
2. Insert the end of a medium tip screwdriver
between the end of the header tab and the outer
tank.
3. Pivot the screwdriver to pry the tab away from the
tank and repeat the procedure for each tab.
A
_ — SCREWDRIVER
C - ------------------ --
\
r g f fâ i p
m
m f i r n f i r n l ï ï f r f f i S
—r r r >
gBgüÎN.
K2-51
