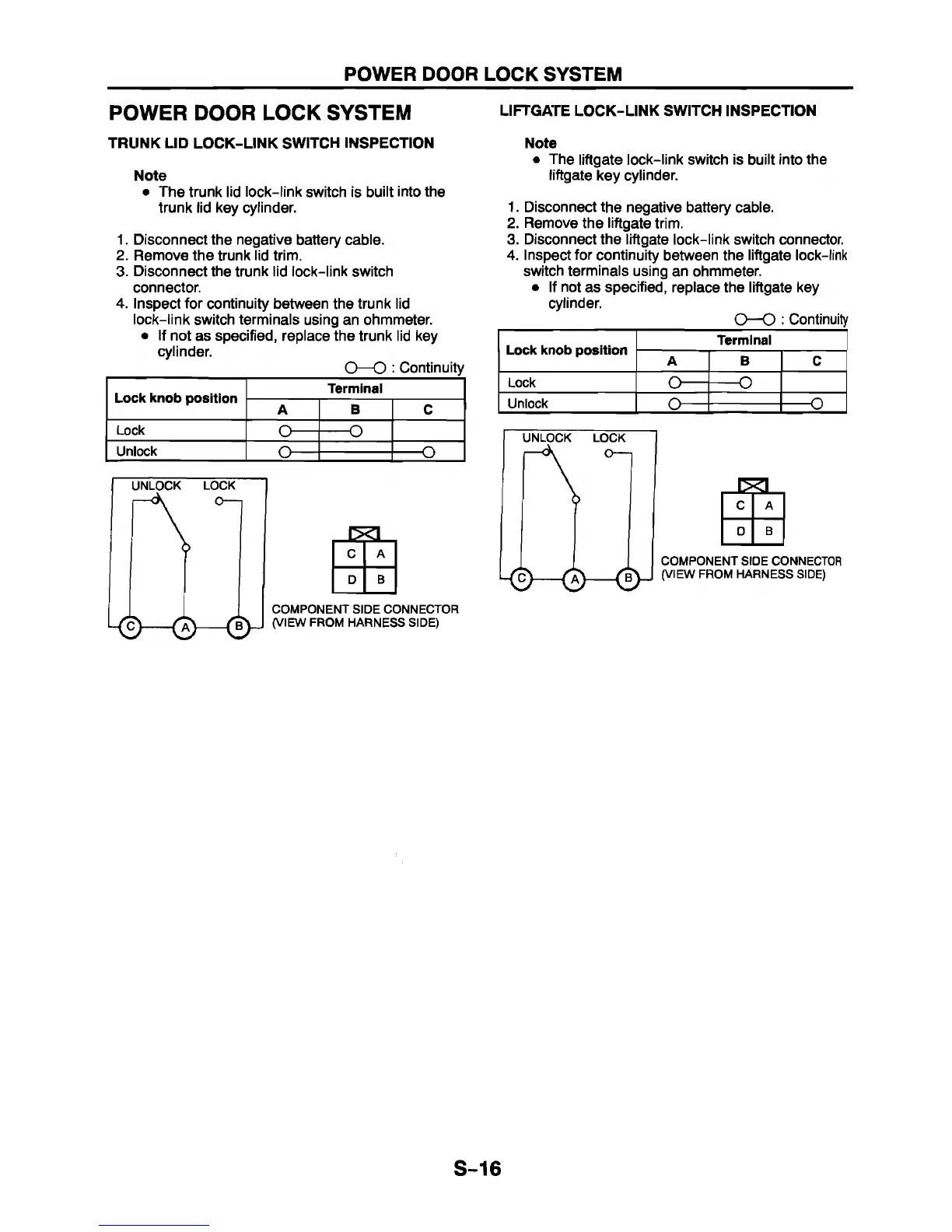

TRUNK LID LOCK-LINK SWITCH INSPECTION
Note
• The trunk lid lock—link switch is built into the
trunk lid key cylinder.
1. Disconnect the negative battery cable.
2. Remove the trunk lid trim.
3. Disconnect the trunk lid lock—link switch
connector.
4. Inspect for continuity between the trunk lid
lock—link switch terminals using an ohmmeter.
• If not as specified, replace the trunk lid key
cylinder.
O—O : Continuity
Lock knob position
Terminal
A B
c
Lock
o — — o
Unlock
O— — o
UNLOCK LOCK
°~1
“ © — ® —
JSL
C
A
D
B
COMPONENT SIDE CONNECTOR
(VIEW FROM HARNESS SIDE)
LIFTGATE LOCK-LINK SWITCH INSPECTION
Note
• The liftgate lock—link switch is built into the
liftgate key cylinder.
1. Disconnect the negative battery cable.
2. Remove the liftgate trim.
3. Disconnect the liftgate lock—link switch connector.
4. Inspect for continuity between the liftgate lock-link
switch terminals using an ohmmeter.
• If not as specified, replace the liftgate key
cylinder.
O—O : Continuity
Lock knob position
Terminal
A B
c
Lock
o — — o
Unlock
o —
------ 0
UNLOCK LOCK
ks)— © — © -*
c A
D
B
COMPONENT SIDE CONNECTOR
(VIEW FROM HARNESS SIDE)
