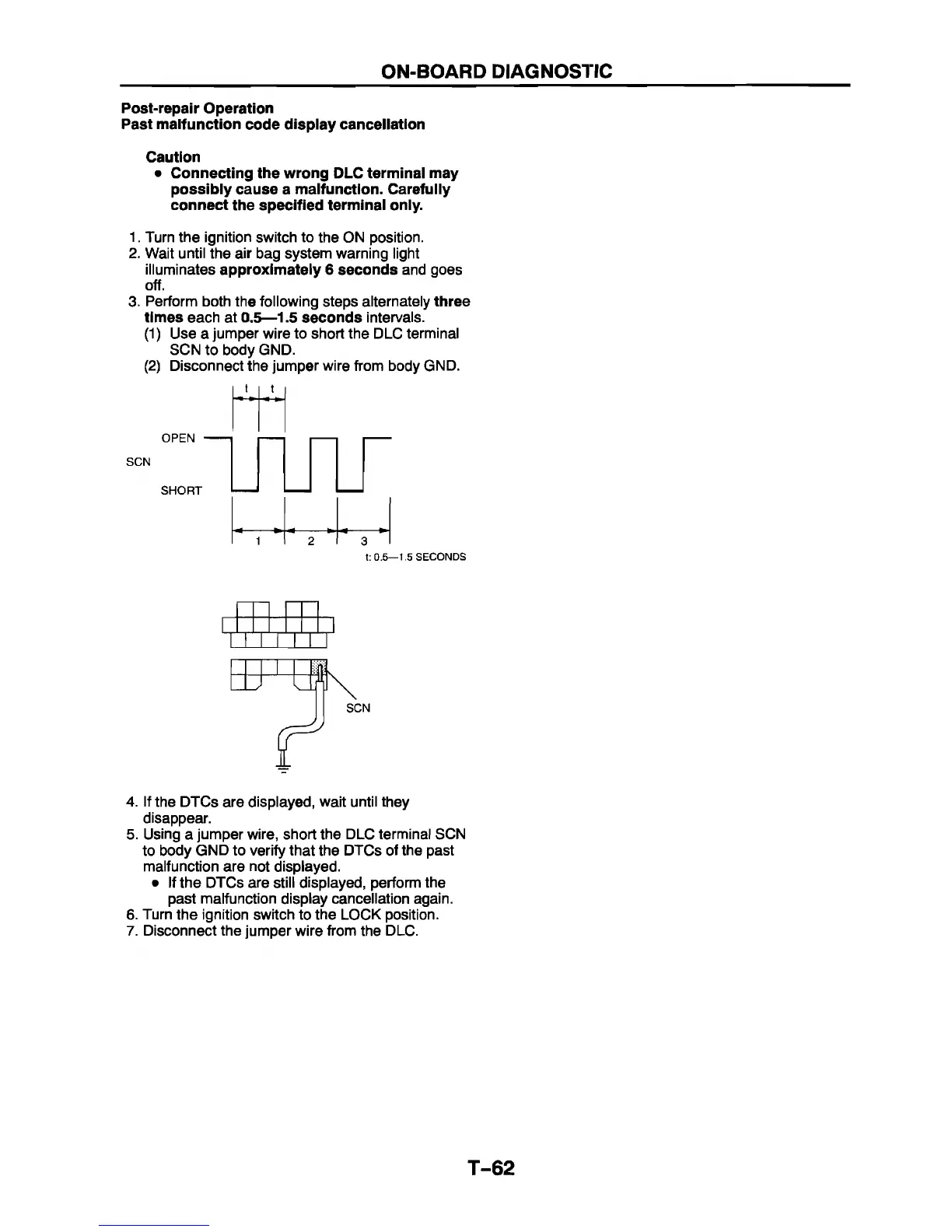

ON-BOARD DIAGNOSTIC
Post-repair Operation
Past malfunction code display cancellation
Caution
• Connecting the wrong DLC terminal may
possibly cause a malfunction. Carefully
connect the specified terminal only.
1. Turn the ignition switch to the ON position.
2. Wait until the air bag system warning light
illuminates approximately 6 seconds and goes
off.
3. Perform both the following steps alternately three
times each at 0.5—1.5 seconds intervals.
(1) Use a jumper wire to short the DLC terminal
SCN to body GND.
(2) Disconnect the jumper wire from body GND.
t
t
OPEN
-------
SCN
SHORT
1
2
r 3
t: 0.5— 1.5 SECONDS
4. If the DTCs are displayed, wait until they
disappear.
5. Using a jumper wire, short the DLC terminal SCN
to body GND to verify that the DTCs of the past
malfunction are not displayed.
• If the DTCs are still displayed, perform the
past malfunction display cancellation again.
6. Turn the ignition switch to the LOCK position.
7. Disconnect the jumper wire from the DLC.
T-62
