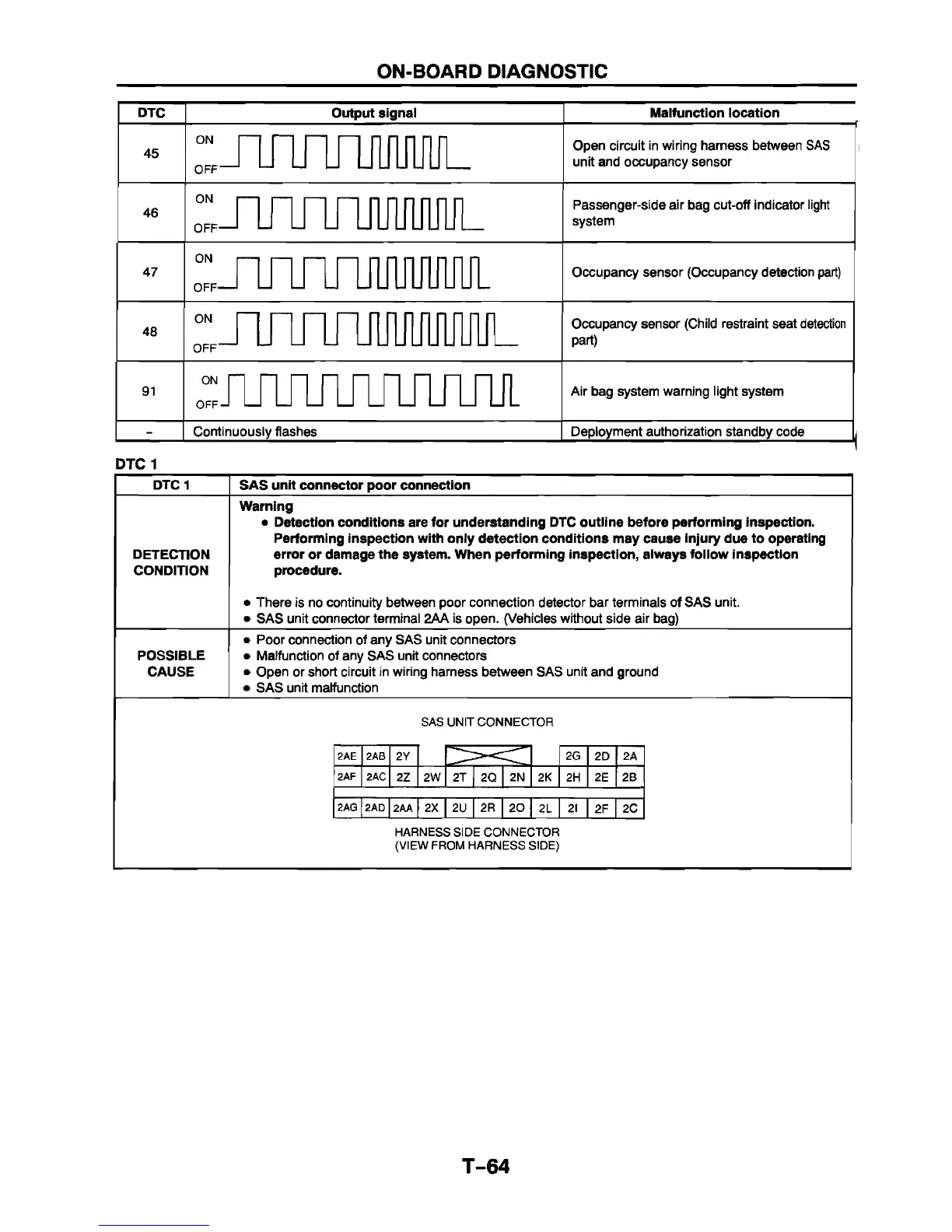

ON-BOARD DIAGNOSTIC
DTC O utput signal
M alfunction location
45
rjmnnjMUL
Open circuit in wiring harness between SAS
unit and occupancy sensor
46
Passenger-side air bag cut-off indicator light
system
47
Occupancy sensor (Occupancy detection part)
48
Occupancy sensor (Child restraint seat detection
part)
91 Air bag system warning light system
-
Continuously flashes Deployment authorization standby code
DTC 1
DTC 1
DETECTION
CONDITION
SAS unit connector poor connection
W arning
• Detection conditions are fo r understanding DTC outlin e before perform ing inspection.
Perform ing inspection with o nly de tection conditions m ay cause in jury due to operating
erro r or damage the system . W hen perform ing inspection, always fo llo w inspection
procedure.
• There is no continuity between poor connection detector bar terminals of SAS unit.
• SAS unit connector terminal 2AA is open. (Vehicles without side air bag)
• Poor connection of any SAS unit connectors
POSSIBLE • Malfunction of any SAS unit connectors
CAUSE • Open or short circuit in wiring harness between SAS unit and ground
• SAS unit malfunction
_________________________________________________
SAS UNIT CONNECTOH
2AE 2AB
2Y
X T
2G 2D 2A
2AF
2AC
2Z
2W 2T 2Q
2N 2K
2H 2E
2B
2AG
2AD
2AA 2X
2U
2R 20
2L
21
2F
2C
HARNESS SIDE CONNECTOR
(VIEW FROM HARNESS SIDE)
T-64
