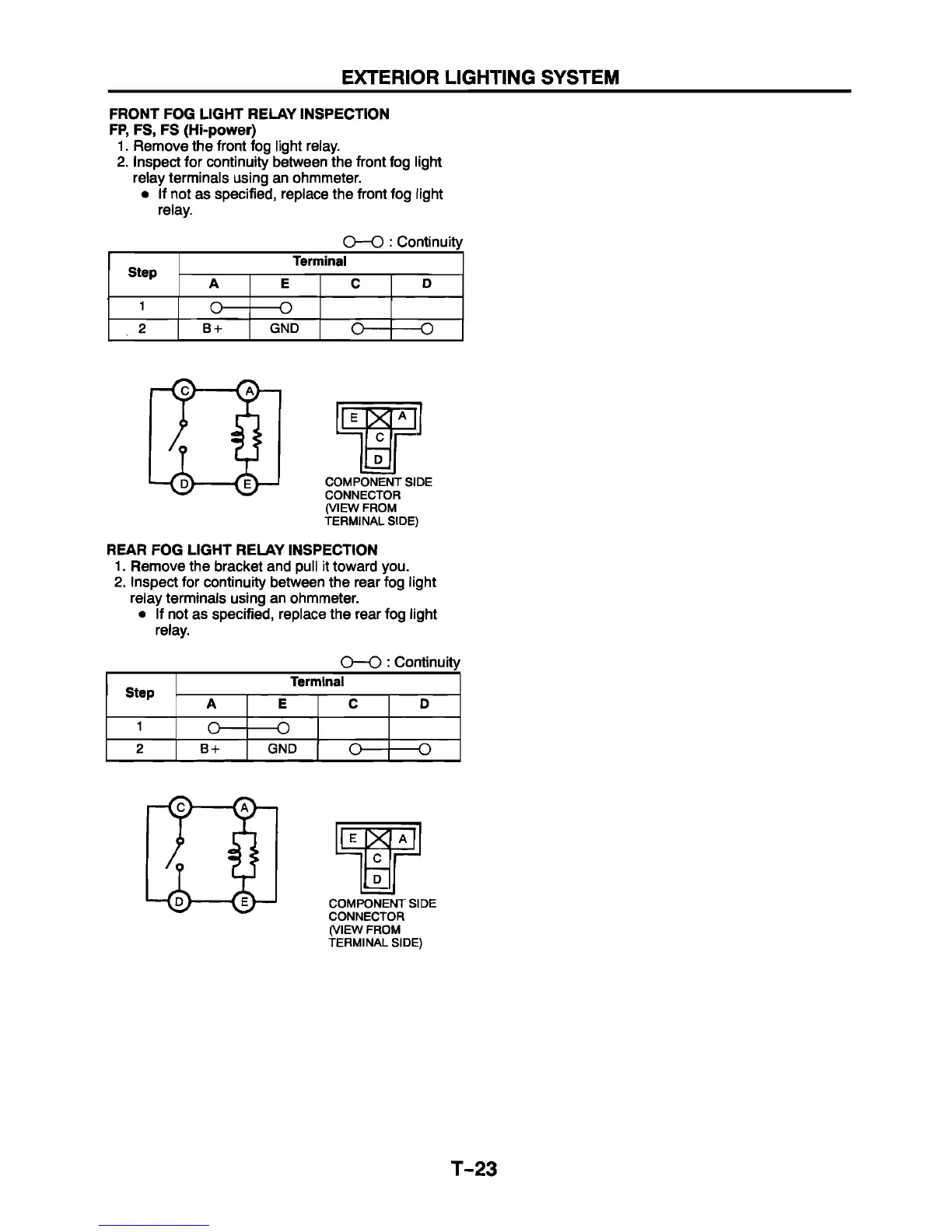

EXTERIOR LIGHTING SYSTEM
FRONT FOG LIGHT RELAY INSPECTION
FP, FS, FS (Hi-power)
1. Remove the front fog light relay.
2. Inspect for continuity between the front fog light
relay terminals using an ohmmeter.
• If not as specified, replace the front fog light
relay.
________________________________ Q— Q : Continuity
Step
Terminal
A E
C
D
1
0 — — o
2 B +
GND
o — — o
E
X
A
c
D
COMPONENT SIDE
CONNECTOR
(VIEW FROM
TERMINAL SIDE)
REAR FOG LIGHT RELAY INSPECTION
1. Remove the bracket and pull it toward you.
2. Inspect for continuity between the rear fog light
relay terminals using an ohmmeter.
• If not as specified, replace the rear fog light
relay.
O— O : Continuity
Step
Terminal
A E
C
D
1
0 ------ — o
2 B +
GND
o -----
— o
E
X
A
C
D
COMPONENT SIDE
CONNECTOR
(VIEW FROM
TERMINAL SIDE)
T-23
