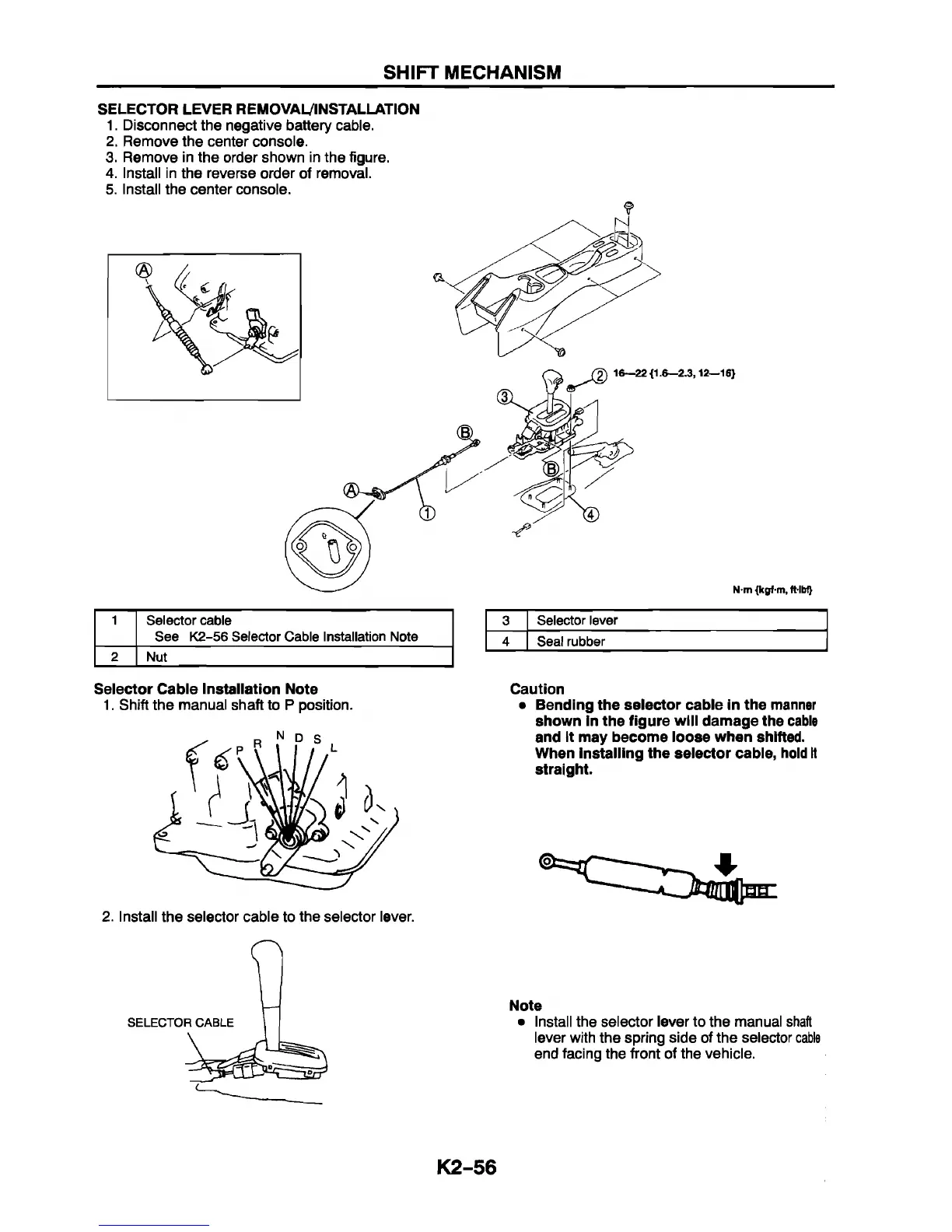

SHIFT MECHANISM
SELECTOR LEVER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the center console.
3. Remove in the order shown in the figure.
4. Install in the reverse order of removal.
5. Install the center console.
1 Selector cable
See K2-56 Selector Cable Installation Note
2
Nut
3
Selector lever
4
Seal rubber
Selector Cable Installation Note
1. Shift the manual shaft to P position.
2. Install the selector cable to the selector lever.
SELECTOR CABLE
Caution
• Bending the selector cable in the manner
shown in the figure will damage the cable
and It may become loose when shifted.
When installing the selector cable, hold It
straight.
Note
• Install the selector lever to the manual shaft
lever with the spring side of the selector cable
end facing the front of the vehicle.
