BUMPER
BUMPER

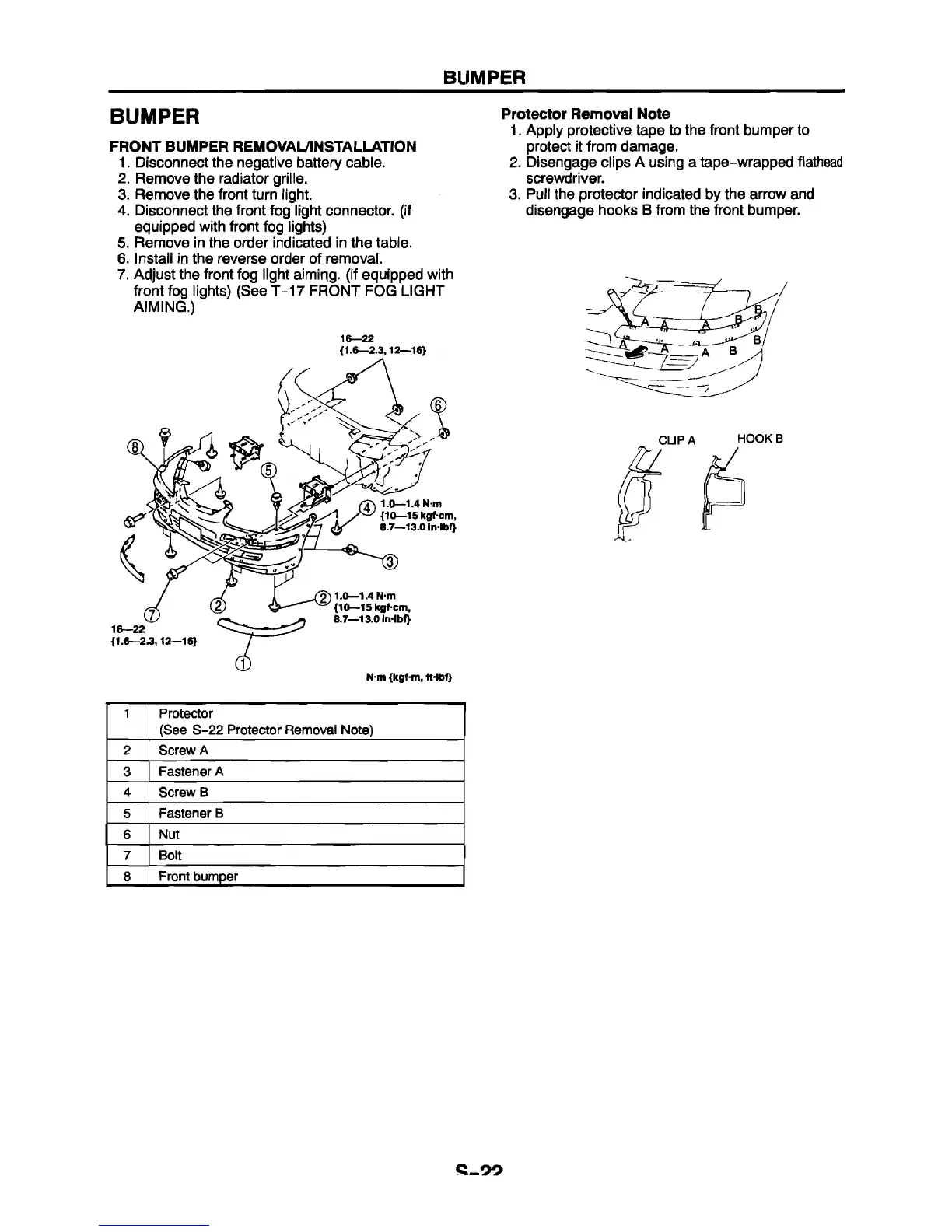

FRONT BUMPER REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the radiator grille.
3. Remove the front turn light.
4. Disconnect the front fog light connector, (if
equipped with front fog lights)
5. Remove in the order indicated in the table.
6. Install in the reverse order of removal.
7. Adjust the front fog light aiming, (if equipped with
front fog lights) (See T-17 FRONT FOG LIGHT
AIMING.)
16—22
{1.6—2.3,12—16}
Protector Removal Note
1. Apply protective tape to the front bumper to
protect it from damage.
2. Disengage clips A using a tape-wrapped flathead
screwdriver.
3. Pull the protector indicated by the arrow and
disengage hooks B from the front bumper.
C U PA
HOOK B
1
Protector
(See S-22 Protector Removal Note)
2 Screw A
3
Fastener A
4 Screw B
5
Fastener B
6 Nut
7
Bolt
8
Front bumper
5 - 9 9
