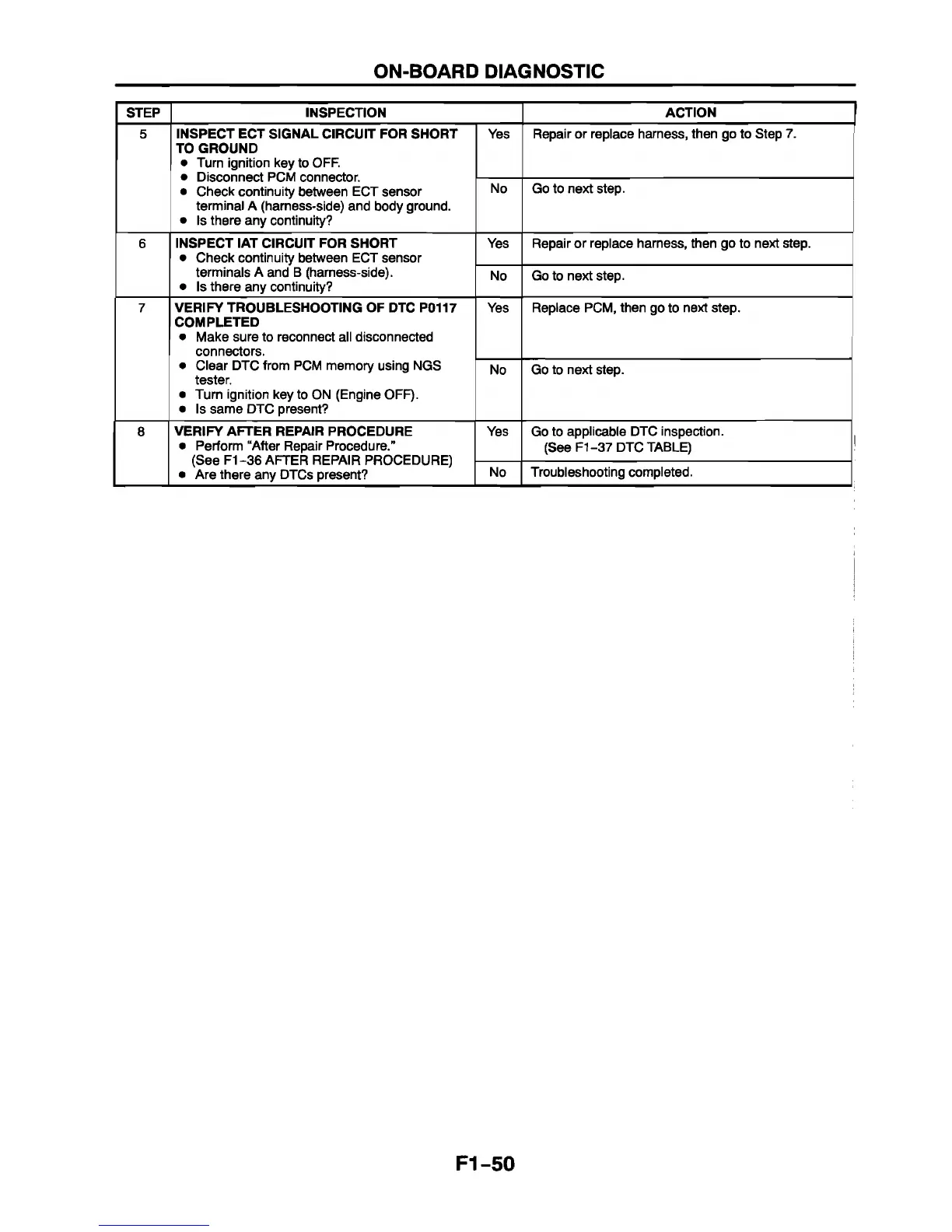

ON-BOARD DIAGNOSTIC
STEP INSPECTION
ACTION
5
INSPECT ECT SIGNAL CIRCUIT FOR SHORT
TO GROUND
• Turn ignition key to OFF.
• Disconnect PCM connector.
• Check continuity between ECT sensor
terminal A (harness-side) and body ground.
• Is there any continuity?
Yes
Repair or replace harness, then go to Step 7.
No Go to next step.
6
INSPECT IAT CIRCUIT FOR SHORT
• Check continuity between ECT sensor
terminals A and B (harness-side).
• Is there any continuity?
Yes
Repair or replace harness, then go to next step.
No Go to next step.
7
VERIFY TROUBLESHOOTING OF DTC P0117
COMPLETED
• Make sure to reconnect all disconnected
connectors.
• Clear DTC from PCM memory using NGS
tester.
• Turn ignition key to ON (Engine OFF).
• Is same DTC present?
Yes Replace PCM, then go to next step.
No Go to next step.
8
VERIFY AFTER REPAIR PROCEDURE
• Perform “After Repair Procedure.”
(See F1-36 AFTER REPAIR PROCEDURE)
• Are there any DTCs present?
Yes Go to applicable DTC inspection.
(See F1-37 DTC TABLE) 1
No Troubleshooting completed.
F1-50
