MCCORMICK MTX Series - Page 101

Operation
93
5
Range Skip Shift
This feature will allow gear shifts up to a factor of
4.

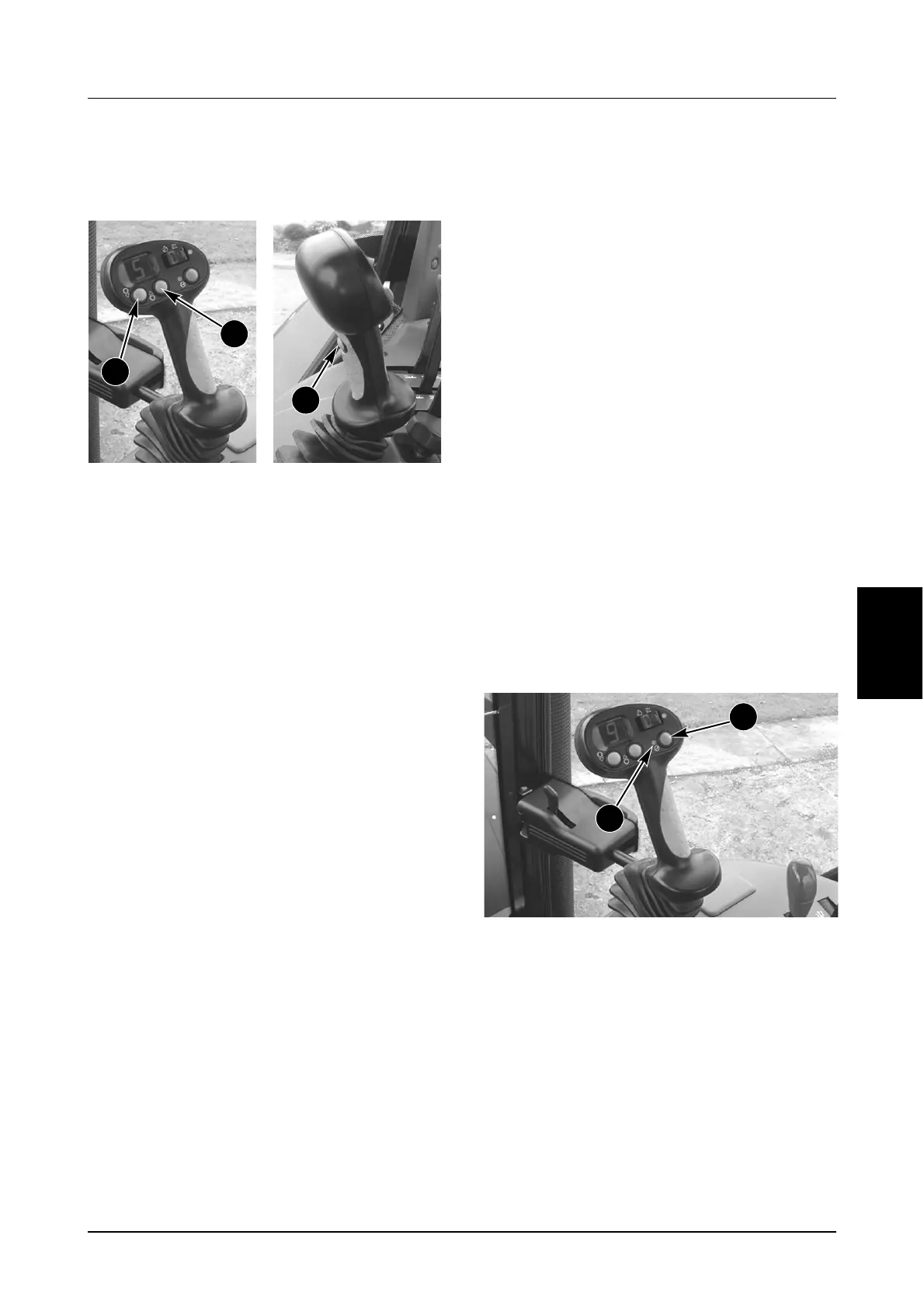

MD05M023C & 024A
Tractor Stationary
UP Gear Selection:
Pressing the Range Skip switch (6) in
conjunction with the UP Gear Selection switch (2)
will allow the transmission to shift up to the first
speed within the next range.
Example:
If the transmission is in gear 6 and you press
Range Skip and the UP Gear Selection Switch the
transmission will shift to gear 9.
OR
If the transmission is in gear 11 and you press
Range Skip and the UP Gear Selection Switch the
transmission will shift to gear 13.
DOWN Gear Selection:
Pressing the Range Skip switch (6) in
conjunction with the DOWN Gear Selection
switch (1) will allow the transmission to shift
down between the four ranges by a factor of 4.
Example:
If the transmission is in gear 12 and you press
Range Skip and the DOWN Gear Selection Switch
the transmission will shift to gear 8.
OR
If the transmission is in gear 10 and you press
Range Skip and the DOWN Gear Selection Switch
while moving, the transmission will shift to gear 6.
Tractor Moving
Pressing the Range Skip switch (6) in
conjunction with the UP Gear Selection switch (2)
will allow the transmission to shift up to the first
speed within the next range.
Example:
If the transmission is in gear 6 and you press
Range Skip and the UP Gear Selection Switch
while moving, the transmission will shift to gear 9.
OR
If the transmission is in gear 11 and you press
Range Skip and the UP Gear Selection Switch
while moving, the transmission will shift to gear 13.
NOTE: This function only works during ’UP’
shifting.
Soft Shift
The soft shift can be used to give a smoother gear
shift operation.
NOTE: This function will only work in forward gears
9 through 16, or reverse gears 9 through 13.
MD05M023D
In gear 9 or above, press the Soft Shift switch (4)
to activate this function. An indicator lamp (5) on
the multi control lever will illuminate to show soft
shift is activated.
If gear 8 or below is selected while soft shift is
activated, soft shift will automatically disengage
and will require re-engagement when gear 9 or
above is selected.
6
2
1
5
4
