Operation
150

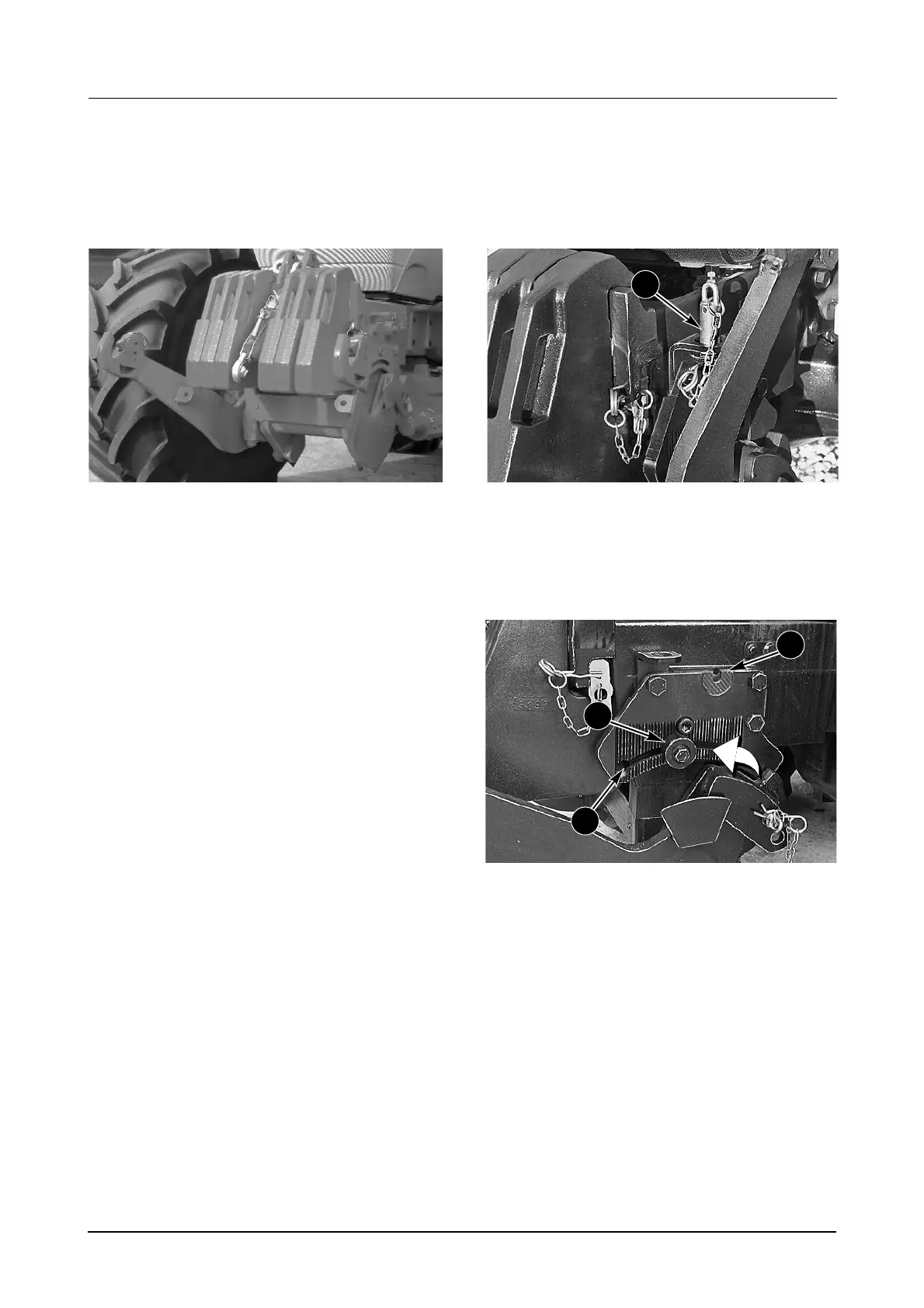

FRONT HITCH (If Equipped)
Hitch Preparation
Hitch System
MD05M029
The front hitch system is operated through the
third remote hydraulic valve circuit. Move the
lever rearward to raise the linkage and forward to
lower.
NOTE: The linkage is power lifted and is power
lowered. The linkage is free to float upward on
partial stroke.
The hitch is designed for Category II implements
only. Lower links are rigidly mounted with no
lateral movement.
The lower links have claw ends and the top link a
ball end. The top link can be adjusted for length
and has three rigid positions and two float
positions. Six front end ballast weights can be
fitted.
Lower Links Stored Position
DP97N023
Install the pins (1) thru the brackets on the front
bolster and lower links as shown to retain the lower
links in the stored position.
Lower Links Stop Adjustment
DP98E109
The hitch lowered position can be adjusted on
the left side of the hitch by changing the position
of the lowering stop (2) in the slot (3). Store the
stop in position (1) when not required.
1
2
3
1
