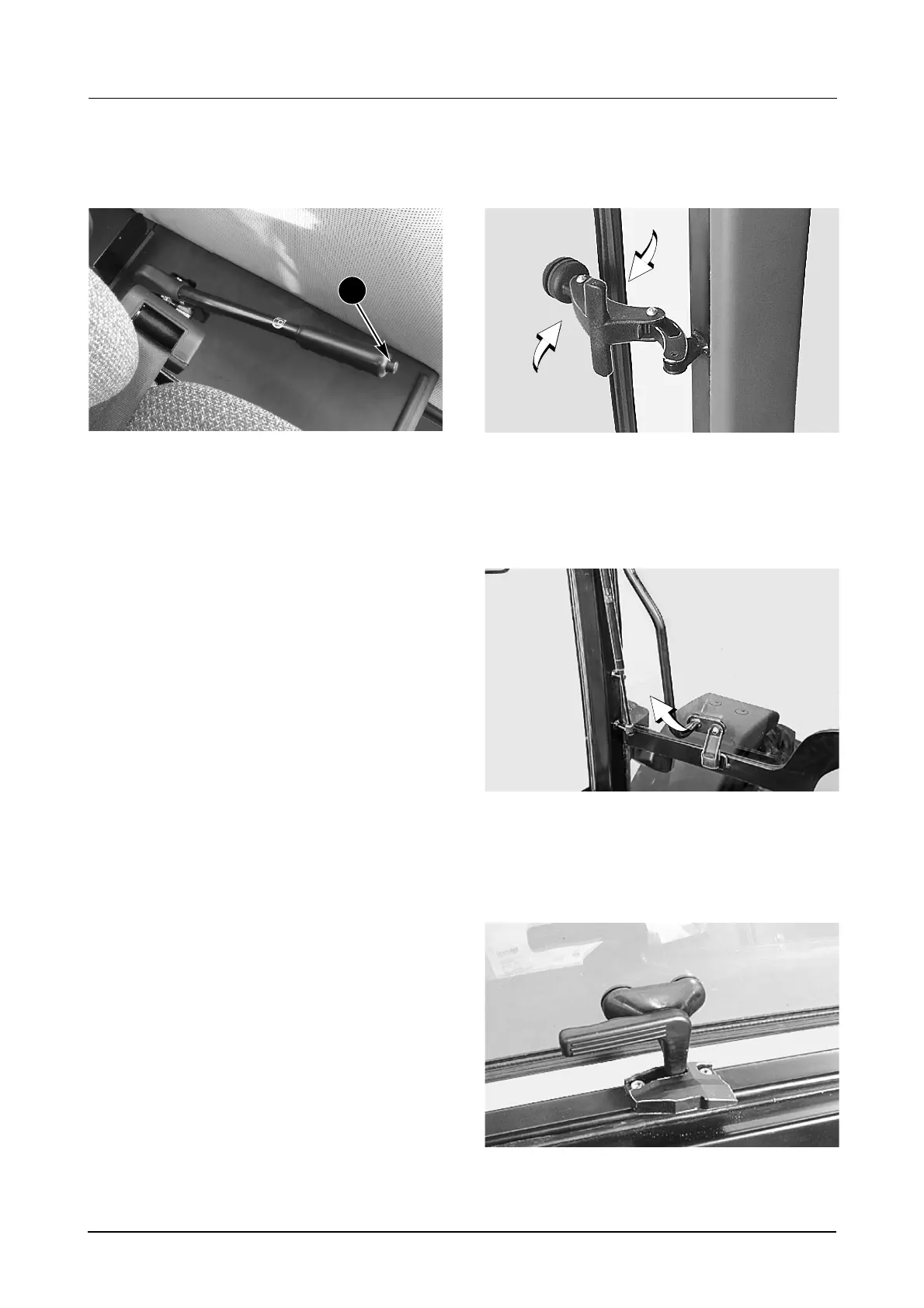

ADDITIONAL CAB FEATURES
Park Brake
MD05M003
The park brake is located at the LH side of the
operators seat. Pull the lever fully up to engage the
park brake. If you set the tractor in motion release
the park brake after putting the tractor in gear, see
note. Press the button (1) on the end of the lever IN
and lower the lever to release the brake.
When the park brake is engaged the warning lamp
on the instrument cluster will illuminate when the
keyswitch is turned to ON. The master warning
lamp will flash when the engine is started.
The lamps will go off when the brake is disengaged.
NOTE: An audible alarm will sound, when the
engine is running, if forward or reverse is selected
when the park brake is engaged.
NOTE: Driving the tractor with the park brake
partially engaged will cause damage to internal
transmission components. Make sure brake is fully
off.
Cab Side Windows
DD95M220
Push the window arm rearward and then push the
arm out until the window stops.
Opening Windshield
(If Equipped)
DP96H290
Release catches, (one each side) and push the
bottom outward. DO NOT open the windshield
when using a front loader.
Cab Rear Window
DD95M217
Ventilation - The lever in the slot (as shown).
Emergency Exit - window fully open.
