MCCORMICK MTX Series - 50 Hour Service

Routine Maintenance
207
7
NOTE: Complete the 10 hour, (or daily), service plus the following.
Grease Points - 2WD Axle
NOTE: Use McCormick Multi-Purpose Lithium Grease.
NOTE: In severe conditions lubricate these points more frequently.

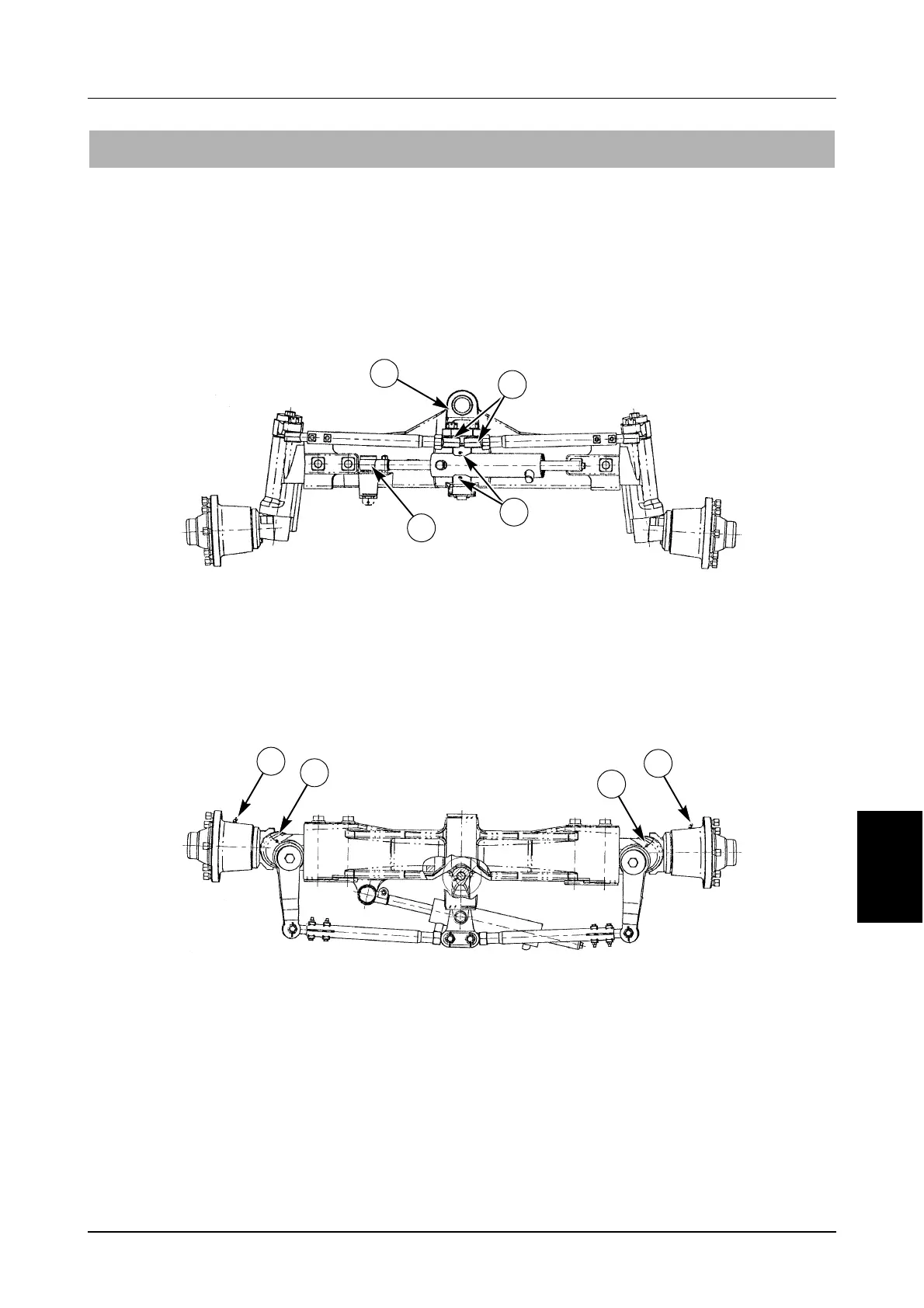

Two Wheel Drive (2WD) Front Axle (If Equipped)
DS97A162
DS97A161
50 HOUR SERVICE
3
1
2
4
1. AXLE PIVOT PIN
(1 POINT)
3. STEERING CYLINDER TRUNNION
(2 POINTS)
2. TRACK ROD BALL JOINTS
(2 POINTS)
4. STEERING CYLINDER BALL JOINT
(1 POINT)
5
6
6
5
5. FRONT WHEEL HUB BEARING
(2 POINTS)
6. FRONT AXLE SWIVEL
(2 POINTS)
