MCCORMICK MTX Series - Implement;Trailer Drawbar Dimensions

Operation
110

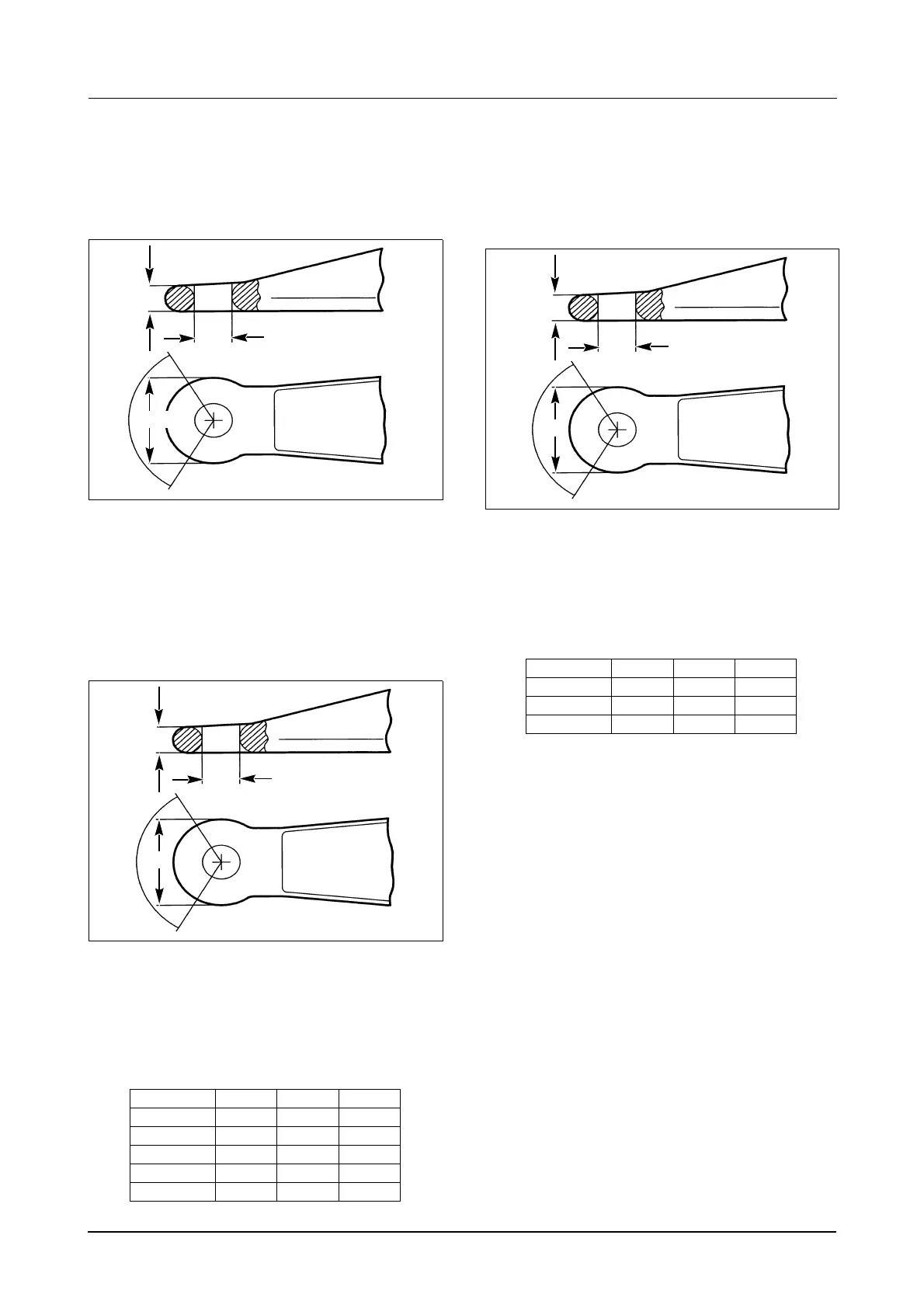

IMPLEMENT/TRAILER DRAWBAR DIMENSIONS
A) For Piton-Fixe, Auto Hitch (B.S.2)
and Swinging Drawbar
OM0881
When using a Piton-Fixe, Auto Hitch or swinging
Drawbar, the trailer/implement drawbar must be to
ISO 5692 standard dimensions. If any other
drawbar is used, damage to your tractor can/will
occur.
B) Manual and Automatic Clevis Type
Trailer Hitches - (EURO Clevis)
OM0881
When using a manual or automatic clevis type
trailer hitch, the trailer/implement drawbar must be
to DIN 74054, DIN 74053, DIN 11043, DIN 11026 or
ISO 5692 standard dimensions. If any other
drawbar is used, damage to your tractor can/will
occur.
C) Automatic Clevis Type Trailer Hitch
(with Special Coupling) -
(GERMAN CLEVIS)
OM0881
When using this type of trailer hitch, ONLY use a
trailer/implement drawbar to DIN 74054, DIN 11043
and DIN 11026 standard dimensions. This will
improve connection between hitch and trailer/
implement drawbar. If any other drawbar is used,
damage to your tractor can/will occur.
If this type of trailer hitch is fitted a decal will be
positioned near the hitch clevis.
X (mm) Y (mm) Z (mm)
DIN 74053 45 50 115
DIN 74054 30 40 100
DIN 11026 42 40 100
DIN 11043 32 40 100
ISO 5692 30 50 110
X
110 mm
120°
50 mm
30 mm
Z
120°
Y
X
X (mm) Y (mm) Z (mm)
DIN 74054 30 40 100
DIN 11026 42 40 100
DIN 11043 32 40 100
Z
120°
Y
X
