Instruments and Programming
52
INSTRUMENTATION

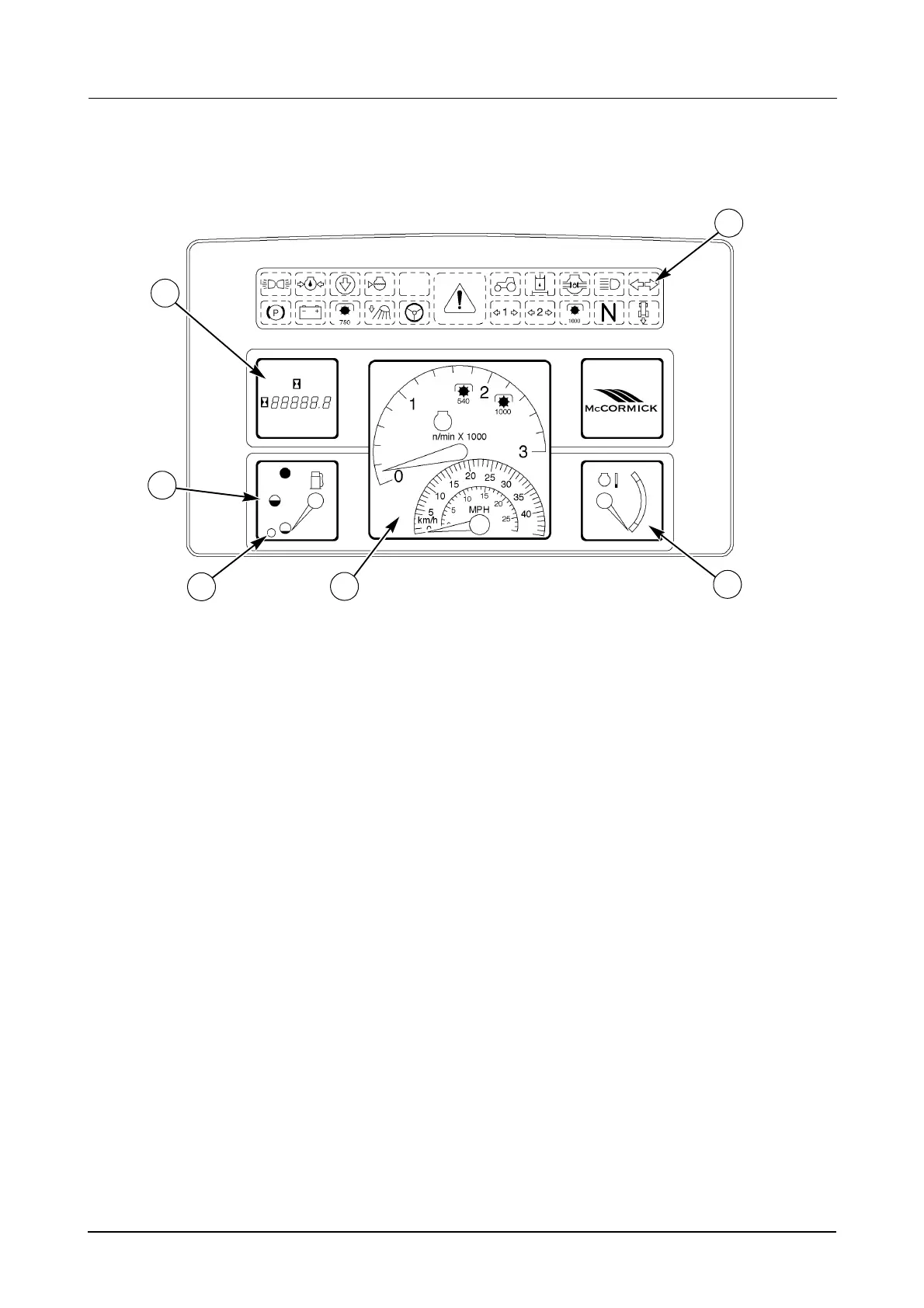

STANDARD (ANALOG) INSTRUMENT CLUSTER (IF EQUIPPED)
DS99G181
1. INDICATOR LAMPS - see page 53 for details.
2. ENGINE COOLANT TEMPERATURE GAUGE -
Yellow area: low temperature.
Green area: normal working temperature.
Red area: overheating.
IMPORTANT: If the pointer is in the red area, the
master warning lamp will flash. STOP THE
ENGINE AND CHECK THE CAUSE OF
OVERHEATING. Make sure the engine is cool
before starting any inspection.
3. TACHOMETER/SPEEDMETER -
Upper dial: engine revolutions per minute (rpm).
PTO symbols: correct engine rpm for the PTO
speed.
Lower dial: tractor speed in kilometers per hour
(km/h) outside, and miles per hour (mph) inside.
NOTE: If the rear tyre size is changed the
instrument cluster must be reprogrammed with the
new tyre size, See page 54 for correct procedure.
4. LOW FUEL WARNING LAMP
5. FUEL LEVEL GAUGE
6. ENGINE HOURMETER
1
2
3
4
5
6
