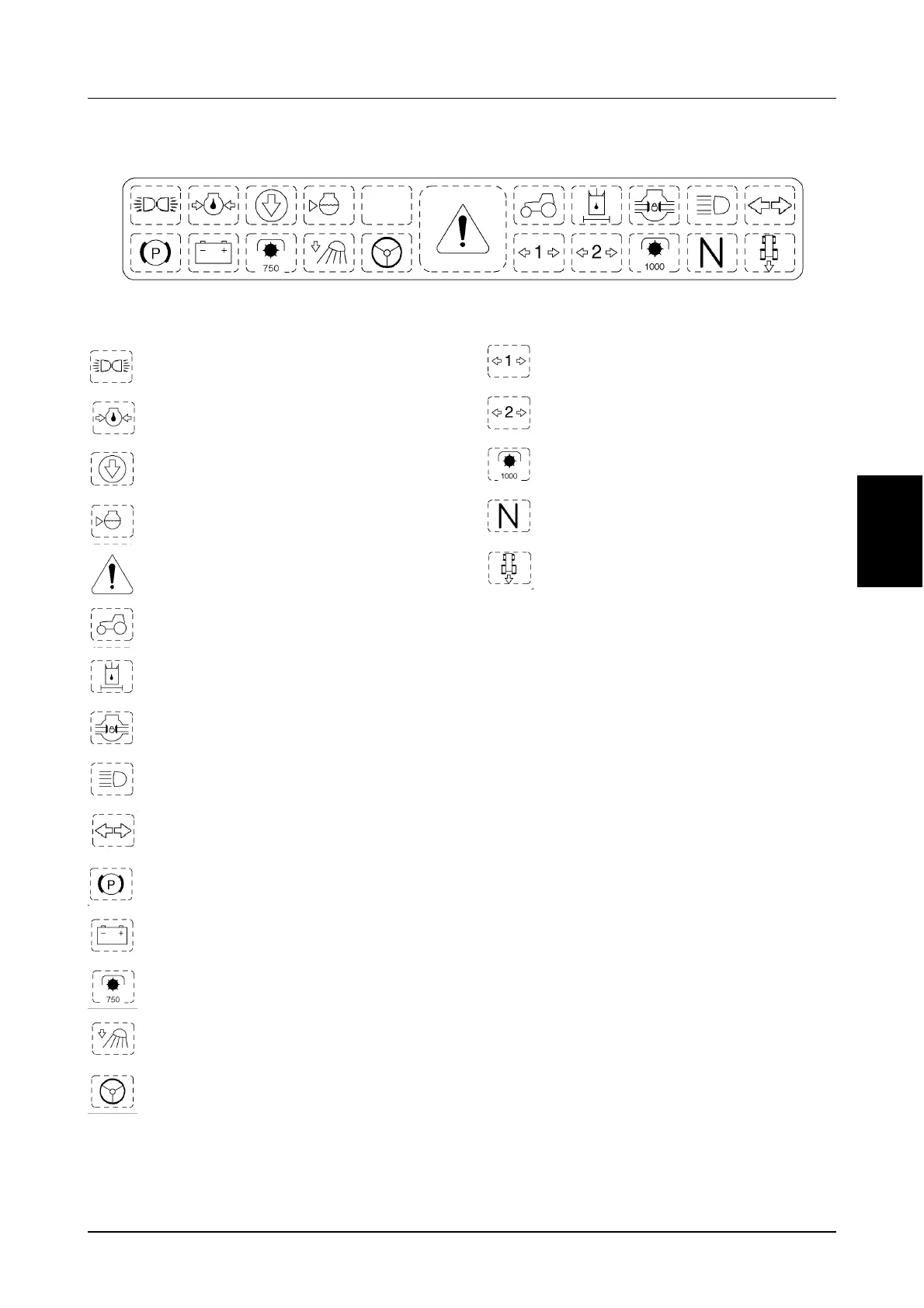

Indicator Lamps
DS99G183
1. POSITION LAMPS ILLUMINATED -
Green.
2. LOW ENGINE OIL PRESSURE WARNING
- Red.
3. ENGINE AIR FILTER RESTRICTION -
Amber.
4. LOW COOLANT LEVEL WARNING -
Red.
5. MASTER WARNING - Amber.
6. MFD ENGAGED - Green.
7. HYDRAULIC OIL FILTER RESTRICTION -
Red.
8. DIFFERENTIAL LOCK ENGAGED -
Green.
9. HEADLAMP HIGH BEAM -
Blue.
10. LEFT/RIGHT TURN SIGNAL -
Green.
11. PARK BRAKE ENGAGED -
Red.
12. ALTERNATOR CHARGE -
Red.
13. 750 RPM PTO ENGAGED -
Amber
14. LOWER WORKLAMPS - Amber.
15. AUXILIARY STEERING LOW
PRESSURE INDICATOR -
(30 km/h transmission only) - Amber.
16. FIRST TRAILER TURN SIGNAL -
Green.
17. SECOND TRAILER TURN SIGNAL -
Green.
18. 1000 RPM PTO ENGAGED -
Amber.
19. SHIFT F/N/R LEVER TO NEUTRAL -
Amber.
20. REVERSE GEAR SELECTED -
Green.
