Operation
157
5

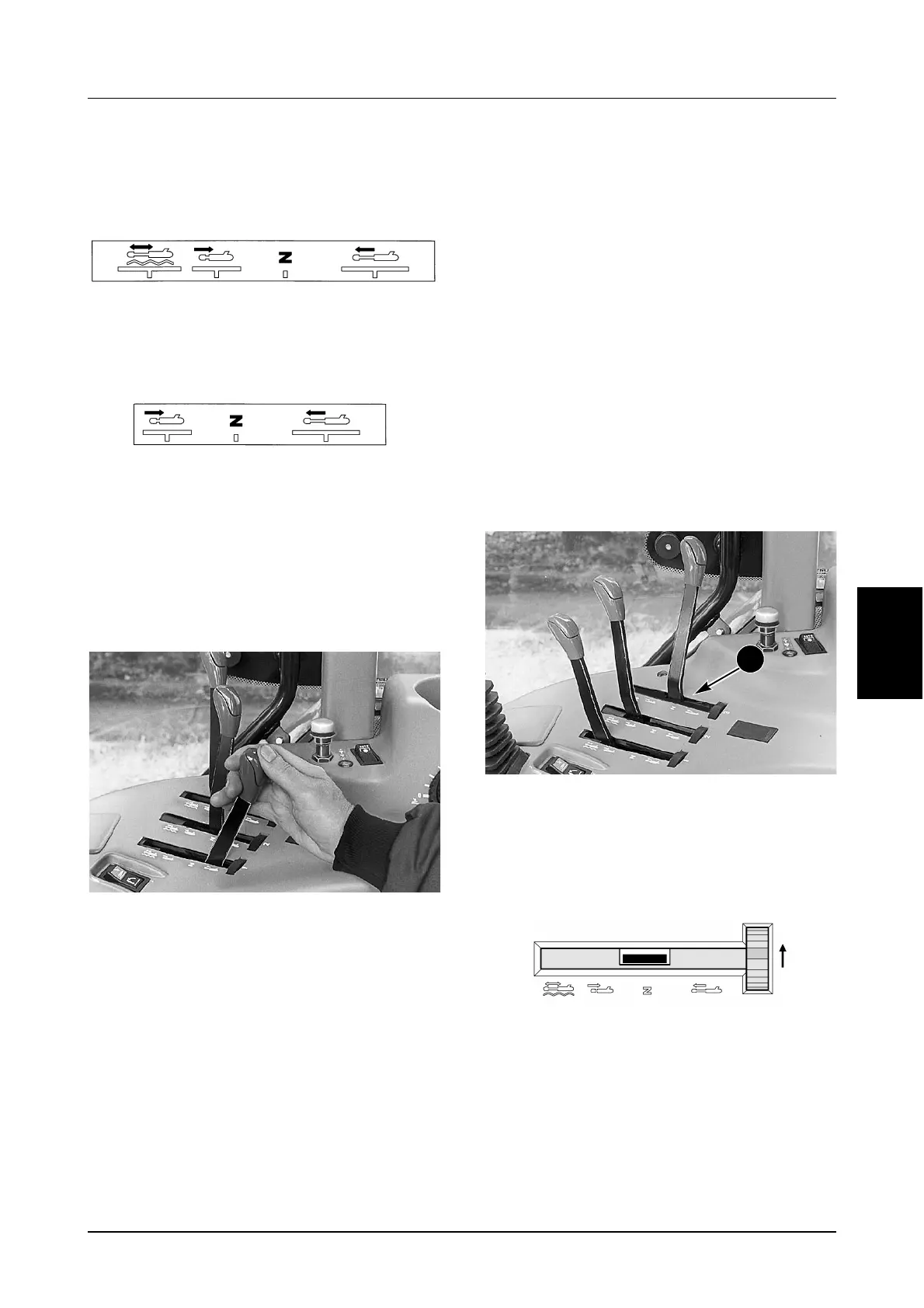

REMOTE HYDRAULICS OPERATION
There can be up to three remote control levers,
each having four positions:
OM1075
The optional fourth remote is operated by a 3
position rocker switch.
OM1075
Operation Using Control Levers
The speed of movement of auxiliary equipment is
determined by the distance the lever is moved
from neutral and the position of the variable flow
control, see page 159 for complete instructions.
DR99G121
If the lever is moved fully rearward from neutral,
the equipment hydraulic cylinder(s) will extend
quickly. If the lever is moved rearward a short
distance from neutral, the equipment hydraulic
cylinder(s) will extend slowly.
If the lever is moved fully forward from neutral
(when float is locked out) the equipment
hydraulic cylinder(s) will retract quickly. If the
lever is moved a short distance forward from
neutral the equipment hydraulic cylinder(s) will
retract slowly.
NOTE: If there is too much restriction in the
implement cylinders or other attachments, the
restriction can cause a back pressure in the
remote valve which will cause the remote
lever on the console to return to neutral before
the cylinder has reached full stroke. If the
condition occurs, it will be necessary to
manually hold the lever in position until the
cylinder has reached full stroke. Continual
use of the remote valve in this condition
will cause the hydraulic oil to over heat and
possible damage to the hydraulic system. If
the condition occurs at regular intervals the
implement restriction should be corrected. It is
normal for the control lever to return to neutral
when the cylinders reach full stroke.
Neutral Lock
DR99G120
The remote hydraulic control levers can be locked
in the neutral position (1) to prevent moving the
remote valves. This can be done by moving the
valve control levers to the neutral position and
turning the lock control fully clockwise.
DI96N023
When used with equipment in the raised position,
the neutral lock provides a positive means of
preventing the accidental movement of the valve
control levers.
FLOAT NEUTRAL EXTENDRETRACT
NEUTRAL EXTENDRETRACT
1
