Operation
134

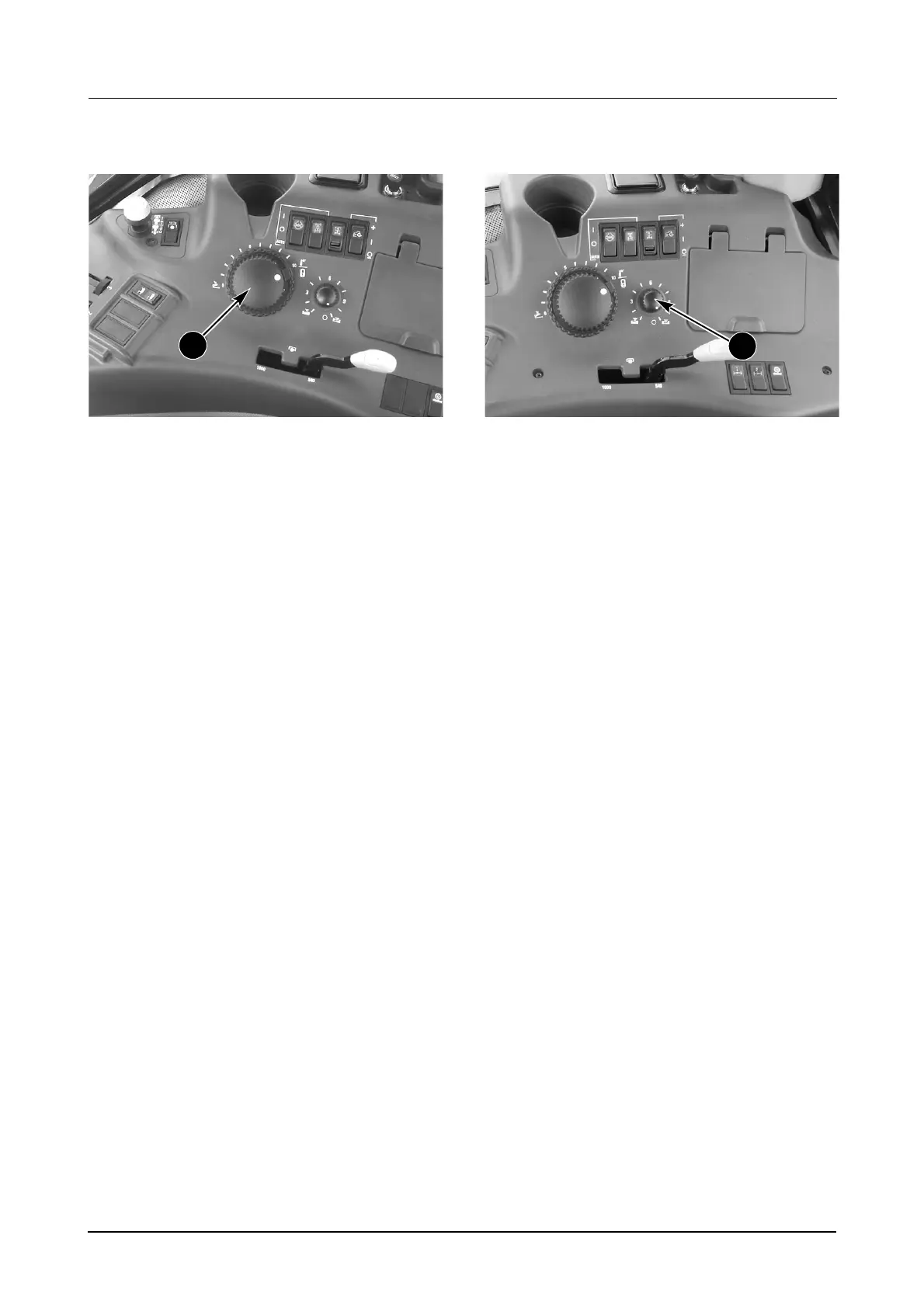

3. Position Control
MD05F037A
The control consists of an inner knob and an
outer ring. This control is used to;
A. Enable the Hitch System,
B. Set a “Bottom” limit,
C. Give precise control of the position of the
hitch,
D. Provide Hitch transport lock
OUTER RING - This is an adjustable mechanical
stop for the inner knob. The setting can be
bypassed with the push-button on the inner knob.
INNER KNOB - Used to precisely control the
position of the hitch. Turning the knob clockwise
will raise the hitch or counterclockwise will lower
the hitch.
Press the PUSH-BUTTON in on the side of the
knob, to bypass the “Bottom” limit without
changing the setting on the Outer Ring. The
PUSH -BUTTON is also used when the knob is
turned fully clockwise to lock the knob in the
TRANSPORT position.
4. Load Control
MD05F036A
This knob is used to set the load on the tractor or
implement depth. Turn the knob clockwise to
increase the load and implement depth. Turn the
knob counter-clockwise to reduce the load and
implement depth.
IMPORTANT: The knob MUST be turned fully
clockwise to the (O) off position to set the
Electronic Hitch System in the POSITION
CONTROL MODE.
The (O) position is used to prevent unwanted
hitch movement at light load or no hitch load,
when the tractor is moving at more than 0.8
km/h (0.5 mph).
IMPORTANT: The tractor must be moving in
order for the LOAD CONTROL to be
functional. Adjusting the LOAD CONTROL
knob to the lighter load settings of 1 to 5
while the tractor is stationary, may result in
significant hitch movement when the
tractor moves again.
