OPERATING THE INDEPENDENT FRONT SUSPENSION
(If Equipped)

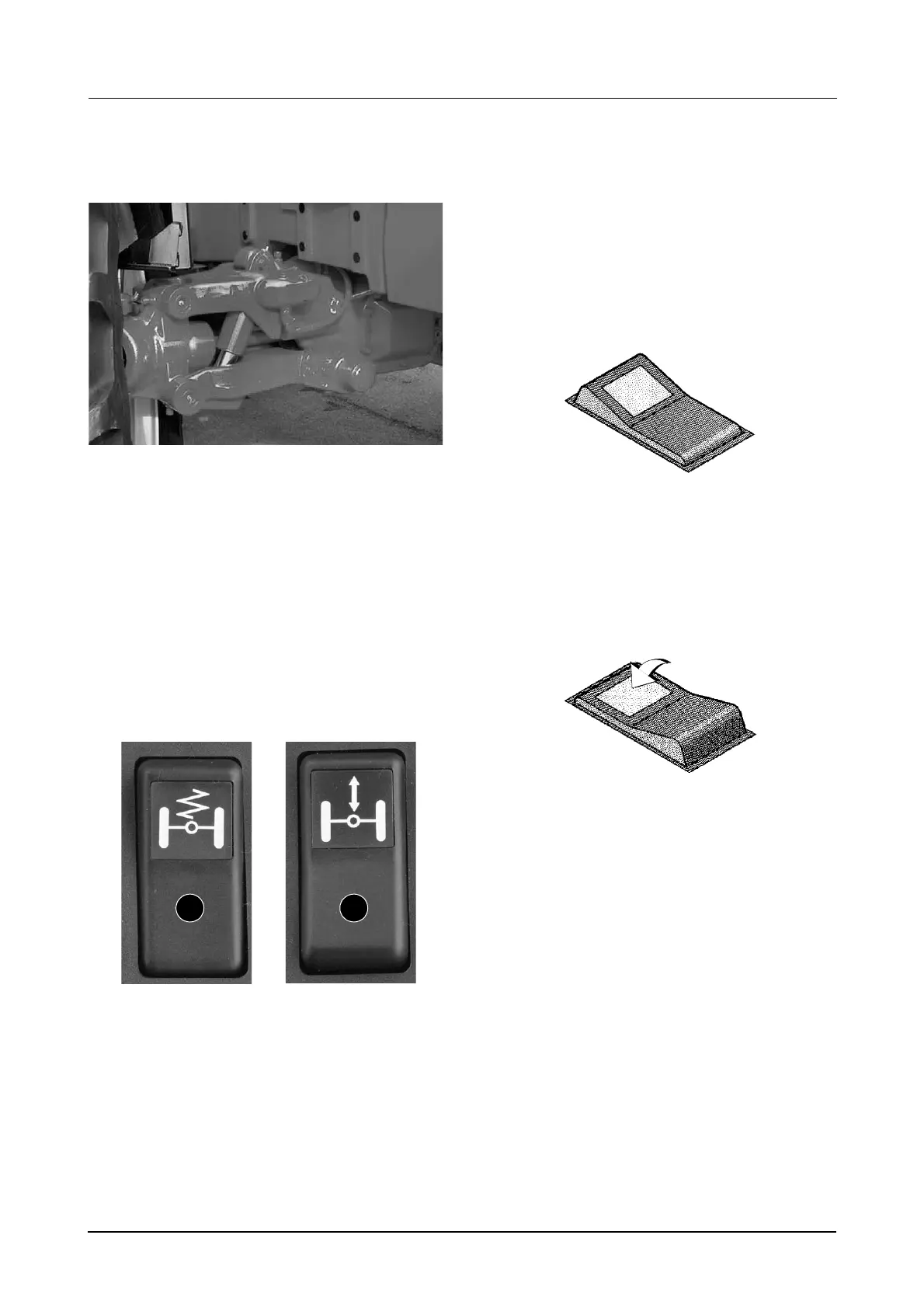

MD05M028
With Independent Front Suspension each wheel
acts independently for continuous contact on the
ground, to give improved ride comfort both in the
field or during road travel.
NOTE: Always turn the axle suspension mode OFF
when operating the tractor on inclines.
In addition, front axle ground clearance can be
manually adjusted to match working conditions at
the touch of a button.
Independent Front Suspension is operated with the
use of 2 rocker switches, a suspension mode
switch and a manual override switch.
MD04D001 & MD04D002
Suspension Mode Switch
Position 1 -
With Suspension Indicator Lamp NOT
illuminated
DS98K261
Axle suspension mode OFF. The axle will operate
as a conventional MFD axle.
Position 2 (Momentary)
DS98K259
To activate the axle suspension mode press the top
of the switch fully forward to position 2 (as shown
above) and then release. The switch will return to
position 1 and the indicator lamp in the switch will
illuminate.
Approximately 15 seconds after pressing the switch
the axle will rise to the mid-position of the total axle
range.
NOTE: If the switch is held in position 2 for more
than 10 seconds the calibration mode is activated
and the indicator lamp will flash. This is a dealer
function and is not to be performed by the operator.
To exit the calibration mode turn the key switch to
the off position to stop the engine.
1. SUSPENSION MODE SWITCH
2. MANUAL OVERRIDE SWITCH
1 2
